Meticulously manufacture, different for you.
Place of Origin: | China |
Brand Name: | Xinji |
Certification: | ISO, CFDA |
Model Number: | Dia 13.5mm-Dia 40mm |
Minimum Order Quantity: | 50000 pcs |
---|---|
Packaging Details: | Packed in strong carton,suitable for long distance ocean transportation. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 300 millions pcs per year |
Material: | Aluminum | Artwork: | 6 Colors |
---|---|---|---|
Product Name: | 20g CreamTube Packaging | Sealing Type: | Screw Cap |
Caps: | M9 | Thread: | Membrane |
Feature: | 100% Recyclable | ||
High Light: | aluminum tube cosmetic packaging,tube cosmetic packaging |

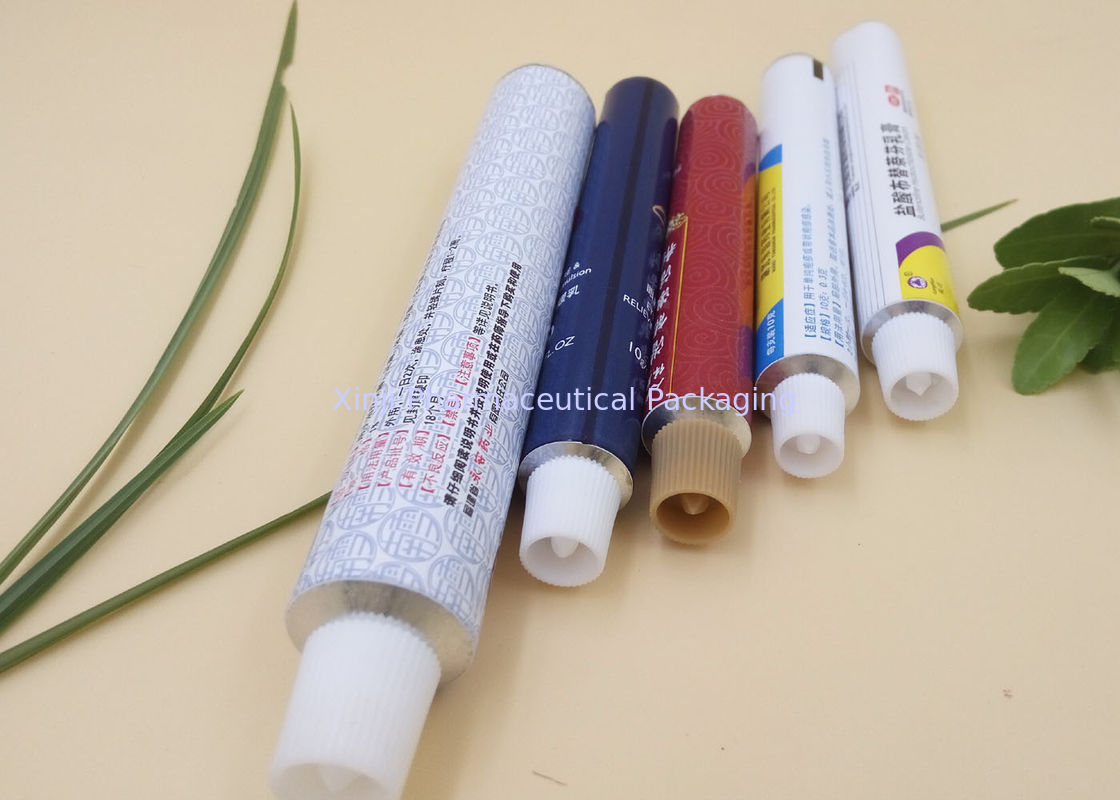

20g CreamTube Packaging , Aluminum Metal Squeeze Tubes
Our factory now has 8 production lines in total , including 3 European lines (2 from PSG and 1 from Technopack) , with annual production capacity 300 million aluminum tubes. We are the TOP3 manufacturer in Collapsible Aluminum Tube filed in China.
The product is widely used in medicine, cosmetics, food, adhesive, hair cream packaging etc.
We have Chinese GMP for pharmaceutical packaging. Our product export to most countries of Middle East & South America as well as Japan, Russia, etc.
Standard Nozzle:
A. Plastic on-sert nozzle No.2 tube
B. Metric (V thread) open nozzle
C. Metric (V thread) sealed nozzle (membrane)
D. Extended Plastic Nozzle
E. Extended Nozzle
F. Plastic on-sert nozzle
British Standard of Aluminum Collapsible Tube BS2006-1984 | |||||||||
Sheet3 Size Standard | |||||||||
Diameter | Tolerance of Diameter | Length | Tolerance of Length | Nozzle | Tube Wall Thickness | Shoulder Thickness | |||
Max | Min | Max | Min | Shoulder Angle Standard | |||||
mm | mm | mm | mm | mm | mm | mm | mm | ||
10 | ±0.1 | 60 | ±0.5 | 60 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ |
13.5 | 75 | 60 or 70 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ | ||
16 | 100 | 80 | 0.12 | 0.08 | 0.65 | 0.35 | 120℃ or 126℃ | ||
19 | 110 | 95 | 0.13 | 0.1 | 0.65 | 0.35 | 120℃ or 126℃ | ||
22 | 130 | 95 or 115 | 0.14 | 0.1 | 0.65 | 0.35 | |||
25 | 150 | 95 or 115 | 0.14 | 0.1 | 0.7 | 0.4 | No Standard | ||
28 | 165 | ±1.0 | 115 | 0.15 | 0.11 | 0.75 | 0.45 | ||
30 | 165 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
32 | 170 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
35 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
38 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
40 | 200 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
45 | ±0.25 | 200 | 115 or 135 | 0.18 | 0.12 | 0.9 | 0.5 |
Application of Aluminum Collapsible Tube | |
Product Type | Contents |
Health caring | eye cream,body lotion,shaving cream,foot cream,toothpaste,hand cream |
Medicine | unguent,medical cream,gel |
Adhesive Glue | super glue,rubber cement,leather adhesive,resin,wood glue,epoxy glue,metal glue,sealant |
Industrial Grease | brake grease,silicone-based grease,sewing machine lubricating oil,gear grease,red rubber grease,lithium-based grease |
Cosmetics | eyeliner,lip balm,hair dressing cream,nail beauty products,mascara |
