Meticulously manufacture, different for you.
Place of Origin: | China |
Brand Name: | Xinji |
Certification: | ISO, CFDA |
Model Number: | Dia 13.5mm-Dia 40mm |
Minimum Order Quantity: | 50000 pcs |
---|---|
Packaging Details: | Packed in strong carton,suitable for long distance ocean transportation. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 300 millions pcs per year |
Material: | Aluminum | Product Name: | Aluminum Tube |
---|---|---|---|
Caps: | M9 | Length: | Customized |
Diameter: | 19 | Thread: | Membrane |
Place Of Origin: | Ezhou Hubei, China | ||
Highlight: | aluminum tube cosmetic packaging,tube cosmetic packaging |

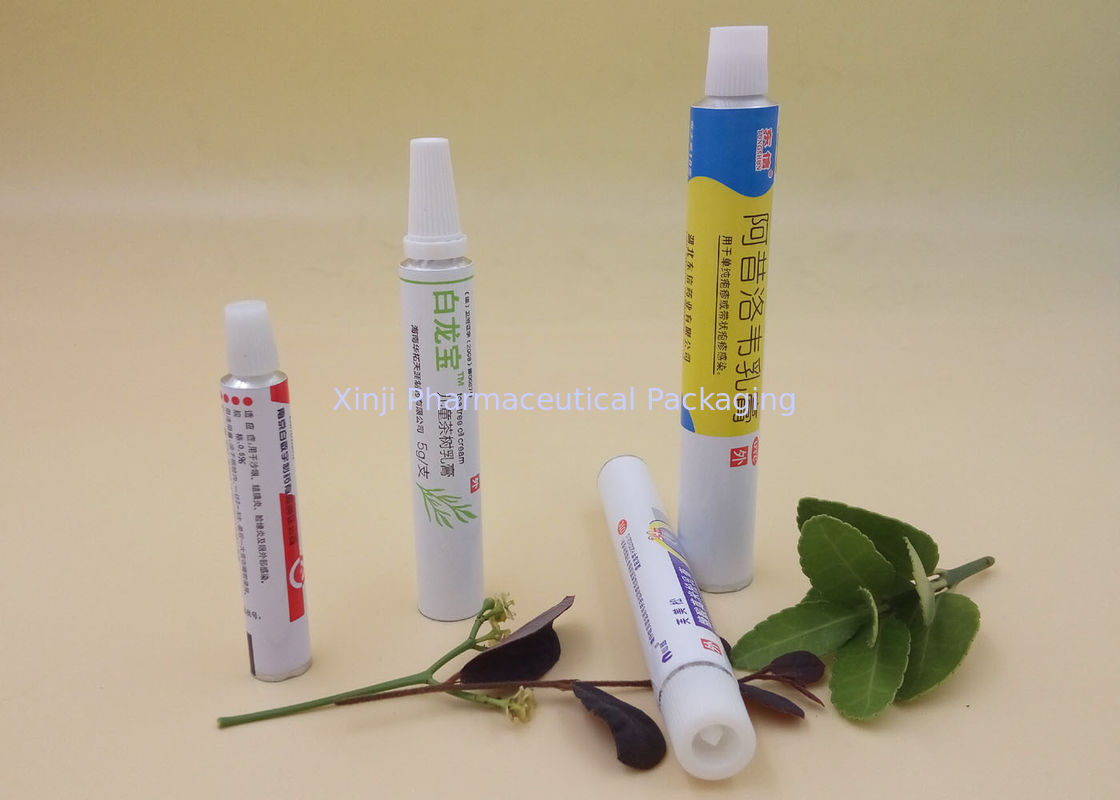

Aluminum Tube , Metal Squeeze Tubes , For Pharmaceutical Ointment
Our factory now has 8 production lines in total , including 3 European lines (2 from PSG and 1 from Technopack) , with annual production capacity 300 million aluminum tubes. We are the TOP3 manufacturer in Aluminum Collapsible Tube filed in China.
British Standard of Aluminum Collapsible Tube BS2006-1984 | |||||||||
Sheet3 Size Standard | |||||||||
Diameter | Tolerance of Diameter | Length | Tolerance of Length | Nozzle | Tube Wall Thickness | Shoulder Thickness | |||
Max | Min | Max | Min | Shoulder Angle Standard | |||||
mm | mm | mm | mm | mm | mm | mm | mm | ||
10 | ±0.1 | 60 | ±0.5 | 60 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ |
13.5 | 75 | 60 or 70 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ | ||
16 | 100 | 80 | 0.12 | 0.08 | 0.65 | 0.35 | 120℃ or 126℃ | ||
19 | 110 | 95 | 0.13 | 0.1 | 0.65 | 0.35 | 120℃ or 126℃ | ||
22 | 130 | 95 or 115 | 0.14 | 0.1 | 0.65 | 0.35 | |||
25 | 150 | 95 or 115 | 0.14 | 0.1 | 0.7 | 0.4 | No Standard | ||
28 | 165 | ±1.0 | 115 | 0.15 | 0.11 | 0.75 | 0.45 | ||
30 | 165 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
32 | 170 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
35 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
38 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
40 | 200 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
45 | ±0.25 | 200 | 115 or 135 | 0.18 | 0.12 | 0.9 | 0.5 |
Our Service:
We can deliver free samples if you need. Please feel free to contact us or email us.
It would be our great honor to send you some free samples for your quality test.
We promise "0" risk for you doing business with us, we will take 100% responsibility for our goods to avoid any lost for you. You can chose swap goods or expect a refund.
1. Once you get the package, please let us know your idea on our goods, packaging and service.
2. Any problems will be answered within 24hours
3. If you need us to improve the service, please feel free to contact us.
Size & Volume | |||||
Diameter (mm) |
13.5 | 16 | 19 | 22 | 25 |
Length (mm) |
55 ↓ 100 |
55 ↓ 105 |
80 ↓ 130 |
85 ↓ 140 |
95 ↓ 160 |
Content (mm) |
4.5 ↓ 7 |
7 ↓ 12 |
14 ↓ 24 |
20 ↓ 35 |
30 ↓ 55 |
Advantages:
1. Factory. Top 3 manfuacturer of aluminum collapsible tubes in whole China, with annual capacity of 300 million pcs.
2. Experience. Nearly 40 years' accumulated specialized producing experience in this field.
3. Production Lines. Full automatic production lines from Germany and Italy.
4. Quality Control. All select superior raw material, with mature producing technology and high standard quality control and inspection system, we can greatly guarantee the quality.
5. Price. Factory direct sells, offering you the most competitive price!
6. Service. Quick response on quotation, sample and after-service.
