Meticulously manufacture, different for you.
Place of Origin: | China |
Brand Name: | Xinji |
Certification: | ISO, CFDA |
Model Number: | Dia 13.5mm - 40mm |
Minimum Order Quantity: | 50000 pcs |
---|---|
Packaging Details: | Packed in strong carton,suitable for long distance ocean transportation. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 300 millions pcs per year |
Material: | Aluminum 99.7% | Color: | Up To 6 Colors |
---|---|---|---|
Name: | Soft Aluminum Tubes | Diameter: | 13.5mm~40mm |
Application: | Ointment Packaging Tubes | Factory Direct: | YES |
High Light: | aluminum squeeze tubes,empty toothpaste tubes |

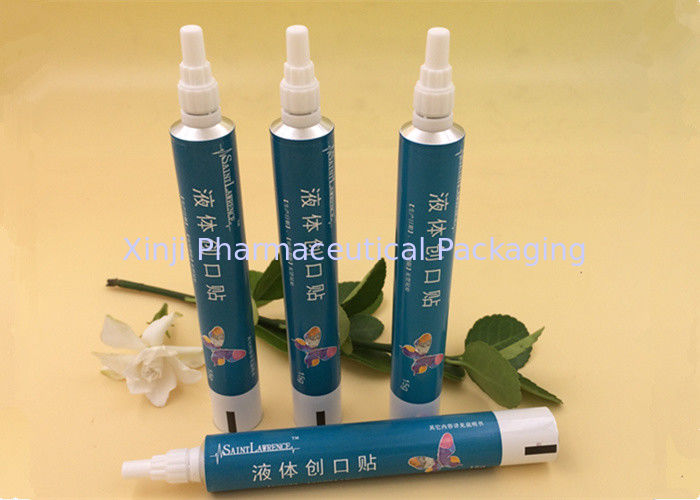

Dia 16 - 25mm of Colorful Printing Aluminium Collapsible Tubes Packaging
Description:
Hubei Xinji Pharmaceutical Packaging Co.,Ltd located in China’s central city of Wuhan city circle, established in 1981 with nearly 40 years experience in aluminum collapsible tube manufacturing.
British Standard of Aluminum Collapsible Tube BS2006-1984 | |||||||||
Sheet3 Size Standard | |||||||||
Diameter |
Tolerance of Diameter | Length |
Tolerance of Length | Nozzle |
Tube Wall Thickness | Shoulder Thickness | |||
Max | Min | Max | Min | Shoulder Angle Standard | |||||
mm | mm | mm | mm | mm | mm | mm | mm | ||
10 | ±0.1 |
60 | ±0.5 |
60 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ |
13.5 | 75 | 60 or 70 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ | ||
16 | 100 | 80 | 0.12 | 0.08 | 0.65 | 0.35 | 120℃ or 126℃ | ||
19 | 110 | 95 | 0.13 | 0.1 | 0.65 | 0.35 | 120℃ or 126℃ | ||
22 | 130 | 95 or 115 | 0.14 | 0.1 | 0.65 | 0.35 | |||
25 | 150 | 95 or 115 | 0.14 | 0.1 | 0.7 | 0.4 | No Standard | ||
28 | 165 | ±1.0 |
115 | 0.15 | 0.11 | 0.75 | 0.45 | ||
30 | 165 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
32 | 170 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
35 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
38 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
40 | 200 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
45 | ±0.25 | 200 | 115 or 135 | 0.18 | 0.12 | 0.9 | 0.5 | ||
The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle |
Diameter(mm) | Length suggest(mm) |
13.5mm | 50-90mm |
16mm | 80-100mm |
19mm | 80-130mm |
22mm | 80-130mm |
25mm | 100-140mm |
28mm | 130-175mm |
30mm | 140-175mm |
32mm | 150-190mm |
35mm | 160-200mm |
38mm | 160-200mm |
40mm | 160-200mm |
Our Service:
We can deliver free samples if you need. Please feel free to contact us or email us.
It would be our great honor to send you some free samples for your quality test.
We promise "0" risk for you doing business with us, we will take 100% responsibility for our goods to avoid any lost for you. You can chose swap goods or expect a refund.
1. Once you get the package, please let us know your idea on our goods, packaging and service.
2. Any problems will be answered within 24hours
3. If you need us to improve the service, please feel free to contact us.
Quality control department is the special independent unit to ensure that meet customer needs in terms of quality, adopt international testing standards and methods, continue to upgrade testing equipment to maintain the accuracy of test results, establish a zero-defect quality management philosophy: identification of customer needs correctly, to ensure adequate staff training, new product development, cjamhe control and product testing and quality.
FAQ:
1. Are you trading company or manufacturer?
We are the 3rd largest manufacturer in this industry in China.
2. How to get samples?
Samples without customized printing are free, but do not pay the cost of freight.
3. How long is your delivery time?
Generally it is 30 days after we sign the contract, it is according to quantity.
4. What's your payment term?
T/T, L/C, Western Union, etc.
Company culture:
Business philosophy: Meticulously manufacture, different for you.
Quality policy: Make every aluminum tube trustworthy
Xinji core values: love, responsibility, change, happy
