Meticulously manufacture, different for you.
Place of Origin: | China |
Brand Name: | Xinji |
Certification: | ISO, CFDA |
Model Number: | Dia 13.5mm~40mm |
Minimum Order Quantity: | 50000 pcs |
---|---|
Packaging Details: | Packed in strong carton,suitable for long distance ocean transportation. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 300 millions pcs per year |
Material: | 99.7% Aluminum | Name: | Aluminum Collapsible Tube |
---|---|---|---|
Color: | 6 Colors | Origin: | China |
Volume: | 3ml To 200ml | Cap Type: | HPPE |
High Light: | empty squeeze tubes,lotion squeeze tubes |

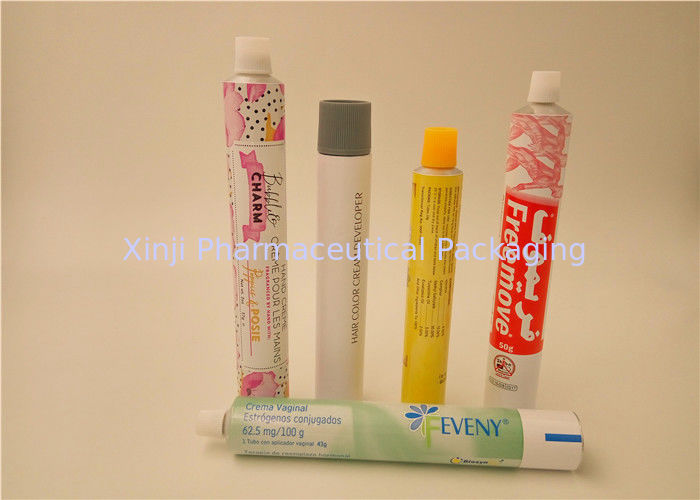

Skin Dermatological Aluminum Squeeze Tubes For Cosmetic / Pharma
Description
1. CAP: Colour - white / red / blue, Type - Conual Piercer, Material: HPPE.
2. Aluminum Blamks: Aluminum>99.7% pure.
3. Internal Lacquer: Type-Expoxy-Phenolic Resin.
4. External Base Coat: Type-Enamel;Colour-White.
5. Colour Ink: Suplier-Shanghai DIC.
6. Crimp sealant brand: PPG.
7. Manufacturing Environment: The construction of 100000-ton cleaning production packing workshop.
8. Equipment: Germany PSG fully automatic production line.
9. The standard of Inspection: BS2006-86 Aluminum collapsible tube for medicine ointment.
10. Closing: Under an air pressure of 0.2Mpa, no leakage.
11. Appearance: Integrity and clean.
12. Coating: The color matches the standard,no exposure and no tiny oil droplets.
13. Color printing: Clear and entirety, the overprint is in position.
14. Flexibility and adhesion: The lacquer did not split off and no crazing.
15. Package: Wholeness and clean.
British Standard of Aluminum Collapsible Tube BS2006-1984
Size Standard | |||||||||
Diameter |
Tolerance of Diameter | Length |
Tolerance of Length | Nozzle |
Tube Wall Thickness | Shoulder Thickness | |||
Max | Min | Max | Min | Shoulder Angle Standard | |||||
mm | mm | mm | mm | mm | mm | mm | mm | ||
10 | ±0.1 |
60 | ±0.5 |
60 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ |
13.5 | 75 | 60 or 70 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ | ||
16 | 100 | 80 | 0.12 | 0.08 | 0.65 | 0.35 | 120℃ or 126℃ | ||
19 | 110 | 95 | 0.13 | 0.1 | 0.65 | 0.35 | 120℃ or 126℃ | ||
22 | 130 | 95 or 115 | 0.14 | 0.1 | 0.65 | 0.35 | |||
25 | 150 | 95 or 115 | 0.14 | 0.1 | 0.7 | 0.4 | No Standard | ||
28 | 165 | ±1.0 |
115 | 0.15 | 0.11 | 0.75 | 0.45 | ||
30 | 165 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
32 | 170 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
35 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
38 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
40 | 200 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
45 | ±0.25 | 200 | 115 or 135 | 0.18 | 0.12 | 0.9 | 0.5 | ||
The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle |
Our advantages:
Our Service:
We can deliver free samples if you need. Please feel free to contact us or email us.
It would be our great honor to send you some free samples for your quality test.
We promise "0" risk for you doing business with us, we will take 100% responsibility for our goods to avoid any lost for you. You can chose swap goods or expect a refund.
1. Once you get the package, please let us know your idea on our goods, packaging and service.
2. Any problems will be answered within 24hours.
3. If you need us to improve the service, please feel free to contact us.
Contact Person: Ms. Echo
Tel: 0086-15871390717
