Hubei Xinji Pharmaceutical Packaging Co.,Ltd
Meticulously manufacture, different for you.
Meticulously manufacture, different for you.
 |
| Place of Origin: | China |
| Brand Name: | Xinji |
| Certification: | ISO, CFDA |
| Model Number: | Dia.13.5mm~Dia40mm |
| Minimum Order Quantity: | 50000 pcs |
|---|---|
| Packaging Details: | Packed in strong carton,suitable for long distance ocean transportation. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 300 millions pcs per year |
| Diameter: | 19 | Volume: | 15g |
|---|---|---|---|
| Thread: | M9 | Artwork: | 6 Colors |
| Name: | Pharmaceutical Packaging Tube For Dermatologie Cream | Length: | 120mm |
| Place Of Origin: | Ezhou Hubei, China | ||
| High Light: | empty squeeze tubes,aluminum ointment tubes |
||

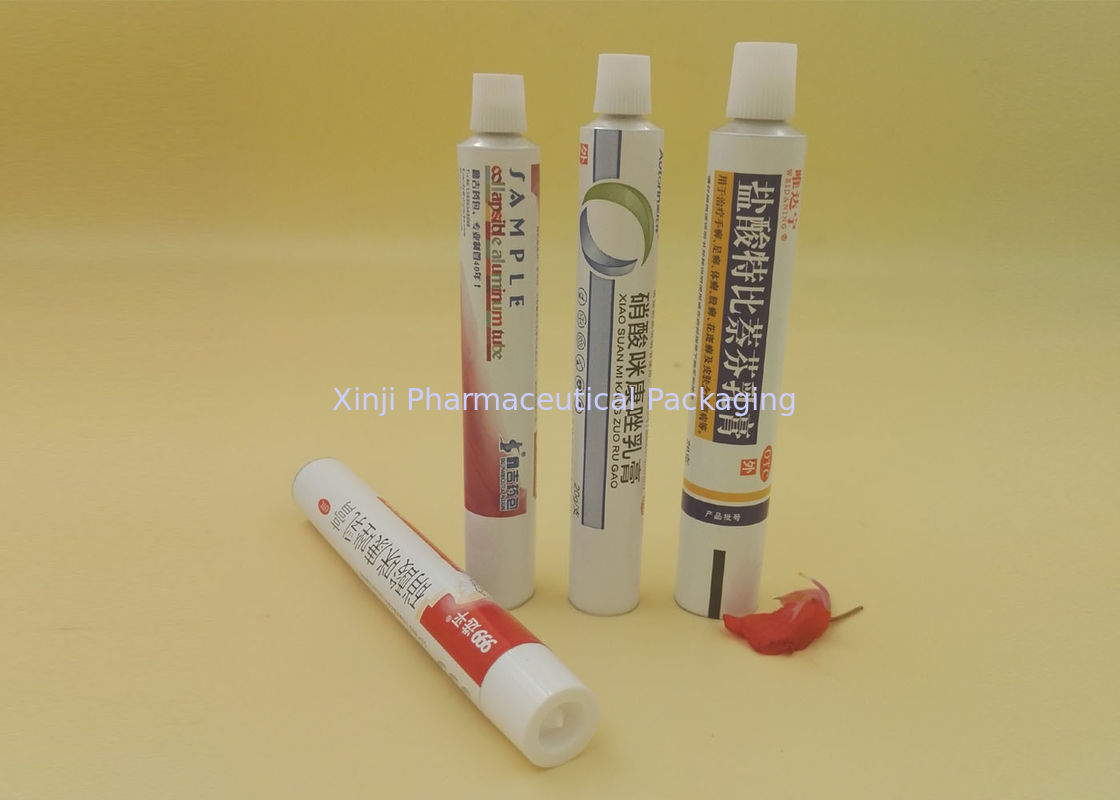

Pharmaceutical Packaging Tube For Dermatologie Cream, Aluminum Squeeze Tubes
Quick Details:
| Alumminum collapsible Tube Specification sheet | |||
| Tube size(diameter) | Standard(Length) | Length Range | Estimated Capacity |
| 11mm | 55mm | 55-65mm | 2-5ml |
| 13.5mm | 70mm | 70-80mm | 5-12ml |
| 16mm | 100mm | 100ml-115ml | 8-11ml |
| 19mm | 110mm | 110mm-120mm | 10-25ml |
| 25mm | could be designed | 110-200mm | 30-50ml |
| 30mm | 50-70ml | ||
| 32mm | 80-100ml | ||
| 38mm | 100-150ml | ||
| 40mm |
200-350ml |
||
| Size Standard | |||||||||
| Diameter | Tolerance of Diameter | Length | Tolerance of Length | Nozzle | Tube Wall Thickness | Shoulder Thickness | |||
| Max | Min | Max | Min | Shoulder Angle Standard | |||||
| mm | mm | mm | mm | mm | mm | mm | mm | ||
| 10 | ±0.1 | 60 | ±0.5 | 60 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ |
| 13.5 | 75 | 60 or 70 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ | ||
| 16 | 100 | 80 | 0.12 | 0.08 | 0.65 | 0.35 | 120℃ or 126℃ | ||
| 19 | 110 | 95 | 0.13 | 0.1 | 0.65 | 0.35 | 120℃ or 126℃ | ||
| 22 | 130 | 95 or 115 | 0.14 | 0.1 | 0.65 | 0.35 | |||
| 25 | 150 | 95 or 115 | 0.14 | 0.1 | 0.7 | 0.4 | No Standard | ||
| 28 | 165 | ±1.0 | 115 | 0.15 | 0.11 | 0.75 | 0.45 | ||
| 30 | 165 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 32 | 170 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 35 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 38 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 40 | 200 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 45 | ±0.25 | 200 | 115 or 135 | 0.18 | 0.12 | 0.9 | 0.5 | ||
Our quality system
*ISO9001certification
*Drugs packaging materials and containers. Registration Permit by CFDA
(100 thousand dgree purified workshop)
Why Choose us
1. More than 40 years experience in packaging design, develop and manufacture.
2. Strong R&D team, customized-products are highly welcomed.
3. 100% QC inspection before delivery, high quality with very competitive price.
4. 90% of our products are exporting to oversea market, top service and timely delivery.
Establish a zero-defect quality management philosophy: identification of customer needs correctly, to ensure adequate staff training, new product development, cjamhe control and product testing and quality.
