Home ProductsAluminum Squeeze Tubes

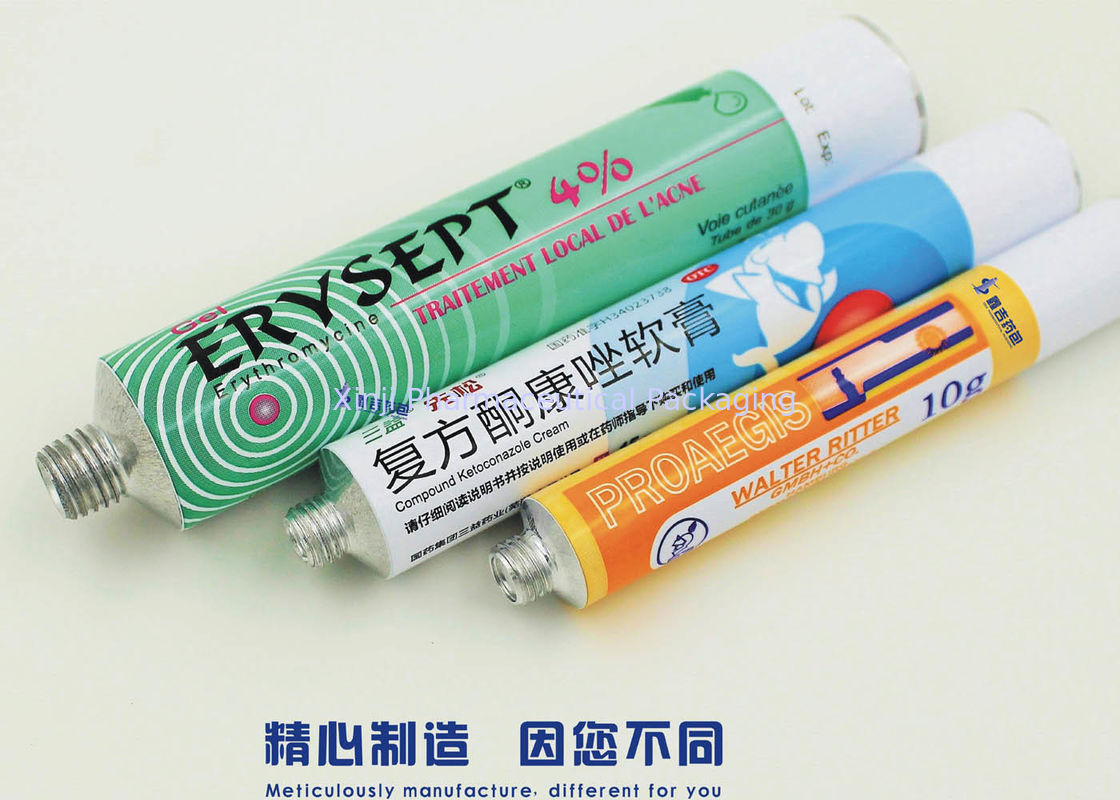

Different Volume Packaging Aluminum Squeeze Tubes 6 Color Customized Artwork

Different Volume Packaging Aluminum Squeeze Tubes 6 Color Customized Artwork

Different Volume Packaging Aluminum Squeeze Tubes 6 Color Customized Artwork

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CFDA
Model Number: Dia. 13.5mm - Dia. 40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 millions pcs per year
Contact Now
Detailed Product Description
Material: 99.7% Purity Aluminum Origin: China (Mainland)
Color Of Printing: Not More Than 6 Colors Artwork: Customized
Name: Soft Squeeze Aluminum Tube Application: Cosmetics, Medicine, Food, Pait, Etc.
High Light:

empty squeeze tubes

,

lotion squeeze tubes

Different Volume Packaging Aluminum Tube , Aluminum Squeeze Tubes , Packaging Tubes



quick detail



1. CAP:Colour-white/red/blue;Type-Conual Piercer;material-HPPE.

2. Aluminum Blamks:Aluminum>99.7% pure.

3. Internal Lacquer:Type-Expoxy-Phenolic Resin.

4. External Base Coat:Type-Enamel;Colour-White.

5. Colour Ink:Suplier-Shanghai DIC.

6. Crimp sealant brand:PPG.

7. Manufacturing Environment:The construction of 100000-ton cleaning production packing workshop.

8. The standard of Inspection:BS2006-86 Aluminum tube for medicine ointment.





Description:



1. Shapes from round, oval to flat shape;



2. Diameters from 13.5mm to 40mm;



4. Capacities from 3ml to 300ml;



5. Custom length of tube body (adjusted within the range of tube capacity);



6. Decorations up to six-color offset printing, six color silkscreen printing, gravure printing and hot- stamping;



7. Colors from transparent, white, pearlized, to colored;



8. Finish in shiny matte and gloss;



9. Caps in screw cap, screw-on flip top, snap-on flip top and snap-on positioned flip top matched with custom colors and shapes.





British Standard of Aluminum Collapsible Tube        BS2006-1984
Sheet3 Size Standard

Diameter
Tolerance of Diameter
Length
Tolerance of Length
Nozzle
Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm   mm mm mm mm
10




±0.1
60


±0.5
60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0
115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40   200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5
The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle



Standard Nozzle:



A. Plastic on-sert nozzle No.2 tube

B. Metric (V thread) open nozzle

C. Metric (V thread) sealed nozzle (membrane)

D. Extended Plastic Nozzle

E. Extended Nozzle

F. Plastic on-sert nozzle
