Meticulously manufacture, different for you.
Place of Origin: | China |
Brand Name: | Xinji |
Certification: | ISO, CDFA |
Model Number: | Dia13.5mm-40mm |
Minimum Order Quantity: | 50000 pcs |
---|---|
Packaging Details: | box, carton and pallet; or other special packing as per your requirement. |
Delivery Time: | within 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 300 million pcs per year |
Material: | 99.7% Purity Aluminum | Diameter: | 13.5mm-40mm |
---|---|---|---|
Artwork: | Customized | Nozzles: | Open, Elongated, Sealed |
Capacity: | 3 - 120ml | Name: | Gule Aluminum Tube |
High Light: | squeeze tube containers,metal toothpaste tubes |

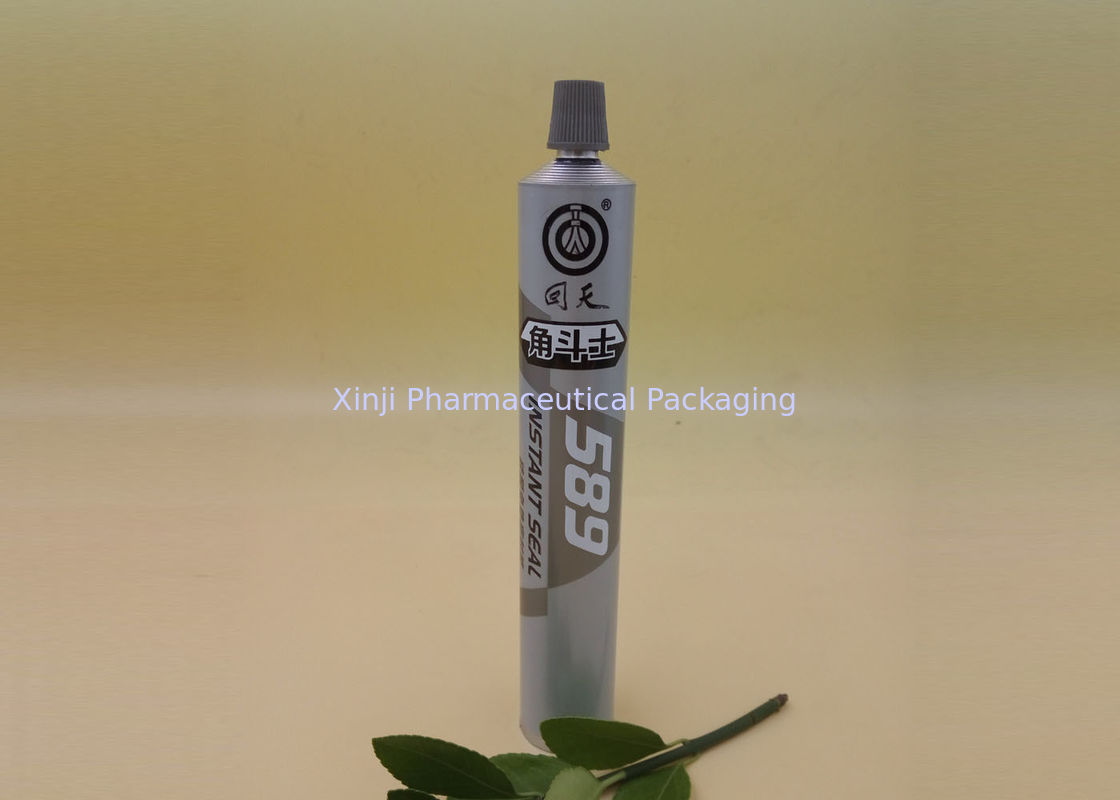

Industrial Flexible Packaging Adhesive Tube , Soft Aluminum Tubes With Screw Cap
We are the 3rd largest manufacturer of aluminum collapsible tube industry. Our tube is made of good quality aluminum material with advanced printing machine in a GMP workshop. These tubes are widely used for pharmaceutical ointment/cream packing, and also cosmetic packing, such as hair dying cream, hair bleaching cream, etc.
British Standard of Aluminum Collapsible Tube BS2006-1984 | |||||||||
Sheet3 Size Standard | |||||||||
Diameter |
Tolerance of Diameter | Length |
Tolerance of Length | Nozzle |
Tube Wall Thickness | Shoulder Thickness | |||
Max | Min | Max | Min | Shoulder Angle Standard | |||||
mm | mm | mm | mm | mm | mm | mm | mm | ||
10 | ±0.1 |
60 | ±0.5 |
60 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ |
13.5 | 75 | 60 or 70 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ | ||
16 | 100 | 80 | 0.12 | 0.08 | 0.65 | 0.35 | 120℃ or 126℃ | ||
19 | 110 | 95 | 0.13 | 0.1 | 0.65 | 0.35 | 120℃ or 126℃ | ||
22 | 130 | 95 or 115 | 0.14 | 0.1 | 0.65 | 0.35 | |||
25 | 150 | 95 or 115 | 0.14 | 0.1 | 0.7 | 0.4 | No Standard | ||
28 | 165 | ±1.0 |
115 | 0.15 | 0.11 | 0.75 | 0.45 | ||
30 | 165 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
32 | 170 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
35 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
38 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
40 | 200 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
45 | ±0.25 | 200 | 115 or 135 | 0.18 | 0.12 | 0.9 | 0.5 | ||
The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle |
Our advantages:
Size & Volume | |||||
Diameter (mm) |
13.5 | 16 | 19 | 22 | 25 |
Length (mm) |
55 ↓ 100 |
55 ↓ 105 |
80 ↓ 130 |
85 ↓ 140 |
95 ↓ 160 |
Content (mm) |
4.5 ↓ 7 |
7 ↓ 12 |
14 ↓ 24 |
20 ↓ 35 |
30 ↓ 55 |
Our quality system
ISO9001certification
Drugs packaging materials and containers. Registration Permit by CFDA
(100 thousand dgree purified workshop)
In the production of the collapsible, It's almost 500 degrees high temperature sterilizing.
Our workshops were built in according to the construction requirements of GMP in pharmaceutical production. Our factory use clean central-station air handing units from internal coating to packaging workshop to ensure our production environment reach 100n thousand grade standard.
The compressed air after strict purification treatment fully meet the production conditions
of direct contact with pharmaceutical packaging materials.
