Hubei Xinji Pharmaceutical Packaging Co.,Ltd
Meticulously manufacture, different for you.
Meticulously manufacture, different for you.
 |
| Place of Origin: | China |
| Brand Name: | Xinji |
| Certification: | ISO, CFDA |
| Model Number: | Dia.13.5mm~Dia40mm |
| Minimum Order Quantity: | 50000 pcs |
|---|---|
| Packaging Details: | Packed in strong carton,suitable for long distance ocean transportation. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 300 millions pcs per year |
| Diameter: | 22 | Volume: | 25g |
|---|---|---|---|
| Thread: | M9 With Membrane | Artwork: | Customized |
| Name: | Collapsible Aluminum Tube | Length: | 120mm |
| Material: | 99.7% Aluminum | ||
| High Light: | empty squeeze tubes,aluminum ointment tubes |
||

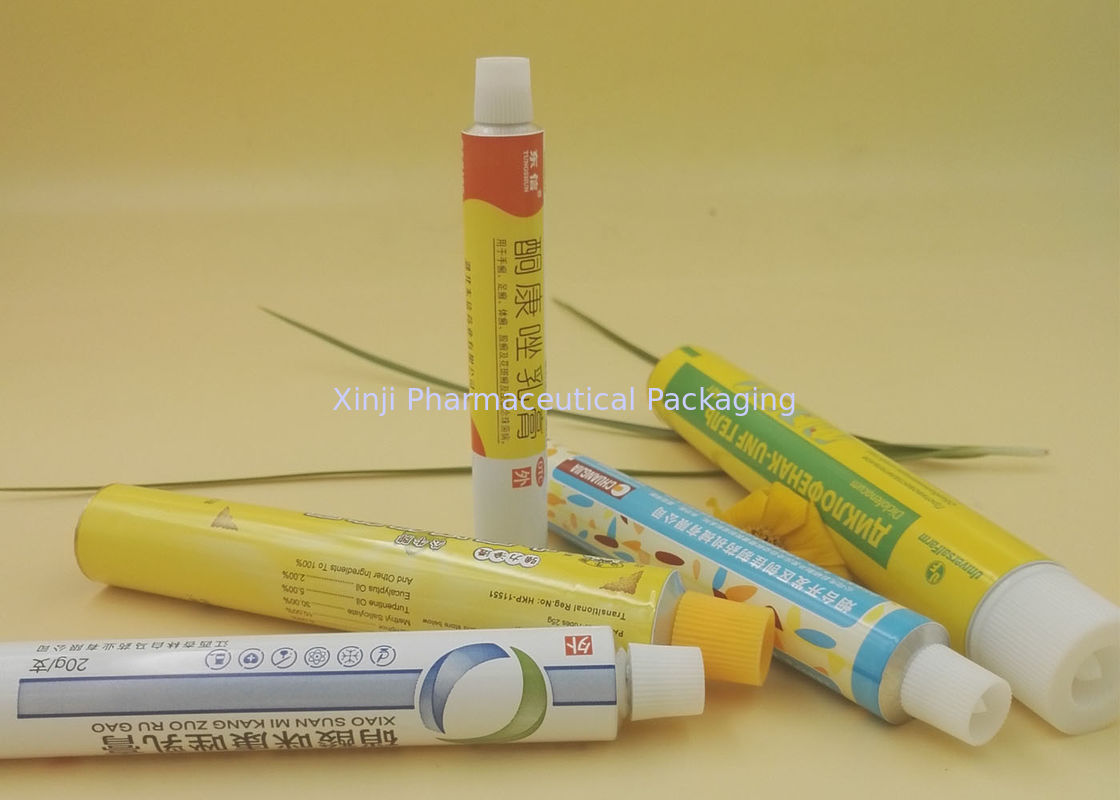

Collapsible Aluminum Tube , Aluminum Squeeze Tubes , 25g
Quick Details:
| Aluminum collapsible Tube Specification sheet | |
| Fill Volume | Suggested Tube Size(diameter&height) |
| 2-5ml | Dia11mm*H55mm, Dia13.5mm*H70mm, |
| 5-12ml | Dia13.5mm*H70mm, Dia16mm*H100mm, |
| 19-25ml | Dia19mm, 25mm, 30mm, 32mm, 38mm, the height could be designed as customer's request |
| 35-50ml | dia25mm |
| 60-80ml | dia30ml,32ml |
| 125-150ml | dia32ml,35ml |
| 150-200ml | dia35mm,40mm |
Remark: our alloy tube diameter range dia11mm to dia40mm and the height range 40mmH to 200mmH. Please be noted that the exact capacity dpending on product formulation and filling machinery. Test filling of actual product is suggested to determine the appropriate tube dimension | |
| Tube Size | Dia22mm* Length 120mm (length can customize) |
| Tube Capacity | 25 g |
| Aluminum Slug | Aluminum＞99.7% pure. |
| Color Ink | up to 6 colors printing (with your logo and design) |
| Internal Lacquer | Epoxy Phenolic Resin |
| External Base Coat | Type-Enamel; Color-White (can customize). |
| Latex at the End | Optional. |
| Nozzle | Thread nozzle |
| Cap | Color-white/red/blue/yellow; material-HPPE |
| Standard | BS2006 |
| Size & Volume | |||||
| Diameter (mm) | 13.5 | 16 | 19 | 22 | 25 |
| Length (mm) | 55 ↓ 100 | 55 ↓ 105 | 80 ↓ 130 | 85 ↓ 140 | 95 ↓ 160 |
| Content (mm) | 4.5 ↓ 7 | 7 ↓ 12 | 14 ↓ 24 | 20 ↓ 35 | 30 ↓ 55 |
Products details:
We introduced several sets of production lines from PSG of German and Technopack of Italy, and
equipped with technique of the mark one take on top sealed and tube shoulder, three take on internal
coating, six colors printing and the latex at the end, etc which can meet requirements of kinds tube
appearance for customers.
Why Choose us
1. More than 40 years experience in packaging design, develop and manufacture.
2. Strong R&D team, customized-products are highly welcomed.
3. We have nearly 40 years aluminum packaging material manufacture and printing experience.
4. ISO 9001/ Drugs packaging materials and containers. Registration Permit by CFDA. One hundred thousand stage purification workshop. Strong R&D team, customized-products. 100% QC inspection before delivery
5. 100% QC inspection before delivery, high quality with very competitive price.
6. 90% of our products are exporting to oversea market, top service and timely delivery.
