Hubei Xinji Pharmaceutical Packaging Co.,Ltd
Meticulously manufacture, different for you.
Meticulously manufacture, different for you.
 |
| Place of Origin: | China |
| Brand Name: | Xinji |
| Certification: | ISO, CFDA |
| Model Number: | Dia 13.5mm - 40mm |
| Minimum Order Quantity: | 50000 pcs |
|---|---|
| Packaging Details: | Packed in strong carton,suitable for long distance ocean transportation. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 300 millions pcs per year |
| Material: | Aluminum | Color: | Up To 6 Colors |
|---|---|---|---|
| Name: | Aluminum Soft Tube | Diameter: | 13.5mm~40mm |
| Usage: | Cosmetics, Medicine, Food, Etc. | Factory Direct: | YES |
| High Light: | empty toothpaste tubes,custom tube packaging |
||

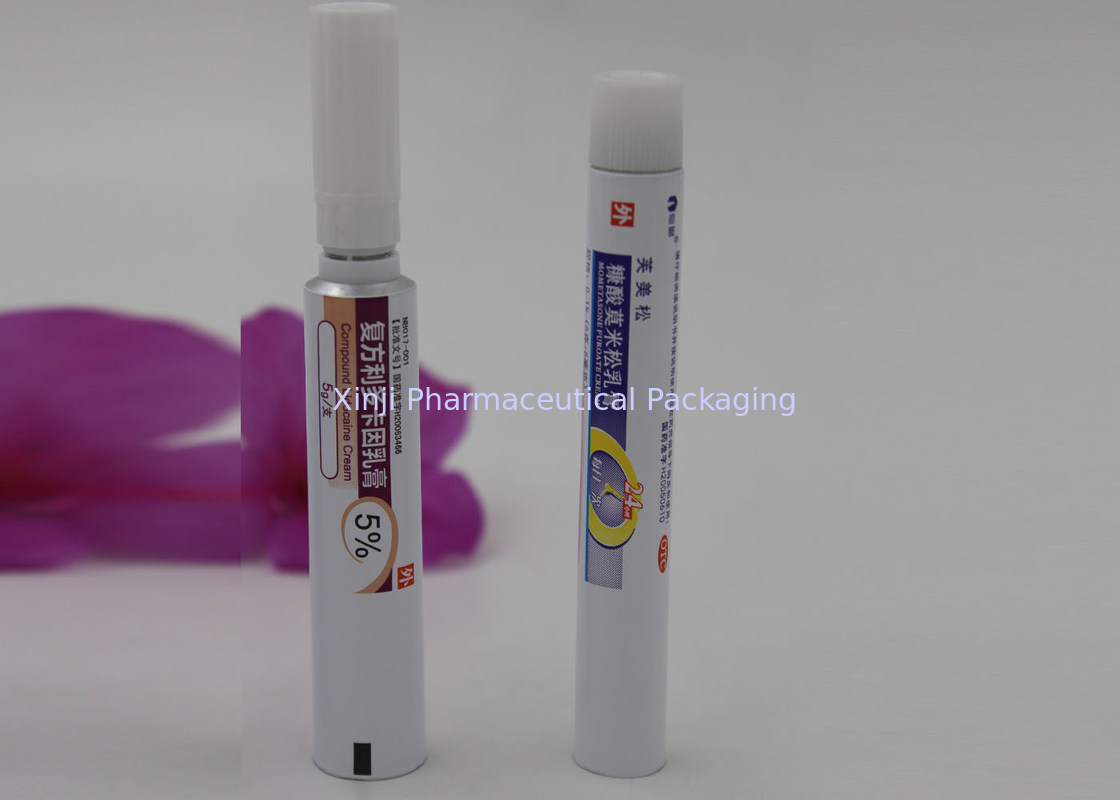

Needle Nose Eco Friendly Aluminum Collapsible Tubes Packaging With Long Electroplated Cap
Description:
| Useage | Pharmaceutical, cosmetic, food, adhesive packaging, etc. |
| CAP | Colour-white/red/blue; Type-Conual Piercer; material-HPPE. |
| Aluminum Blamks | Aluminum＞99.7% pure. |
| Internal Lacquer | Type-Expoxy-Phenolic Resin. |
| External Base Coat | Type-Enamel;Colour-White. |
| Colour Ink | Suplier-Shanghai DIC. |
| Crimp sealant brand | PPG. |
| Manufacturing Environment | The construction of 100000-ton cleaning production packing workshop. |
| The standard of Inspection | BS2006-86 Aluminum collapsible tube for medicine ointment. |
| Closing | Under an air pressure of 0.2Mpa,no leakage |
| Appearance | Integrity and clean |
| Coating | The color matches the standard,no exposure and no tiny oil droplets |
| Color printing | Clear and entirety,the overprint is in position |
| Flexibility and adhesion | The lacquer did not split off and no crazing |
| Chemicals | Wipe 30 times with acetone,the lacquer did not split off |
| Package | Wholeness and clean |
| British Standard of Aluminum Collapsible Tube BS2006-1984 | |||||||||
| Sheet3 Size Standard | |||||||||
Diameter |
Tolerance of Diameter | Length |
Tolerance of Length | Nozzle |
Tube Wall Thickness | Shoulder Thickness | |||
| Max | Min | Max | Min | Shoulder Angle Standard | |||||
| mm | mm | mm | mm | mm | mm | mm | mm | ||
| 10 | ±0.1 |
60 | ±0.5 |
60 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ |
| 13.5 | 75 | 60 or 70 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ | ||
| 16 | 100 | 80 | 0.12 | 0.08 | 0.65 | 0.35 | 120℃ or 126℃ | ||
| 19 | 110 | 95 | 0.13 | 0.1 | 0.65 | 0.35 | 120℃ or 126℃ | ||
| 22 | 130 | 95 or 115 | 0.14 | 0.1 | 0.65 | 0.35 | |||
| 25 | 150 | 95 or 115 | 0.14 | 0.1 | 0.7 | 0.4 | No Standard | ||
| 28 | 165 | ±1.0 |
115 | 0.15 | 0.11 | 0.75 | 0.45 | ||
| 30 | 165 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 32 | 170 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 35 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 38 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 40 | 200 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 45 | ±0.25 | 200 | 115 or 135 | 0.18 | 0.12 | 0.9 | 0.5 | ||
| The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle | |||||||||
Advantage of Aluminum Pharmaceutical Tube Packaging:
* TAMPER-PROOF: Makes adulteration impossible. Cannot be re-filled or re-used.
* PROTECTIVE: Contents remain well protected and free from contamination.
* ELEGANT: Attractive Possess a bright surface and lend themselves to trouble-free printing, this enhances shelf and customer appeal.
* NON-TOXIC & HYGIENIC: Non -Toxic, hygienic, non-absorbent, Impart no * LIGHTWEIGHT: Easy to handle. Reduces transport and handling cost.
* COMPLETE COLLAPSIBILITY: Highly ductile, ensures complete collapsibility.
* EASY AVAILABILITY: Aluminum Collapsible tubes are easily available.
* ECONOMICAL: Costs less than Tin or lead tubes. Needs no varnish.
* USER CONVENIENCE: Easy to use, unbreakable, easy to carry, light in weight, hygienic.
Printing:
Our Service:
We can deliver free samples if you need. Please feel free to contact us or email us.
It would be our great honor to send you some free samples for your quality test.
We promise "0" risk for you doing business with us, we will take 100% responsibility for our goods to avoid any lost for you. You can chose swap goods or expect a refund.
