| Place of Origin: | China |
| Brand Name: | Xinji |
| Certification: | ISO, CFDA |
| Model Number: | Dia 13.5mm - 40mm |
| Minimum Order Quantity: | 50000 pcs |
|---|---|
| Packaging Details: | Packed in strong carton,suitable for long distance ocean transportation. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 300 millions pcs per year |
| Raw Material: | 99.7% Pure Aluminum | Color: | Up To 6 Colors |
|---|---|---|---|
| Name: | Soft Aluminum Pack Tubes | Diameter: | 13.5mm~40mm |
| Application: | Cosmetics, Medicine, Food, Adhesive, Paiting Etc. | Factory Direct: | YES |
| High Light: | aluminum squeeze tubes,custom tube packaging |
||

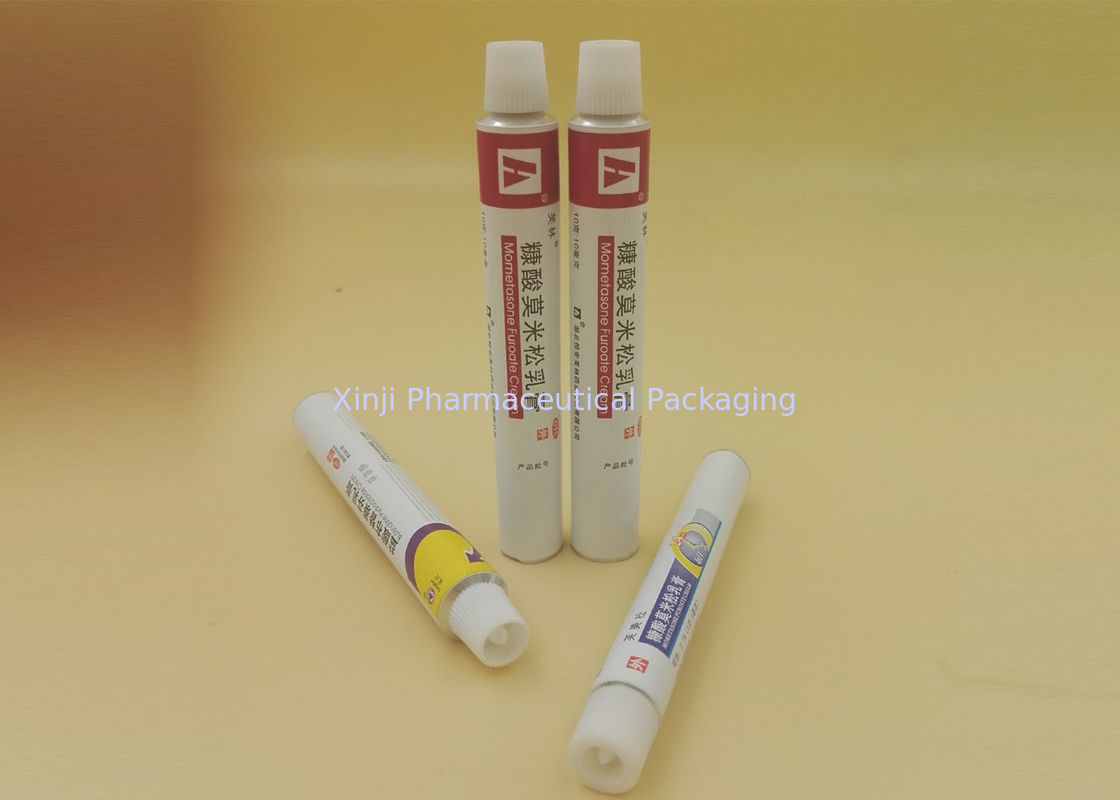

Large Capacity Packaging Tube , Coating Aluminum Collapsible Tubes For Adhesive / Cosmetic
Description:
Hubei Xinji Pharmaceutical Packaging Co.,Ltd located in China’s central city of Wuhan city circle, established in 1981 with nearly 40 years experience in aluminum collapsible tube manufacturing.
We are the 3rd largest manufacturer of aluminum collapsible tube industry. Our Aluminum collapsible tube is made of good quality aluminum material with advanced printing machine in a GMP workshop. These tubes are widely used for pharmaceutical ointment/cream packing, and also cosmetic packing, such as hair dying cream, hair bleaching cream, etc.
| Useage | Pharmaceutical, cosmetic, food, adhesive packaging, etc. |
| CAP | Colour-white/red/blue; Type-Conual Piercer; material-HPPE. |
| Aluminum Blamks | Aluminum＞99.7% pure. |
| Internal Lacquer | Type-Expoxy-Phenolic Resin. |
| External Base Coat | Type-Enamel;Colour-White. |
| Colour Ink | Suplier-Shanghai DIC. |
| Crimp sealant brand | PPG. |
| Manufacturing Environment | The construction of 100000-ton cleaning production packing workshop. |
| The standard of Inspection | BS2006-86 Aluminum tube for medicine ointment. |
| Closing | Under an air pressure of 0.2Mpa,no leakage |
| Appearance | Integrity and clean |
| Coating | The color matches the standard,no exposure and no tiny oil droplets |
| Color printing | Clear and entirety,the overprint is in position |
| Flexibility and adhesion | The lacquer did not split off and no crazing |
| Chemicals | Wipe 30 times with acetone,the lacquer did not split off |
| Package | Wholeness and clean |
| British Standard of Aluminum Collapsible Tube BS2006-1984 | |||||||||
| Sheet3 Size Standard | |||||||||
Diameter |
Tolerance of Diameter | Length |
Tolerance of Length | Nozzle |
Tube Wall Thickness | Shoulder Thickness | |||
| Max | Min | Max | Min | Shoulder Angle Standard | |||||
| mm | mm | mm | mm | mm | mm | mm | mm | ||
| 10 | ±0.1 |
60 | ±0.5 |
60 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ |
| 13.5 | 75 | 60 or 70 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ | ||
| 16 | 100 | 80 | 0.12 | 0.08 | 0.65 | 0.35 | 120℃ or 126℃ | ||
| 19 | 110 | 95 | 0.13 | 0.1 | 0.65 | 0.35 | 120℃ or 126℃ | ||
| 22 | 130 | 95 or 115 | 0.14 | 0.1 | 0.65 | 0.35 | |||
| 25 | 150 | 95 or 115 | 0.14 | 0.1 | 0.7 | 0.4 | No Standard | ||
| 28 | 165 | ±1.0 |
115 | 0.15 | 0.11 | 0.75 | 0.45 | ||
| 30 | 165 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 32 | 170 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 35 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 38 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 40 | 200 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 45 | ±0.25 | 200 | 115 or 135 | 0.18 | 0.12 | 0.9 | 0.5 | ||
| The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle | |||||||||
Standard Nozzle:
A. Plastic on-sert nozzle No.2 tube
B. Metric (V thread) open nozzle
C. Metric (V thread) sealed nozzle (membrane)
D. Extended Plastic Nozzle
E. Extended Nozzle
F. Plastic on-sert nozzle
