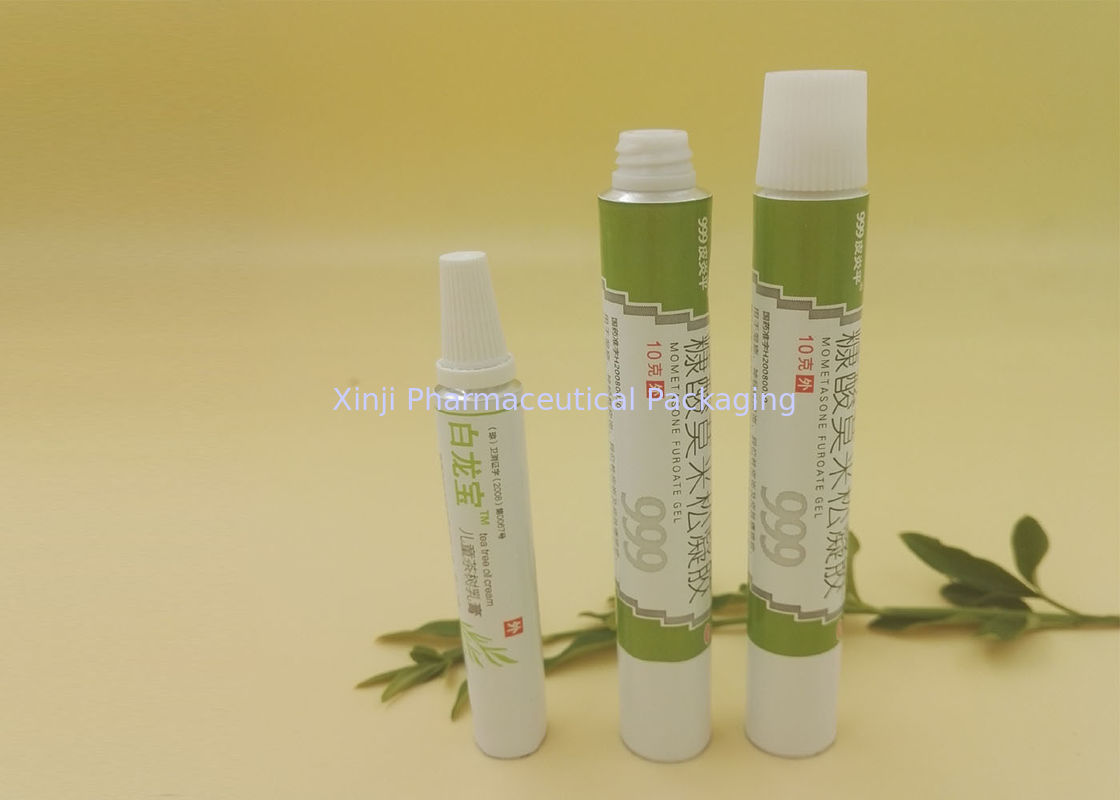

Name: Pharmaceutical / Cosmetic Aluminium Collapsible Tubes 6 Color Flexible Printing
Brand: Xinji
SKU: Dia 13.5mm - 40mm

Pharmaceutical / Cosmetic Aluminium Collapsible Tubes 6 Color Flexible Printing

Minimum Order Quantity:	50000 pcs
Packaging Details:	Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time:	30 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	300 millions pcs per year

Contact Now

Detailed Product Description

Material:	Purity 99.7% Aluminum	Color:	Up To 6 Colors
Name:	Collapsible Aluminum Tubes Packaging	Diameter:	13.5mm~40mm
Application:	Cosmetics, Medicine, Food, Adhesive, Paiting Etc.	Origin:	Hubei, China
High Light:	empty toothpaste tubes , custom tube packaging

Pharmaceutical / Cosmetic Packaging Aluminum Collapsible Tubes With 6 color Flexible Printing

Description:

Useage	Pharmaceutical, cosmetic, food, adhesive packaging, etc.
CAP	Colour-white/red/blue; Type-Conual Piercer; material-HPPE.
Aluminum Blamks	Aluminum＞99.7% pure.
Internal Lacquer	Type-Expoxy-Phenolic Resin.
External Base Coat	Type-Enamel;Colour-White.
Colour Ink	Suplier-Shanghai DIC.
Crimp sealant brand	PPG.
Manufacturing Environment	The construction of 100000-ton cleaning production packing workshop.
The standard of Inspection	BS2006-86 Aluminum tube for medicine ointment.
Closing	Under an air pressure of 0.2Mpa,no leakage
Appearance	Integrity and clean
Coating	The color matches the standard,no exposure and no tiny oil droplets
Color printing	Clear and entirety,the overprint is in position
Flexibility and adhesion	The lacquer did not split off and no crazing
Chemicals	Wipe 30 times with acetone,the lacquer did not split off
Package	Wholeness and clean

British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard
Diameter	Tolerance of Diameter	Length	Tolerance of Length	Nozzle	Tube Wall Thickness		Shoulder Thickness
Diameter	Tolerance of Diameter	Length	Tolerance of Length	Nozzle	Max	Min	Max	Min	Shoulder Angle Standard
mm	mm	mm	mm		mm	mm	mm	mm
10	±0.1	60	±0.5	60	0.11	0.07	0.5	0.3	90℃ or 120℃ or 126℃
13.5		75		60 or 70	0.11	0.07	0.5	0.3	90℃ or 120℃ or 126℃
16		100		80	0.12	0.08	0.65	0.35	120℃ or 126℃
19		110		95	0.13	0.1	0.65	0.35	120℃ or 126℃
22		130		95 or 115	0.14	0.1	0.65	0.35	120℃ or 126℃
25		150		95 or 115	0.14	0.1	0.7	0.4	No Standard
28		165	±1.0	115	0.15	0.11	0.75	0.45
30		165		115	0.16	0.11	0.75	0.45
32		170		115	0.16	0.11	0.75	0.45
35		185		115	0.16	0.11	0.75	0.45
38		185		115	0.16	0.11	0.75	0.45
40		200		115	0.16	0.11	0.75	0.45
45	±0.25	200		115 or 135	0.18	0.12	0.9	0.5
The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle

Our advantages:

Scales: Now we are the top 3 in China aluminum material manufacturing company.
Experience: We have nearly 40 years aluminum packaging material manufacture and printing experience.
Quality: ISO 9001/ Drugs packaging materials and containers. Registration Permit by CFDA. One hundred thousand stage purification workshop. Strong R&D team, customized-products. 100% QC inspection before delivery
Technique: many researchers are invested in product study.
Production lines: Full automatic production lines from Germany and Italy.

FAQ:

1. Are you trading company or manufacturer?

We are the 3rd largest manufacturer in this industry in China.

2. How to get samples?

Samples without customized printing are free, but do not pay the cost of freight.

3. How long is your delivery time?

Generally it is 30 days after we sign the contract, it is according to quantity.

4. What's your payment term?

T/T, L/C, Western Union, etc.
