Hubei Xinji Pharmaceutical Packaging Co.,Ltd
Meticulously manufacture, different for you.
Meticulously manufacture, different for you.
 |
| Place of Origin: | China |
| Brand Name: | Xinji |
| Certification: | ISO, CFDA |
| Model Number: | Dia 13.5mm - 40mm |
| Minimum Order Quantity: | 50000 pcs |
|---|---|
| Packaging Details: | Packed in strong carton,suitable for long distance ocean transportation. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 300 millions pcs per year |
| Material: | 99.7% Aluminum | Color: | Up To 6 Colors |
|---|---|---|---|
| Name: | Collapsible Aluminum Tube | Diameter: | 13.5mm~40mm |
| Usage: | Cosmetics, Medicine, Food, Adhesive, Paiting Packaging | Origin: | Hubei, China |
| High Light: | aluminum squeeze tubes,custom tube packaging |
||

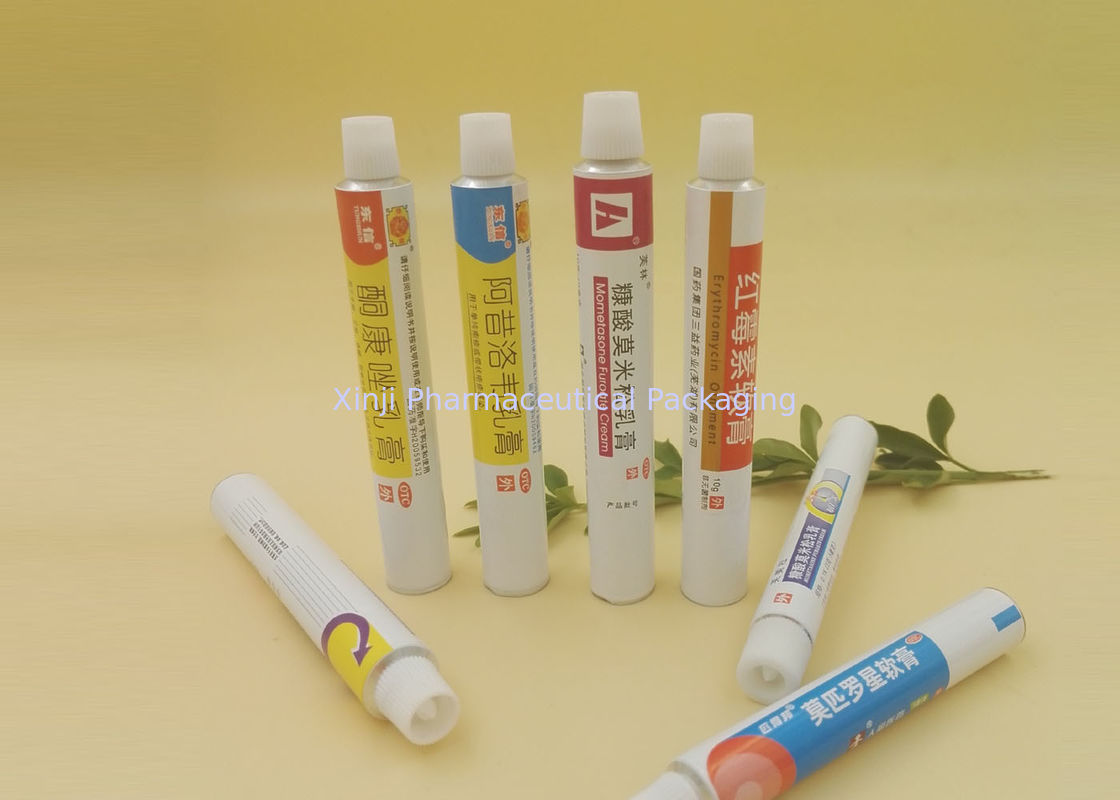

ISO Medicine / Cosmetic Packaging Aluminium Collapsible Tubes For Hands Cream Ointment
Description:
| CERTIFICATE OF ANALYSIS | ||||
| Test item | Standard | Testing result | conclusion | |
| Dimensions And appearance |
Diameter(mm) | Φ25±0.1 | 25 | qualified |
| Length (mm) | L100±0.5 | 100 | qualified | |
| Leak test | Under an air pressure of 0.2Mpa,no leakage | No leakage | qualified | |
| Appearance | Integrity and clean | Integrity and clean | qualified | |
| The coat printing | Coating | The color matches the standard,no exposure and no tiny oil droplets | The color matches the standard,no exposure and no tiny oil droplets | qualified |
| Color printing | Clear and entirety,the overprint is in position | Clear and entirety,the overprint is in position | qualified | |
| Color difference | Conform to the standard | Conform to the standard | qualified | |
| Internal coating |
Conductivity(mA) | ≤80 | 12 | qualified |
| Flexibility and adhesion | The lacquer did not split off and no crazing | No splitting off and no crazing | qualified | |
| Chemical stability | Wipe 30 times with acetone,the lacquer did not split off | No splitting off | qualified | |
| Type | Epoxy Phenolic Resin | qualified | ||
| Annealing | ≤8 mm | ≤8 | qualified | |
| Microbiology limitation inspection | Bacterial | < 5 item/tube | 1 item/tube | qualified |
| Fungus & Saccharomycetes | < 5 item/tube | 1 item/tube | qualified | |
| Staphylococcus aureus | None | None | qualified | |
| Pseudomonas aeruginosa | None | None | qualified | |
| Package | Wholeness and clean | Wholeness and clean | qualified | |
| Conclusion | Comply with specifications | |||
Our Aluminum tubes are made of high quality aluminum for tube and high quality PP for cap. All materials are new and professional for pharmaceutical package use. We never use re-used materials. Inside the tube, it is coated with a layer of Epoxy phenol-formaldehyde resin. This resin is a stable layer to separate cream/ointment contacting aluminum directly.
| Useage | Pharmaceutical, cosmetic, food, adhesive packaging, etc. |
| CAP | Colour-white/red/blue; Type-Conual Piercer; material-HPPE. |
| Aluminum Blamks | Aluminum＞99.7% pure. |
| Internal Lacquer | Type-Expoxy-Phenolic Resin. |
| External Base Coat | Type-Enamel;Colour-White. |
| Colour Ink | Suplier-Shanghai DIC. |
| Crimp sealant brand | PPG. |
| Manufacturing Environment | The construction of 100000-ton cleaning production packing workshop. |
| The standard of Inspection | BS2006-86 Aluminum tube for medicine ointment. |
| Closing | Under an air pressure of 0.2Mpa,no leakage |
| Appearance | Integrity and clean |
| Coating | The color matches the standard,no exposure and no tiny oil droplets |
| Color printing | Clear and entirety,the overprint is in position |
| Flexibility and adhesion | The lacquer did not split off and no crazing |
| Chemicals | Wipe 30 times with acetone,the lacquer did not split off |
| Package | Wholeness and clean |
| British Standard of Aluminum Collapsible Tube BS2006-1984 | |||||||||
| Sheet3 Size Standard | |||||||||
Diameter |
Tolerance of Diameter | Length |
Tolerance of Length | Nozzle |
Tube Wall Thickness | Shoulder Thickness | |||
| Max | Min | Max | Min | Shoulder Angle Standard | |||||
| mm | mm | mm | mm | mm | mm | mm | mm | ||
| 10 | ±0.1 |
60 | ±0.5 |
60 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ |
| 13.5 | 75 | 60 or 70 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ | ||
| 16 | 100 | 80 | 0.12 | 0.08 | 0.65 | 0.35 | 120℃ or 126℃ | ||
| 19 | 110 | 95 | 0.13 | 0.1 | 0.65 | 0.35 | 120℃ or 126℃ | ||
| 22 | 130 | 95 or 115 | 0.14 | 0.1 | 0.65 | 0.35 | |||
| 25 | 150 | 95 or 115 | 0.14 | 0.1 | 0.7 | 0.4 | No Standard | ||
| 28 | 165 | ±1.0 |
115 | 0.15 | 0.11 | 0.75 | 0.45 | ||
| 30 | 165 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 32 | 170 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 35 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 38 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 40 | 200 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 45 | ±0.25 | 200 | 115 or 135 | 0.18 | 0.12 | 0.9 | 0.5 | ||
| The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle | |||||||||
Our advantages:
