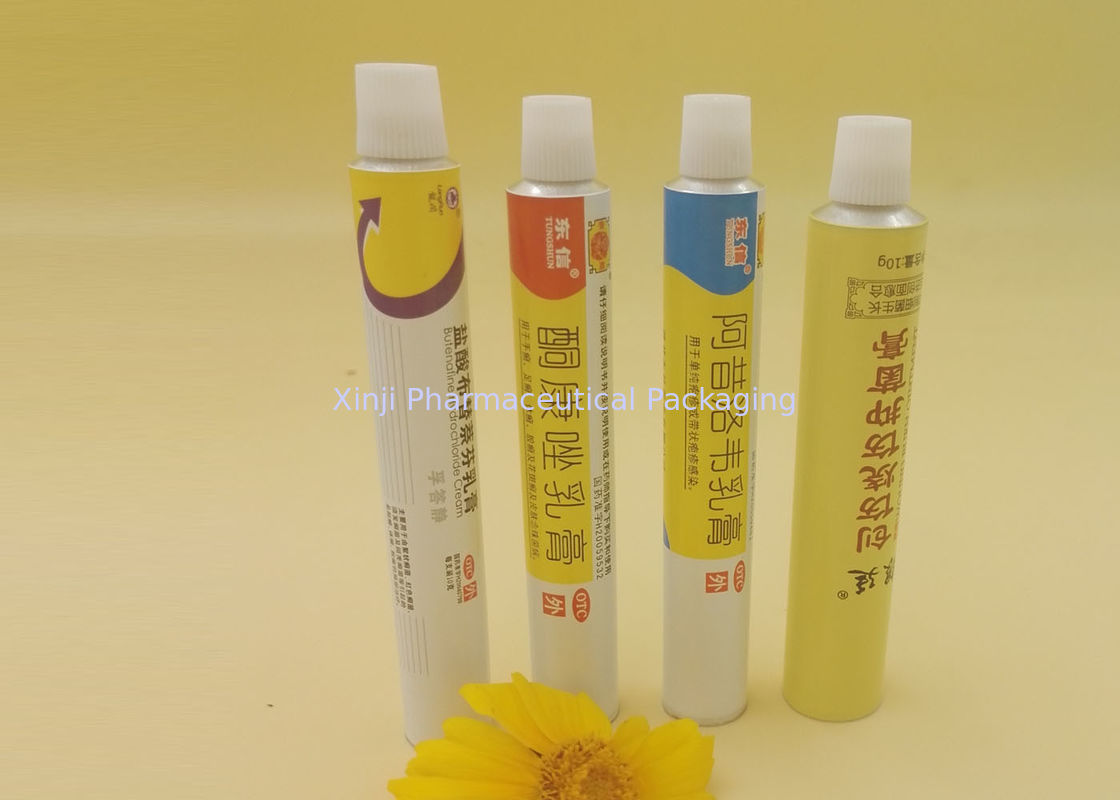

Dia13.5 mm - 40 mm Aluminium Collapsible Tubes For Pharmaceutical / Adhesive

Dia13.5 mm - 40 mm Aluminium Collapsible Tubes For Pharmaceutical / Adhesive

Dia13.5 mm - 40 mm Aluminium Collapsible Tubes For Pharmaceutical / Adhesive

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CFDA
Model Number: Dia 13.5mm - 40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 millions pcs per year
Contact Now
Detailed Product Description
Material: 99.7% Aluminum Color: Up To 6 Colors
Name: Aluminum Collapsible Tubes Diameter: 13.5mm~40mm
Application: Cosmetics, Medicine, Food, Adhesive, Paiting Packaging Origin: China
High Light:

empty toothpaste tubes

,

custom tube packaging

Dia13.5mm-40mm Aluminium Collapsible Tubes For Pharmaceutical / Cosmetic / Adhesive



Description:



1. Our Aluminum tubes are made of high quality aluminum for tube and high quality PP for cap. All materials are new and professional for pharmaceutical package use. We never use re-used materials. Inside the tube, it is coated with a layer of Epoxy phenol-formaldehyde resin. This resin is a stable layer to separate cream/ointment contacting aluminum directly.

2. The volume can be from 3ml to 200ml. The volume can be adjusted by choosing different diameter and differnt length of the tube. We can meet all sizes according to customer's requirement.

3. The diameter of the tube can be from 13.5mm to 40mm. This is subject to customer's choosing. Or we will suggest the size for customers.

4. Printing is offseting printing with max. 6 colors.

5. The normal screw cap,and special shape caps are available to select. The cap can also be with different colors.

6. The top is unbreaken dsealing.

7. The end of the tube is opened.

8. We can print and design according to your idea and artwork.



British Standard of Aluminum Collapsible Tube                      BS2006-1984
Sheet3 Size Standard

Diameter
Tolerance of Diameter
Length
Tolerance of Length
Nozzle
Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm   mm mm mm mm
10




±0.1
60


±0.5
60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0
115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40   200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5
The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle



Detailed Description of Aluminum Collapsible Hair Dye Packaging Tube:



* Material: aluminum purity>99.7%.

* Dimension: diameter from 13.5mm to 40mm, length can be customized

* Internal Lacquer: gold/silver/white colors, to keep the good nature of the cream etc. inside

* Roller Coating: white or other colors as your requests, to achieve the perfect printing effect

* Printing: six colors printing

* Bottom Latex: need or not, just depends on your requirements

* Nozzle Design: with membrane, open end, elongate nozzle, based on the customers' requirements

* Cap: various designs of caps for options

* Tube Shoulder: flat, brushed, polished, ringed or lacquered



Advantage of Aluminum Pharmaceutical Tube Packaging:



* TAMPER-PROOF: Makes adulteration impossible. Cannot be re-filled or re-used.

* PROTECTIVE: Contents remain well protected and free from contamination.

* ELEGANT: Attractive Possess a bright surface and lend themselves to trouble-free printing, this enhances shelf and customer appeal.

* NON-TOXIC & HYGIENIC: Non -Toxic, hygienic, non-absorbent, Impart no * LIGHTWEIGHT: Easy to handle. Reduces transport and handling cost.

* COMPLETE COLLAPSIBILITY: Highly ductile, ensures complete collapsibility.

* EASY AVAILABILITY: Aluminum Collapsible tubes are easily available.

* ECONOMICAL: Costs less than Tin or lead tubes. Needs no varnish.

* USER CONVENIENCE: Easy to use, unbreakable, easy to carry, light in weight, hygienic.



Our advantages:

  • Scales: Now we are the top 3 in China aluminum material manufacturing company.
  • Experience: We have nearly 40 years aluminum packaging material manufacture and printing experience.
  • Quality: ISO 9001/ Drugs packaging materials and containers. Registration Permit by CFDA. One hundred thousand stage purification workshop. Strong R&D team, customized-products. 100% QC inspection before delivery
  • Technique: many researchers are invested in product study.
  • Production lines: Full automatic production lines from Germany and Italy.
