Meticulously manufacture, different for you.
Place of Origin: | China |
Brand Name: | Xinji |
Certification: | ISO, CFDA |
Model Number: | Dia 13.5mm - 40mm |
Minimum Order Quantity: | 50000 pcs |
---|---|
Packaging Details: | Packed in strong carton,suitable for long distance ocean transportation. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 300 millions pcs per year |
Aluminum: | > 99.7% Purity | Name: | Aluminum Cream Packaging Tube |
---|---|---|---|
Color: | Max 6 Colors | Diameter: | 13.5mm - 40mm |
Nozzle: | Can Customize | Sample: | Free |
High Light: | empty aluminum tubes,squeeze tubes for lotion |

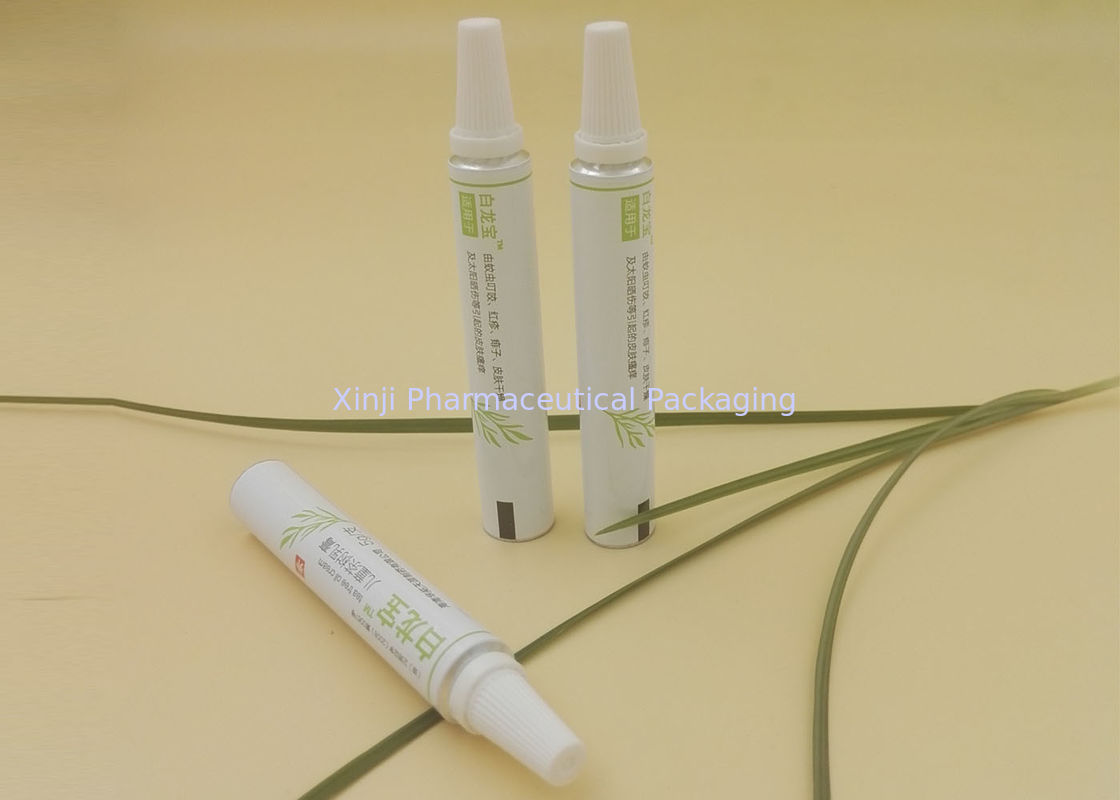

6 Colors Printing Aluminum Ointment Tubes , Aluminun Cream Tube Packaging Tube
Quick Details:
Our factory now has 8 production lines in total , including 3 European lines (2 from PSG and 1 from Technopack) , with annual production capacity 300 million aluminum tubes. We are the TOP3 manufacturer in Collapsible Aluminum Tube filed in China.
The product is widely used in medicine, cosmetics, food, adhesive, hair cream packaging etc.
We have Chinese GMP for pharmaceutical packaging. Our product export to most countries of Middle East & South America as well as Japan, Russia, etc.
1. CAP: Color-white/red/blue/yellow; material-HPPE.
2. Aluminum Slugs: Aluminum>99.7% pure.
3. Internal Lacquer: Type-Epoxy Phenolic Resin.
4. External Base Coat: Type-Enamel; Color-White (can customize).
5. Color Ink: up to 6 colors, Supplier-Shanghai DIC.
6. Latex at the end: PPG.
7. Manufacturing Environment: 100000-ton cleaning production packing workshop.
8. Equipment: Germany PSG fully automatic production line.
9. The standard of Inspection: in accordance with British Standard BS2006-86.
Advantages:
Quality | All select superior raw material, with mature producing technology and high standard quality control and inspection system, we can greatly guarantee the quality. |
Price | Factory direct sells, offering you the most competitive price! |
Service | Quick response on quotation, sample and after-service. |
Experience | Nearly 40 years' accumulated producing experience in this field. |
Production Lines | Full automatic production lines from Germany and Italy. |
British Standard (BS2006-86):
British Standard of Aluminum Collapsible Tube BS2006-1984 | |||||||||
Sheet3 Size Standard | |||||||||
Diameter |
Tolerance of Diameter | Length |
Tolerance of Length | Nozzle |
Tube Wall Thickness | Shoulder Thickness | |||
Max | Min | Max | Min | Shoulder Angle Standard | |||||
mm | mm | mm | mm | mm | mm | mm | mm | ||
10 | ±0.1 |
60 | ±0.5 |
60 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ |
13.5 | 75 | 60 or 70 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ | ||
16 | 100 | 80 | 0.12 | 0.08 | 0.65 | 0.35 | 120℃ or 126℃ | ||
19 | 110 | 95 | 0.13 | 0.1 | 0.65 | 0.35 | 120℃ or 126℃ | ||
22 | 130 | 95 or 115 | 0.14 | 0.1 | 0.65 | 0.35 | |||
25 | 150 | 95 or 115 | 0.14 | 0.1 | 0.7 | 0.4 | No Standard | ||
28 | 165 | ±1.0 |
115 | 0.15 | 0.11 | 0.75 | 0.45 | ||
30 | 165 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
32 | 170 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
35 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
38 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
40 | 200 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
45 | ±0.25 | 200 | 115 or 135 | 0.18 | 0.12 | 0.9 | 0.5 |
Aluminum collapsible Tube Specification sheet | |
Fill Volume | Suggested Tube Size(diameter&height) |
2-5ml | Dia11mm*H55mm, Dia13.5mm*H70mm, |
5-12ml | Dia13.5mm*H70mm, Dia16mm*H100mm, |
19-25ml | Dia19mm, 25mm, 30mm, 32mm, 38mm, the height could be designed as customer's request |
35-50ml | dia25mm |
60-80ml | dia30ml,32ml |
125-150ml | dia32ml,35ml |
150-200ml | dia35mm,40mm |
Remark: our alloy tube diameter range dia11mm to dia40mm and the height range 40mmH to 200mmH. Please be noted that the exact capacity dpending on product formulation and filling machinery. Test filling of actual product is suggested to determine the appropriate tube dimension |
