Name: 30g Printed Tube Packaging , Empty Metal Squeeze Tubes Dia 13.5mm - 40mm
Brand: Xinji
SKU: Dia 13.5mm - 40mm
Rating: 4.9 (198 reviews)

Home Products Aluminum Ointment Tubes

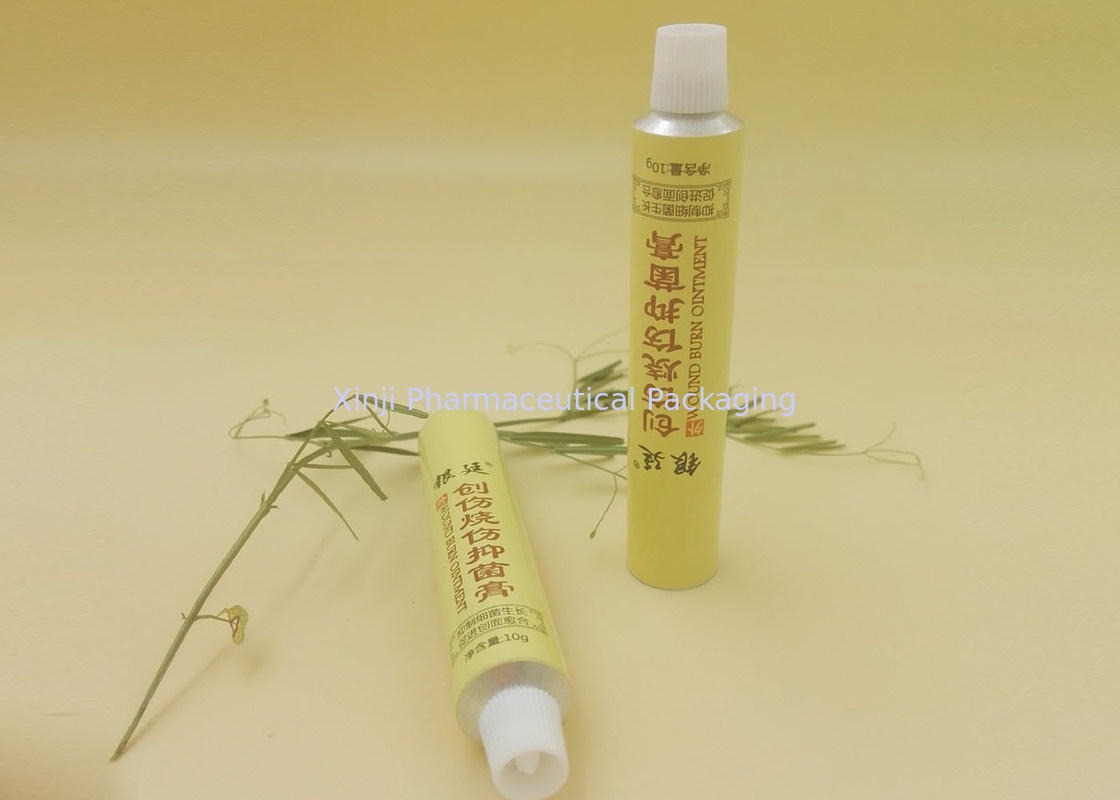

30g Printed Tube Packaging , Empty Metal Squeeze Tubes Dia 13.5mm - 40mm

Product Details:

Place of Origin:	China
Brand Name:	Xinji
Certification:	ISO, CFDA
Model Number:	Dia 13.5mm - 40mm

Payment & Shipping Terms:

Minimum Order Quantity:	50000 pcs
Packaging Details:	Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time:	30 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	300 millions pcs per year

Contact Now

Detailed Product Description

Aluminum:	> 99.7% Purity	Name:	Empty Ointment Tube
Color:	Up To 6 Colors	Capacity:	3ml - 200ml
Standard:	BS2006-86	Certificate:	ISO, CFDA
Highlight:	empty aluminum tubes , squeeze tubes for lotion

Printed 30g Aluminum Ointment Tubes , Empty Ointment Tube with Dia 13.5mm - 40mm

Details:

Diameter	Dia 13.5mm-40mm
Capacity	3ml-200ml
Length	adjusted within the range of tube capacity (3ml to 200ml)
Layer	mono-layer to five layers tube
Shape	round,oval,super flat
Tube color	white, transparent,colored
Printing	1-6 colors printing
Cap	Flip top cap, screw on cap
Usage	Cosmetic, Pharmaceutical, Health & Beauty industries
Packaging	card board tray and carton with plastic bag inside

1. CAP: Color-white/red/blue/yellow; material-HPPE.
2. Aluminum Slugs: Aluminum＞99.7% pure.
3. Internal Lacquer: Type-Epoxy Phenolic Resin.
4. External Base Coat: Type-Enamel; Color-White (can customize).
5. Color Ink: up to 6 colors, Supplier-Shanghai DIC.
6. Latex at the end: PPG.
7. Manufacturing Environment: 100000-ton cleaning production packing workshop.
8. Equipment: Germany PSG fully automatic production line.
9. The standard of Inspection: in accordance with British Standard BS2006-86.

Advantages:

Quality	All select superior raw material, with mature producing technology and high standard quality control and inspection system, we can greatly guarantee the quality.
Price	Factory direct sells, offering you the most competitive price!
Service	Quick response on quotation, sample and after-service.
Experience	Nearly 40 years' accumulated producing experience in this field.
Production Lines	Full automatic production lines from Germany and Italy.

British Standard (BS2006-86):

British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard
Diameter	Tolerance of Diameter	Length	Tolerance of Length	Nozzle	Tube Wall Thickness		Shoulder Thickness
Diameter	Tolerance of Diameter	Length	Tolerance of Length	Nozzle	Max	Min	Max	Min	Shoulder Angle Standard
mm	mm	mm	mm		mm	mm	mm	mm
10	±0.1	60	±0.5	60	0.11	0.07	0.5	0.3	90℃ or 120℃ or 126℃
13.5		75		60 or 70	0.11	0.07	0.5	0.3	90℃ or 120℃ or 126℃
16		100		80	0.12	0.08	0.65	0.35	120℃ or 126℃
19		110		95	0.13	0.1	0.65	0.35	120℃ or 126℃
22		130		95 or 115	0.14	0.1	0.65	0.35
25		150		95 or 115	0.14	0.1	0.7	0.4	No Standard
28		165	±1.0	115	0.15	0.11	0.75	0.45
30		165		115	0.16	0.11	0.75	0.45
32		170		115	0.16	0.11	0.75	0.45
35		185		115	0.16	0.11	0.75	0.45
38		185		115	0.16	0.11	0.75	0.45
40		200		115	0.16	0.11	0.75	0.45
45	±0.25	200		115 or 135	0.18	0.12	0.9	0.5
