Hubei Xinji Pharmaceutical Packaging Co.,Ltd
Meticulously manufacture, different for you.
Meticulously manufacture, different for you.
 |
| Place of Origin: | China |
| Brand Name: | Xinji |
| Certification: | ISO, CFDA |
| Model Number: | Dia 13.5mm - 40mm |
| Minimum Order Quantity: | 50000 pcs |
|---|---|
| Packaging Details: | Packed in strong carton,suitable for long distance ocean transportation. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 300 millions pcs per year |
| Aluminum: | > 99.7% Purity | Name: | Soft Aluminum Tubes For Cream |
|---|---|---|---|
| Color: | Up To 6 Colors | Capacity: | 3ml - 200ml |
| Cap: | HPPE | Nozzle: | Can Customize |
| High Light: | squeeze tubes for lotion,ointment packaging |
||

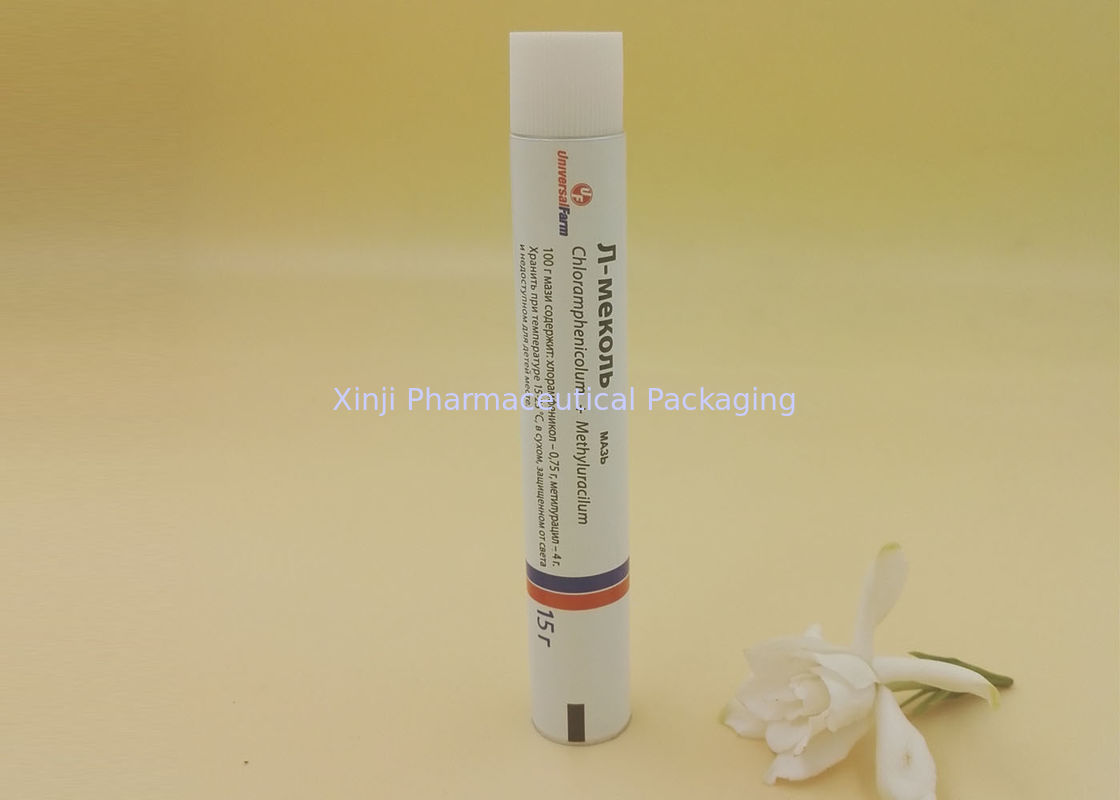

3 - 200ml Aluminum Ointment Tubes , Soft Aluminum Tubes for Cream / Ointment
Quick Details:
| Alumminum collapsible Tube Specification sheet | |||
| Tube size(diameter) | Standard(Length) | Length Range | Estimated Capacity |
| 11mm | 55mm | 55-65mm | 2-5ml |
| 13.5mm | 70mm | 70-80mm | 5-12ml |
| 16mm | 100mm | 100ml-115ml | 8-11ml |
| 19mm | 110mm | 110mm-120mm | 10-25ml |
| 25mm | could be designed | 110-200mm | 30-50ml |
| 30mm | 50-70ml | ||
| 32mm | 80-100ml | ||
| 38mm | 100-150ml | ||
| 40mm | 200-350ml | ||
1. Latex at the end: PPG.
2. Manufacturing Environment: 100000-ton cleaning production packing workshop.
3. Equipment: Germany PSG fully automatic production line.
4. The standard of Inspection: in accordance with British Standard BS2006-86.
5. CAP: Color-white/red/blue/yellow; material-HPPE.
6. Aluminum Slugs: Aluminum＞99.7% pure.
7. Internal Lacquer: Type-Epoxy Phenolic Resin.
8. External Base Coat: Type-Enamel; Color-White (can customize).
9. Color Ink: up to 6 colors, Supplier-Shanghai DIC.
Advantages:
1. Quality. All select superior raw material, with mature producing technology and high standard quality control and inspection system, we can greatly guarantee the quality.
2. More than 40 years experience in packaging design, develop and manufacture.
3. Strong R&D team, customized-products are highly welcomed.
4. 100% QC inspection before delivery, high quality with very competitive price.
5. 90% of our products are exporting to oversea market, top service and timely delivery.
6. Price. Factory direct sells, offering you the most competitive price!
7. Service. Quick response on quotation, sample and after-service.
British Standard (BS2006-86):
| British Standard of Aluminum Collapsible Tube BS2006-1984 | |||||||||
| Sheet3 Size Standard | |||||||||
Diameter |
Tolerance of Diameter | Length |
Tolerance of Length | Nozzle |
Tube Wall Thickness | Shoulder Thickness | |||
| Max | Min | Max | Min | Shoulder Angle Standard | |||||
| mm | mm | mm | mm | mm | mm | mm | mm | ||
| 10 | ±0.1 |
60 | ±0.5 |
60 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ |
| 13.5 | 75 | 60 or 70 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ | ||
| 16 | 100 | 80 | 0.12 | 0.08 | 0.65 | 0.35 | 120℃ or 126℃ | ||
| 19 | 110 | 95 | 0.13 | 0.1 | 0.65 | 0.35 | 120℃ or 126℃ | ||
| 22 | 130 | 95 or 115 | 0.14 | 0.1 | 0.65 | 0.35 | |||
| 25 | 150 | 95 or 115 | 0.14 | 0.1 | 0.7 | 0.4 | No Standard | ||
| 28 | 165 | ±1.0 |
115 | 0.15 | 0.11 | 0.75 | 0.45 | ||
| 30 | 165 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 32 | 170 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 35 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 38 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 40 | 200 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 45 | ±0.25 | 200 | 115 or 135 | 0.18 | 0.12 | 0.9 | 0.5 | ||
FAQ:
1. Are you trading company or manufacturer?
We are the 3rd largest manufacturer in this industry in China, located in central China with nearly 40 years history.
2. How to get samples?
Samples without customized printing are free.
Also we can customize samples with your design for your testing at local, but it will take some charges.
3. How long is your delivery time?
Generally it is within 30 days after we sign the contract and confirm the artwork.
4. What's your payment term?
T/T, L/C, Western Union, etc.
5. Could we visit your factory?
Sure, welcome you to visit us! We’re nearly Wuhan City. You can take plane to Wuhan Tianhe Airport or take high-speed train to Wuhan High Railway Station. We will pick you up there, and it will take half an hour to our factory from the airport or railway station.
Contact Person: Ms. Echo
Tel: 0086-15871390717
