Meticulously manufacture, different for you.
Place of Origin: | China |
Brand Name: | Xinji |
Certification: | ISO, CFDA |
Model Number: | Dia 13.5mm - 40mm |
Minimum Order Quantity: | 50000 pcs |
---|---|
Packaging Details: | Packed in strong carton,suitable for long distance ocean transportation. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 300 millions pcs per year |
Aluminum: | > 99.7% Purity | Name: | Squeeze Packaging Tube |
---|---|---|---|
Printing: | Up To 6 Colors | Volume: | 3ml - 200ml |
Nozzle: | Can Customize | Standard: | BS2006-86 |
High Light: | squeeze tubes for lotion,ointment packaging |

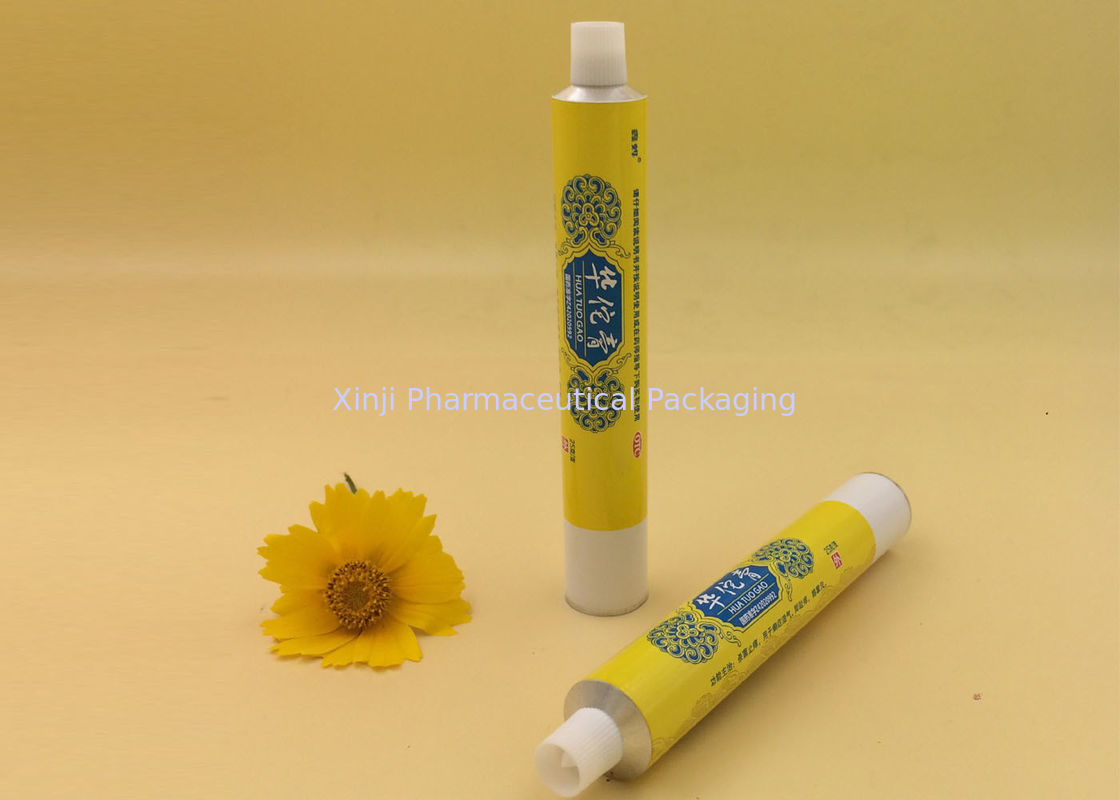

Squeeze Soft Aluminum Ointment Tubes , Cream Squeeze Tube , Squeeze Packaging Tube
Company Brief Introduction:
1. Located in China's central city of Wuhan city circle, Ezhou City, Hubei Province.
2. Established in 1981 with nearly 40 years' experience in aluminum tube manufacturing.
3. Our company brought in several high speed automatic production lines from Germany and Italy. We gather a professional management team, combine the tube manufacturing technology accumulated in nearly 40 years with scientific management, regard "make every tube trustworthy" as our quality concept to cover the whole process including products designing, developing, producing, transporting, and service.
4. The workshop were built in accordance with construction requirements of GMP in pharmaceutical production. And ensure our production and packing environment reach 100 thousand grade standard.
Quick Details:
Aluminum Slugs | Aluminum>99.7% pure. |
Internal Lacquer | Type-Epoxy Phenolic Resin. |
External Base Coat | Type-Enamel; Color-White (can customize). |
Latex at the end | Optional |
Color Ink | up to 6 colors, Supplier-Shanghai DIC. |
CAP | Color-white/red/blue/yellow; material-HPPE. |
Manufacturing Environment | 100000-ton cleaning production packing workshop. |
Equipment | Germany PSG fully automatic production line. |
The standard of Inspection | in accordance with British Standard BS2006-86. |
British Standard (BS2006-86):
British Standard of Aluminum Collapsible Tube BS2006-1984 | |||||||||
Sheet3 Size Standard | |||||||||
Diameter |
Tolerance of Diameter | Length |
Tolerance of Length | Nozzle |
Tube Wall Thickness | Shoulder Thickness | |||
Max | Min | Max | Min | Shoulder Angle Standard | |||||
mm | mm | mm | mm | mm | mm | mm | mm | ||
10 | ±0.1 |
60 | ±0.5 |
60 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ |
13.5 | 75 | 60 or 70 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ | ||
16 | 100 | 80 | 0.12 | 0.08 | 0.65 | 0.35 | 120℃ or 126℃ | ||
19 | 110 | 95 | 0.13 | 0.1 | 0.65 | 0.35 | 120℃ or 126℃ | ||
22 | 130 | 95 or 115 | 0.14 | 0.1 | 0.65 | 0.35 | |||
25 | 150 | 95 or 115 | 0.14 | 0.1 | 0.7 | 0.4 | No Standard | ||
28 | 165 | ±1.0 |
115 | 0.15 | 0.11 | 0.75 | 0.45 | ||
30 | 165 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
32 | 170 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
35 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
38 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
40 | 200 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
45 | ±0.25 | 200 | 115 or 135 | 0.18 | 0.12 | 0.9 | 0.5 |
FAQ:
1. Are you trading company or manufacturer?
We are the 3rd largest manufacturer in this industry in China, located in central China with nearly 40 years.
2. How to get samples?
Samples without customized printing are free.
Also we can customize samples with your design for your testing at local, but it will take some charges.
3. How long is your delivery time?
Generally it is within 30 days after we sign the contract and confirm the artwork.
4. What's your payment term?
T/T, L/C, Western Union, etc.
Our tubes mainly used for medicine, adhesive, tooth paste, eye ointment, hand cream, facial milk and some food packaging, etc.
Should you have any questions or needs, please contact us freely, we will take every effort to offer you the best service.
Application of Aluminum Collapsible Tube | |
Product Type | Contents |
Health caring | eye cream,body lotion,shaving cream,foot cream,toothpaste,hand cream |
Medicine | unguent,medical cream,gel |
Adhesive Glue | super glue,rubber cement,leather adhesive,resin,wood glue,epoxy glue,metal glue,sealant |
Industrial Grease | brake grease,silicone-based grease,sewing machine lubricating oil,gear grease,red rubber grease,lithium-based grease |
Cosmetics | eyeliner,lip balm,hair dressing cream,nail beauty products,mascara |
