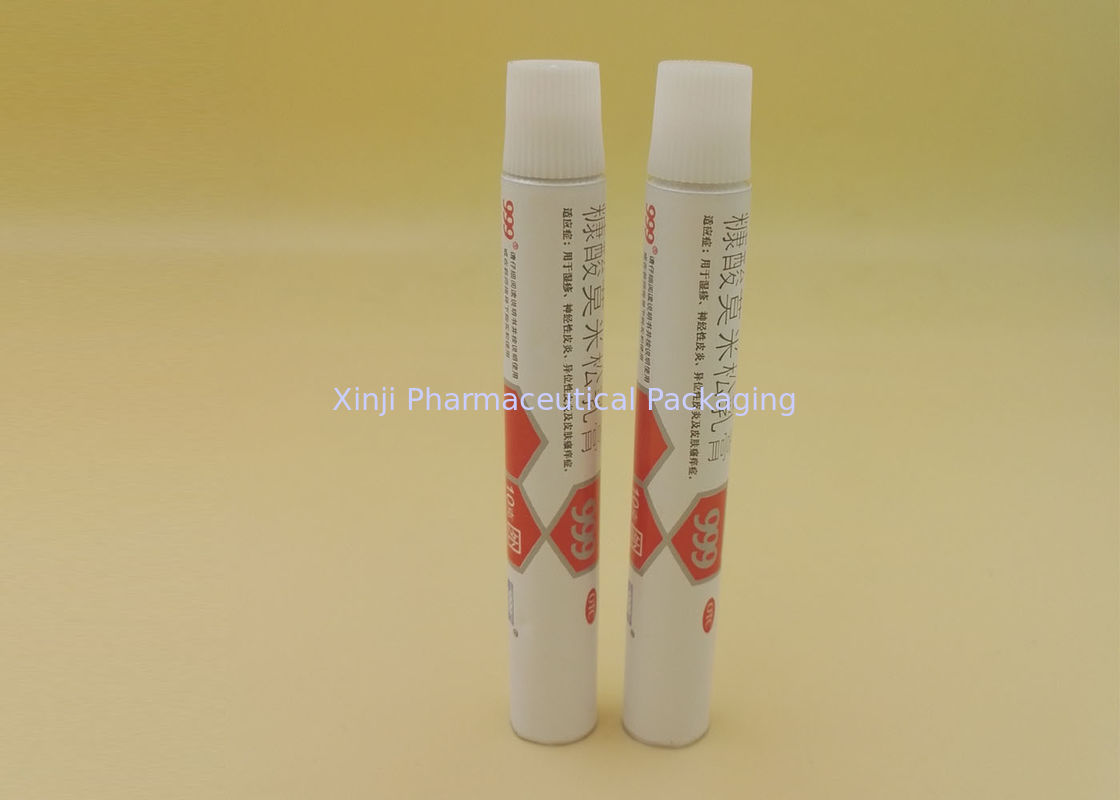

Topical Aluminum Ointment Tubes HPPE Screw Cap BS2006-1984 Standard

Topical Aluminum Ointment Tubes HPPE Screw Cap BS2006-1984 Standard

Topical Aluminum Ointment Tubes HPPE Screw Cap BS2006-1984 Standard

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CFDA
Model Number: Dia 13.5mm - 40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 millions pcs per year
Contact Now
Detailed Product Description
Aluminum: > 99.7% Purity Name: Topical Aluminum Ointment Tubes
Printing: Up To 6 Colors Diameter: 13.5mm - 40mm
Cap: Screw Cap, HPPE Sample: Free
High Light:

empty aluminum tubes

,

ointment packaging

Medicine Aluminum Ointment Tubes , Topical Aluminum Ointment Tubes



1. In our factory,we have professional quality control personnel in every production department. Their job is to check the products quality in every step of the processes.
2. Skillful workers take care of every detail during producing and packaging process.
3. Moreover, our salers will always be responsible for the quality and details, they need to pay great attention for his/her production instead of clients.



CERTIFICATE OF ANALYSIS
Test item Standard Testing result conclusion





Dimensions

And

appearance





Diameter(mm) F19± 0.1 19 qualified
  Length (mm) L115± 0.5 115 qualified
  Closing Under an air pressure of 0.2Mpa,no leakage No leakage qualified
  Appearance Integrity and clean Integrity and clean qualified
The coat printing Coating The color matches the standard,no exposure and no tiny oil droplets The color matches the standard,no exposure and no tiny oil droplets qualified
  Color printing Clear and entirety,the overprint is in position Clear and entirety,the overprint is in position qualified
  Color difference Conform to the standard Conform to the standard qualified
Internal coating Continuity(mA) ≤40 10 qualified
  Flexibility and adhesion The lacquer did not split off and no crazing No splitting off and no crazing qualified
  Chemicals Wipe 30 times with acetone,the lacquer did not split off No splitting off qualified
Microgerm limitation inspection Bacteria <5 item/ml 0 item/ml qualified
  Tungi <5 item/ml 0 item/ml qualified
  Inaurate staphy None None qualified
  Aerugo pseudomonad None None qualified
Package Wholeness and clean Wholeness and clean qualified



British Standard (BS2006-86):



British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard

Diameter
Tolerance of Diameter
Length
Tolerance of Length
Nozzle
Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm   mm mm mm mm
10




±0.1
60


±0.5
60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0
115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40   200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5



Aluminum collapsible Tube Specification sheet
Fill Volume Suggested Tube Size(diameter&height)
2-5ml Dia11mm*H55mm, Dia13.5mm*H70mm,
5-12ml Dia13.5mm*H70mm, Dia16mm*H100mm,
19-25ml Dia19mm, 25mm, 30mm, 32mm, 38mm, the height could be designed as customer's request
35-50ml dia25mm
60-80ml dia30ml,32ml
125-150ml dia32ml,35ml
150-200ml dia35mm,40mm
