| Place of Origin: | China |
| Brand Name: | Xinji |
| Certification: | ISO, CFDA |
| Model Number: | Dia 13.5mm - 40mm |
| Minimum Order Quantity: | 50000 pcs |
|---|---|
| Packaging Details: | Packed in strong carton,suitable for long distance ocean transportation. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 300 millions pcs per year |
| Aluminum: | > 99.7% Purity | Color: | Up To 6 Colors |
|---|---|---|---|
| Name: | Pharma Aluminum Squeeze Tube | Diameter: | 13.5mm - 40mm |
| Capacity: | 3ml - 200ml | Standard: | BS2006-86 |
| Caps: | M9 | ||
| High Light: | aluminum tubes packaging,pharmaceutical aluminum tubes |
||

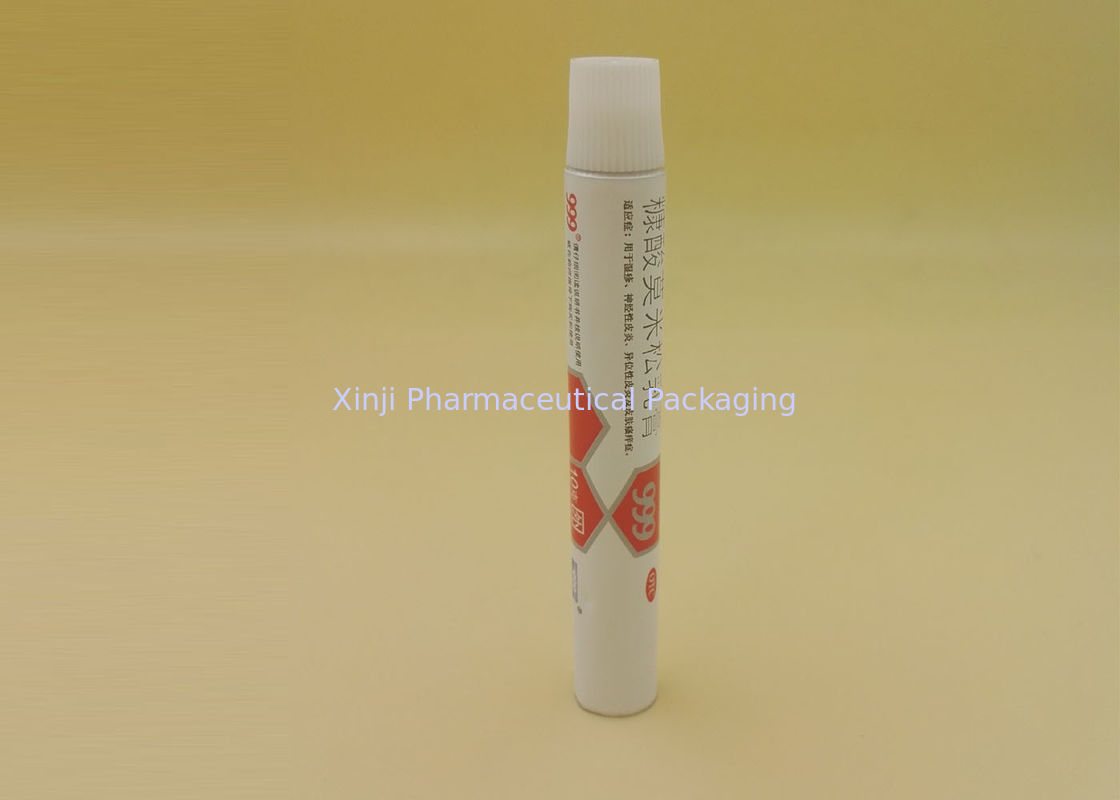

Pharma Aluminum Squeeze Tube Packaging With CFDA Certificate
| British Standard of Pharma Aluminum Squeeze Tube Tube BS2006-1984 | |||||||||
| Sheet3 Size Standard | |||||||||
Diameter |
Tolerance of Diameter | Length |
Tolerance of Length | Nozzle |
Tube Wall Thickness | Shoulder Thickness | |||
| Max | Min | Max | Min | Shoulder Angle Standard | |||||
| mm | mm | mm | mm | mm | mm | mm | mm | ||
| 10 | ±0.1 |
60 | ±0.5 |
60 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ |
| 13.5 | 75 | 60 or 70 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ | ||
| 16 | 100 | 80 | 0.12 | 0.08 | 0.65 | 0.35 | 120℃ or 126℃ | ||
| 19 | 110 | 95 | 0.13 | 0.1 | 0.65 | 0.35 | 120℃ or 126℃ | ||
| 22 | 130 | 95 or 115 | 0.14 | 0.1 | 0.65 | 0.35 | |||
| 25 | 150 | 95 or 115 | 0.14 | 0.1 | 0.7 | 0.4 | No Standard | ||
| 28 | 165 | ±1.0 |
115 | 0.15 | 0.11 | 0.75 | 0.45 | ||
| 30 | 165 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 32 | 170 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 35 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 38 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 40 | 200 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 45 | ±0.25 | 200 | 115 or 135 | 0.18 | 0.12 | 0.9 | 0.5 | ||
Details:
1. Color Ink: up to 6 colors, Supplier-Shanghai DIC.
2. Latex at the end: PPG.
3. Manufacturing Environment: 100000-ton cleaning production packing workshop.
4. Equipment: Germany PSG fully automatic production line.
5. The standard of Inspection: in accordance with British Standard BS2006-86.
6. CAP: Color-white/red/blue/yellow; material-HPPE.
7. Aluminum Slugs: Aluminum＞99.7% pure.
8. Internal Lacquer: Type-Epoxy Phenolic Resin.
9. External Base Coat: Type-Enamel; Color-White (can customize).
Our advantages:
Our quality system
ISO9001certification
Drugs packaging materials and containers. Registration Permit by CFDA
(100 thousand dgree purified workshop)
Pharma Aluminum Squeeze Tube
| Specification sheet | |
| Fill Volume | Suggested Tube Size(diameter&height) |
| 2-5ml | Dia11mm*H55mm, Dia13.5mm*H70mm, |
| 5-12ml | Dia13.5mm*H70mm, Dia16mm*H100mm, |
| 19-25ml | Dia19mm, 25mm, 30mm, 32mm, 38mm, the height could be designed as customer's request |
| 35-50ml | dia25mm |
| 60-80ml | dia30ml,32ml |
| 125-150ml | dia32ml,35ml |
| 150-200ml | dia35mm,40mm |
| Remark: our alloy tube diameter range dia11mm to dia40mm and the height range 40mmH to 200mmH. Please be noted that the exact capacity dpending on product formulation and filling machinery. Test filling of actual product is suggested to determine the appropriate tube dimension | |
Company culture:
Business philosophy: Meticulously manufacture, different for you.
Quality policy: Make every aluminum tube trustworthy
Xinji core values: love, responsibility, change, happy
Business Philosophy: Through the efforts of two generations, Xinji Pharmaceutical Packaging adheres to the business philosophy “Meticulously manufacture, different for you”, always focus on the market demand, continue to improve the technology innovation and management system, provide customers with high-quality aluminum tube and personalized service.
