Meticulously manufacture, different for you.
Place of Origin: | China |
Brand Name: | Xinji |
Certification: | ISO, CFDA |
Model Number: | Dia 13.5mm - 40mm |
Minimum Order Quantity: | 50000 pcs |
---|---|
Packaging Details: | Packed in strong carton,suitable for long distance ocean transportation. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 300 millions pcs per year |
Raw Material: | > 99.7% Purity Aluminum | Color: | Up To 6 Colors |
---|---|---|---|
Name: | Soft Ointment Pharma Tube | Capacity: | 3ml - 200ml |
Standard: | BS2006-86 | Length: | Can Customize |
High Light: | travel squeeze tube,empty lotion tubes |

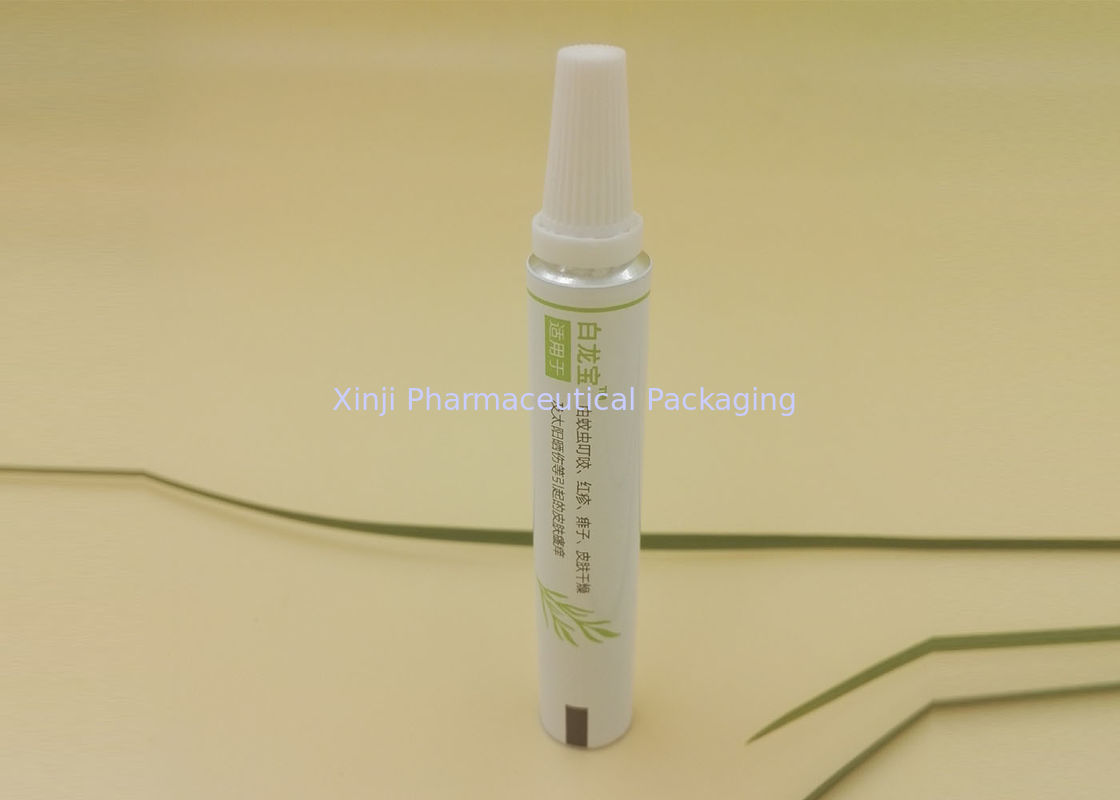

Soft Ointment Pharma Tube / Cream Pharma Tube / Aluminum Pharma Tube
Quick Details:
1. CAP: Color-white/red/blue/yellow; material-HPPE.
2. Aluminum Slugs: Aluminum>99.7% pure.
3. Internal Lacquer: Type-Epoxy Phenolic Resin.
4. External Base Coat: Type-Enamel; Color-White (can customize).
5. Color Ink: up to 6 colors, Supplier-Shanghai DIC.
6. Latex at the end: PPG.
7. Manufacturing Environment: 100000-ton cleaning production packing workshop.
8. Equipment: Germany PSG fully automatic production line.
9. The standard of Inspection: in accordance with British Standard BS2006-86.
Alumminum collapsible Tube Specification sheet | |||
Tube size(diameter) | Standard(Length) | Length Range | Estimated Capacity |
11mm | 55mm | 55-65mm | 2-5ml |
13.5mm | 70mm | 70-80mm | 5-12ml |
16mm | 100mm | 100ml-115ml | 8-11ml |
19mm | 110mm | 110mm-120mm | 10-25ml |
25mm | could be designed | 110-200mm | 30-50ml |
30mm | 50-70ml | ||
32mm | 80-100ml | ||
38mm | 100-150ml | ||
40mm | 200-350ml |
British Standard (BS2006-86):
British Standard of Aluminum Collapsible Tube BS2006-1984 | |||||||||
Sheet3 Size Standard | |||||||||
Diameter |
Tolerance of Diameter | Length |
Tolerance of Length | Nozzle |
Tube Wall Thickness | Shoulder Thickness | |||
Max | Min | Max | Min | Shoulder Angle Standard | |||||
mm | mm | mm | mm | mm | mm | mm | mm | ||
10 | ±0.1 |
60 | ±0.5 |
60 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ |
13.5 | 75 | 60 or 70 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ | ||
16 | 100 | 80 | 0.12 | 0.08 | 0.65 | 0.35 | 120℃ or 126℃ | ||
19 | 110 | 95 | 0.13 | 0.1 | 0.65 | 0.35 | 120℃ or 126℃ | ||
22 | 130 | 95 or 115 | 0.14 | 0.1 | 0.65 | 0.35 | |||
25 | 150 | 95 or 115 | 0.14 | 0.1 | 0.7 | 0.4 | No Standard | ||
28 | 165 | ±1.0 |
115 | 0.15 | 0.11 | 0.75 | 0.45 | ||
30 | 165 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
32 | 170 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
35 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
38 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
40 | 200 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
45 | ±0.25 | 200 | 115 or 135 | 0.18 | 0.12 | 0.9 | 0.5 |
Advantages:
We can deliver free samples if you need. Please feel free to contact us or email us.
It would be our great honor to send you some free samples for your quality test.
We promise "0" risk for you doing business with us, we will take 100% responsibility for our goods to avoid any lost for you. You can chose swap goods or expect a refund.
1. Once you get the package, please let us know your idea on our goods, packaging and service.
2. Any problems will be answered within 24hours
3. If you need us to improve the service, please feel free to contact us.
