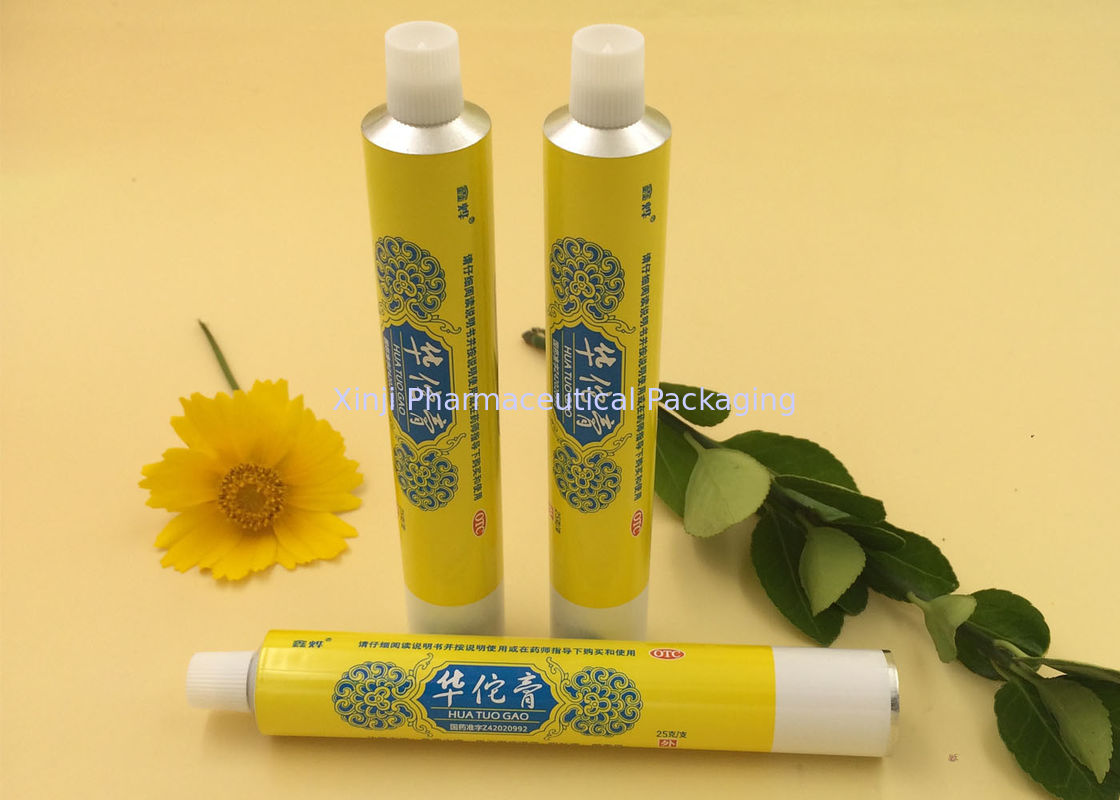

Name: Printed Collapsible Travel Squeeze Tube , 3 - 200ml Volume Package Tube
Brand: Xinji
SKU: Dia 13.5mm - 40mm

Home Products Pharma/ Medicine Tube

Printed Collapsible Travel Squeeze Tube , 3 - 200ml Volume Package Tube

Product Details:

Place of Origin:	China
Brand Name:	Xinji
Certification:	ISO, CFDA
Model Number:	Dia 13.5mm - 40mm

Payment & Shipping Terms:

Minimum Order Quantity:	50000 pcs
Packaging Details:	Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time:	30 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	300 millions pcs per year

Contact Now

Detailed Product Description

Aluminum:	> 99.7% Purity	Color:	Up To 6 Colors
Name:	Printed Pharma Tube	Samples:	Available, Free
Diameter:	13.5mm - 40mm	Factory Direct:	Yes
High Light:	aluminum tubes packaging , travel squeeze tube

3 - 200ml Printed Pharma Tube , Ointment Aluminum Packaging Tube

Nozzle Opening:	Open end, membrane (close end)
Nozzle Type:	Standard round nozzle, large orifice nozzle, elongated nozzle
Shoulder Type:	Plain shoulder, shoulder with tactile warning of danger (3-dot symbol or 5-triangle symbol)
Internal Lacquer:	Plain or double lacquer with epoxy phenolic resin
Base Coating:	In white or a custom color
Shoulder Coating:	Not available
Surface Printing:	Up to 4-color offset print on tubes with client's logo and design. Hot stamping foil gold, silver or pearl white is also available.
Latex Lining	Latex bands of custom width from tube base to prevent leakage.
Capping:	Caps are available in different styles and in different colors. Flowerpot (snip tip top), rounded, angular, flat top, stiple top, piercer (cap with puncture point), stand-up (smooth, full-width), flip-top (natural dispensing cap with snap-top), concave top, tamper-proof, etc.

1. CAP: Color-white/red/blue/yellow; material-HPPE.
2. Aluminum Slugs: Aluminum＞99.7% pure.
3. Internal Lacquer: Type-Epoxy Phenolic Resin.
4. External Base Coat: Type-Enamel; Color-White (can customize).
5. Color Ink: up to 6 colors, Supplier-Shanghai DIC.
6. Latex at the end: PPG.
7. Manufacturing Environment: 100000-ton cleaning production packing workshop.
8. Equipment: Germany PSG fully automatic production line.
9. The standard of Inspection: in accordance with British Standard BS2006-86.

British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard
Diameter	Tolerance of Diameter	Length	Tolerance of Length	Nozzle	Tube Wall Thickness		Shoulder Thickness
Diameter	Tolerance of Diameter	Length	Tolerance of Length	Nozzle	Max	Min	Max	Min	Shoulder Angle Standard
mm	mm	mm	mm		mm	mm	mm	mm
10	±0.1	60	±0.5	60	0.11	0.07	0.5	0.3	90℃ or 120℃ or 126℃
13.5		75		60 or 70	0.11	0.07	0.5	0.3	90℃ or 120℃ or 126℃
16		100		80	0.12	0.08	0.65	0.35	120℃ or 126℃
19		110		95	0.13	0.1	0.65	0.35	120℃ or 126℃
22		130		95 or 115	0.14	0.1	0.65	0.35
25		150		95 or 115	0.14	0.1	0.7	0.4	No Standard
28		165	±1.0	115	0.15	0.11	0.75	0.45
30		165		115	0.16	0.11	0.75	0.45
32		170		115	0.16	0.11	0.75	0.45
35		185		115	0.16	0.11	0.75	0.45
38		185		115	0.16	0.11	0.75	0.45
40		200		115	0.16	0.11	0.75	0.45
45	±0.25	200		115 or 135	0.18	0.12	0.9	0.5

Advantages:

Quality	All select superior raw material, with mature producing technology and high standard quality control and inspection system, we can greatly guarantee the quality.
Price	Factory direct sells, offering you the most competitive price!
Service	Quick response on quotation, sample and after-service.
Experience	Nearly 40 years' accumulated producing experience in this field.
Production Lines	Full automatic production lines from Germany and Italy.

Size:	16 mm DIA x 80 mm L
Capacity/Volume:	10 ml
Packaging:	Bulk pack. Tubes are packed in corrugated cardboards, with or without partitions.
Minimum Order Quantity:	10,000 pieces per variant
Delivery:	25 days after confirming order
Company Certificates:	ISO9001:2008 Quality Management System Pharmaceutical Packaging Certificate issued by CFDA
Production Capacity:	300millions pieces per year
