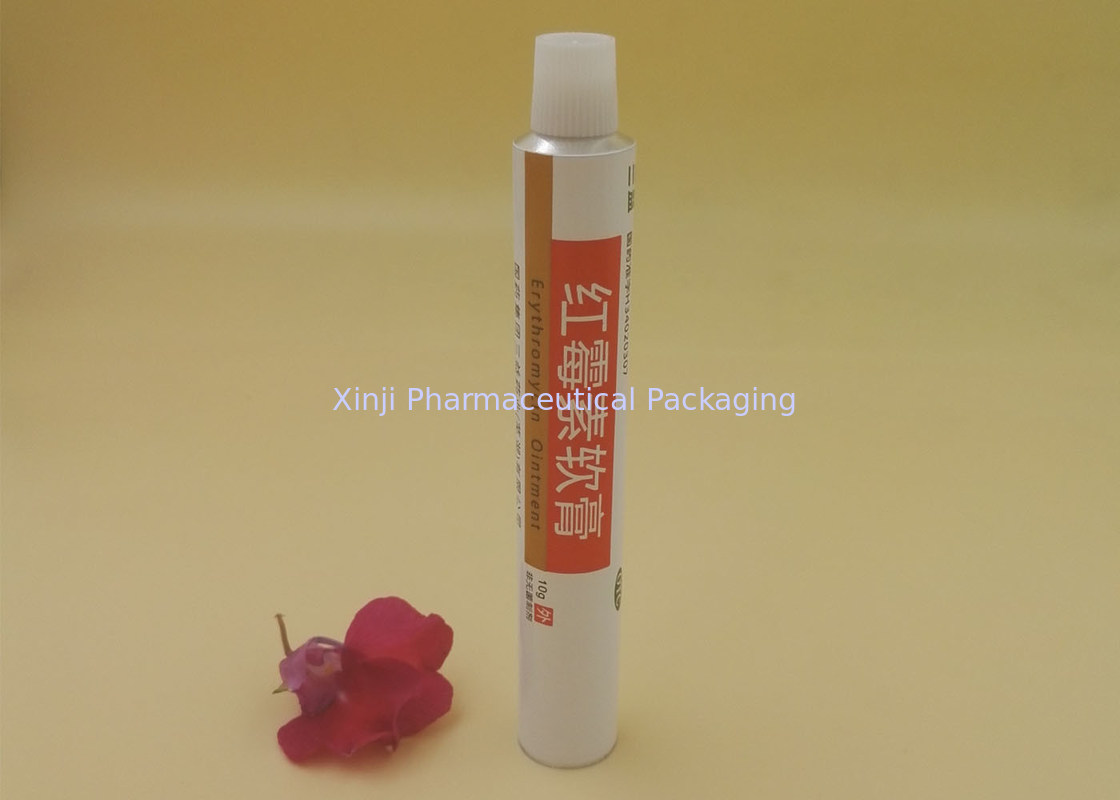

5 - 200 Gram Cream Aluminum Collapsible Tubes , Customized Empty Cream Tubes

5 - 200 Gram Cream Aluminum Collapsible Tubes , Customized Empty Cream Tubes

5 - 200 Gram Cream Aluminum Collapsible Tubes , Customized Empty Cream Tubes

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CFDA
Model Number: Dia 13.5mm - 40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 millions pcs per year
Contact Now
Detailed Product Description
Aluminum: > 99.7% Purity Color: Up To 6 Colors
Name: Ointment Gel Packaging Tube Capacity: 3ml - 200ml
Standard: BS2006-86 Certificate: ISO, CFDA
High Light:

aluminum tubes packaging

,

travel squeeze tube

Customized 5g - 200g Cream Pharma Tube , Ointment / Gel Packaging Tube



Main Features:



Tube Diameter Dia 13.5mm - 40mm (length can customize)
Tube Capacity 3-200ml
Aluminum Slug Aluminum>99.7% pure.
Color Ink up to 6 colors printing (with your logo and design)
Internal Lacquer Epoxy Phenolic Resin
External Base Coat Type-Enamel; Color-White (can customize).
Latex at the End Optional.
Cap Color-white/red/blue/yellow; material-HPPE



Closing Under an air pressure of 0.2Mpa,no leakage
Appearance Integrity and clean
Coating The color matches the standard,no exposure and no tiny oil droplets
Color printing Clear and entirety,the overprint is in position
Color difference Conform to the standard
Continuity(mA) ≤40
Flexibility and adhesion The lacquer did not split off and no crazing
Chemicals Wipe 30 times with acetone,the lacquer did not split off



Company Brief Introduction:



1. Located in China's central city of Wuhan city circle, Ezhou City, Hubei Province.



2. Established in 1981 with nearly 40 years' experience in aluminum tube manufacturing.



3. Our company brought in several high speed automatic production lines from Germany and Italy. We gather a professional management team, combine the tube manufacturing technology accumulated in nearly 40 years with scientific management, regard "make every tube trustworthy" as our quality concept to cover the whole process including products designing, developing, producing, transporting, and service.



4. The workshop were built in accordance with construction requirements of GMP in pharmaceutical production. And ensure our production and packing environment reach 100 thousand grade standard.



British Standard (BS2006-86):



British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard

Diameter
Tolerance of Diameter
Length
Tolerance of Length
Nozzle
Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm   mm mm mm mm
10




±0.1
60


±0.5
60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0
115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40   200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5



Alumminum collapsible Tube Specification sheet
Tube size(diameter) Standard(Length) Length Range Estimated Capacity
11mm 55mm 55-65mm 2-5ml
13.5mm 70mm 70-80mm 5-12ml
16mm 100mm 100ml-115ml 8-11ml
19mm 110mm 110mm-120mm 10-25ml
25mm could be designed 110-200mm 30-50ml
30mm     50-70ml
32mm     80-100ml
38mm     100-150ml
40mm     200-350ml
