Meticulously manufacture, different for you.
Place of Origin: | China |
Brand Name: | Xinji |
Certification: | ISO, CDFA |
Model Number: | Dia13.5mm-40mm |
Minimum Order Quantity: | 50000 pcs |
---|---|
Packaging Details: | box, carton and pallet; or other special packing as per your requirement. |
Delivery Time: | within 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 300 million pcs per year |
Material: | Aluminum 99.7% Purity | Diameter: | 13.5mm-40mm |
---|---|---|---|
Cap Type: | Screw Cap,flip Top Cap,customized Cap,etc | Nozzles: | Open, Elongated, Sealed , Etc. |
Origin: | Hubei, China ( Mainland ) | Name: | Adhesive Aluminum Packaging Tubes |
High Light: | squeeze tube containers,metal toothpaste tubes |

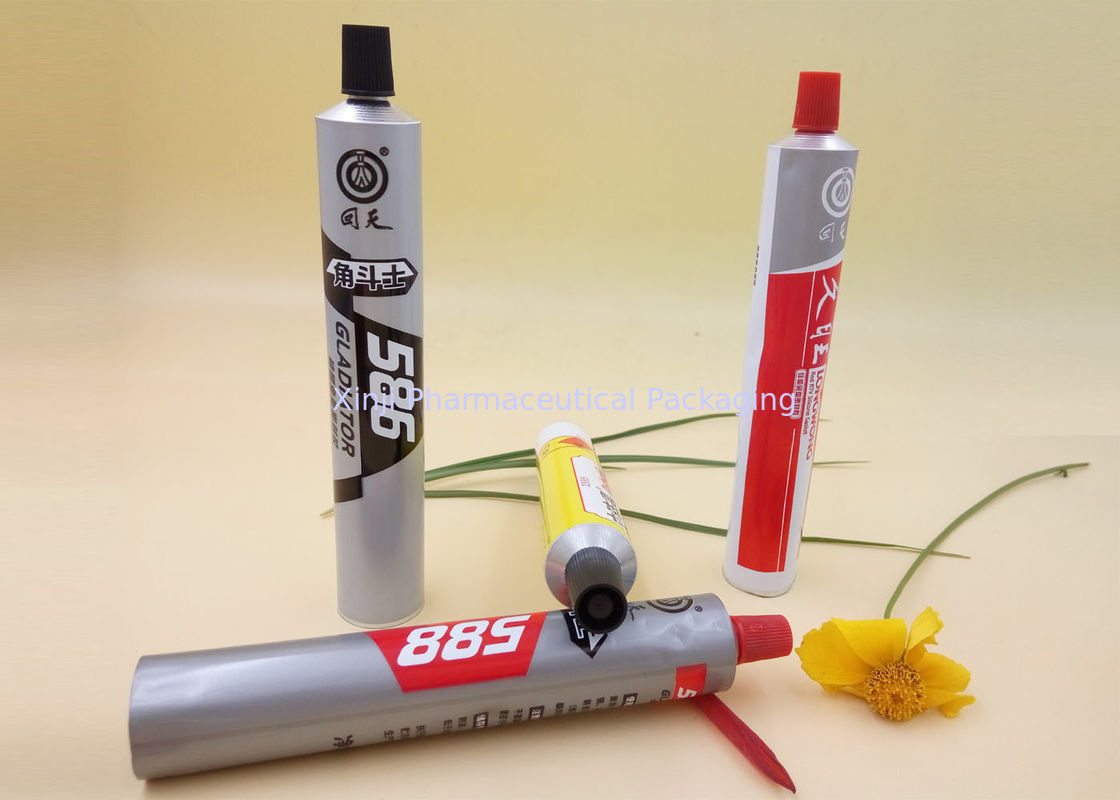

Chemical Industry Flexible Packaging Adhesive Tube Packaging With Printed Coating
British Standard of Aluminum Collapsible Tube BS2006-1984 | |||||||||
Sheet3 Size Standard | |||||||||
Diameter |
Tolerance of Diameter | Length |
Tolerance of Length | Nozzle |
Tube Wall Thickness | Shoulder Thickness | |||
Max | Min | Max | Min | Shoulder Angle Standard | |||||
mm | mm | mm | mm | mm | mm | mm | mm | ||
10 | ±0.1 |
60 | ±0.5 |
60 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ |
13.5 | 75 | 60 or 70 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ | ||
16 | 100 | 80 | 0.12 | 0.08 | 0.65 | 0.35 | 120℃ or 126℃ | ||
19 | 110 | 95 | 0.13 | 0.1 | 0.65 | 0.35 | 120℃ or 126℃ | ||
22 | 130 | 95 or 115 | 0.14 | 0.1 | 0.65 | 0.35 | |||
25 | 150 | 95 or 115 | 0.14 | 0.1 | 0.7 | 0.4 | No Standard | ||
28 | 165 | ±1.0 |
115 | 0.15 | 0.11 | 0.75 | 0.45 | ||
30 | 165 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
32 | 170 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
35 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
38 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
40 | 200 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
45 | ±0.25 | 200 | 115 or 135 | 0.18 | 0.12 | 0.9 | 0.5 | ||
The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle |
Advantage of Aluminum Pharmaceutical Tube Packaging:
* TAMPER-PROOF: Makes adulteration impossible. Cannot be re-filled or re-used.
* PROTECTIVE: Contents remain well protected and free from contamination.
* ELEGANT: Attractive Possess a bright surface and lend themselves to trouble-free printing, this enhances shelf and customer appeal.
* NON-TOXIC & HYGIENIC: Non -Toxic, hygienic, non-absorbent, Impart no * LIGHTWEIGHT: Easy to handle. Reduces transport and handling cost.
* COMPLETE COLLAPSIBILITY: Highly ductile, ensures complete collapsibility.
* EASY AVAILABILITY: Aluminum Collapsible tubes are easily available.
* ECONOMICAL: Costs less than Tin or lead tubes. Needs no varnish.
* USER CONVENIENCE: Easy to use, unbreakable, easy to carry, light in weight, hygienic.
Detailed Description of Aluminum Collapsible Hair Dye Packaging Tube:
* Material: aluminum purity>99.7%.
* Dimension: diameter from 13.5mm to 40mm, length can be customized
* Internal Lacquer: gold/silver/white colors, to keep the good nature of the cream etc. inside
* Roller Coating: white or other colors as your requests, to achieve the perfect printing effect
* Printing: six colors printing
* Bottom Latex: need or not, just depends on your requirements
* Nozzle Design: with membrane, open end, elongate nozzle, based on the customers' requirements
* Cap: various designs of caps for options
* Tube Shoulder: flat, brushed, polished, ringed or lacquered
Customer Service:
Adhere to the business philosophy “Meticulously manufacture, different for you”, we clearly understand the needs of customers, establish supply chain system and appropriate procedures based on customer needs to maximize customer satisfaction .
For any quality problems, analysis the cause with high standards in order to establish a long-term mechanism; Each employee should understand how their daily work affects the quality level and customer satisfaction, continue to improve their own work for better service to our customers.
Our Service:
We can deliver free samples if you need. Please feel free to contact us or email us.
It would be our great honor to send you some free samples for your quality test.
We promise "0" risk for you doing business with us, we will take 100% responsibility for our goods to avoid any lost for you. You can chose swap goods or expect a refund.
1. Once you get the package, please let us know your idea on our goods, packaging and service.
2. Any problems will be answered within 24hours
3. If you need us to improve the service, please feel free to contact us.
