Meticulously manufacture, different for you.
Place of Origin: | China |
Brand Name: | Xinji |
Certification: | ISO, CFDA |
Model Number: | Dia 13.5mm - 40mm |
Minimum Order Quantity: | 50000 pcs |
---|---|
Packaging Details: | Packed in strong carton,suitable for long distance ocean transportation. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 300 millions pcs per year |
Aluminum: | > 99.7% Purity | Color: | Up To 6 Colors |
---|---|---|---|
Name: | Flexible Medicine Tube | Capacity: | 3ml - 200ml |
Standard: | BS2006-86 | Certificate: | ISO, CFDA |
High Light: | collapsible aluminum tube,mini squeeze tubes |

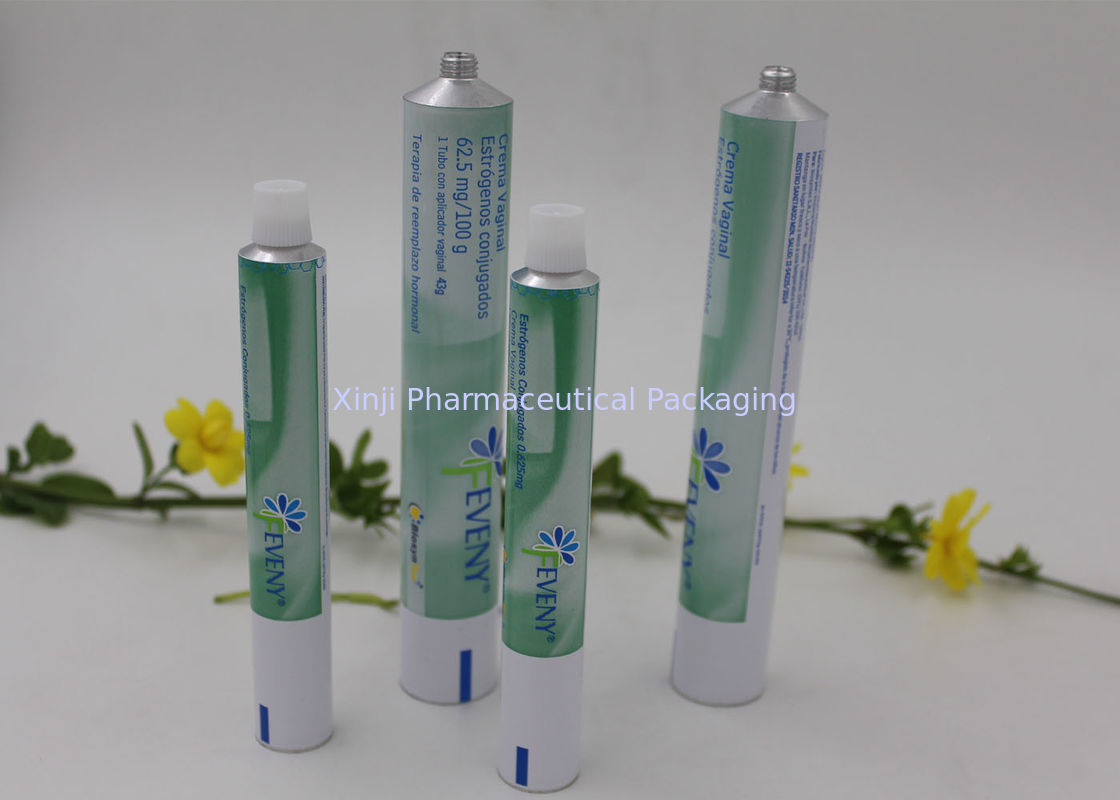

3ml - 200ml Flexible Medicine Tube , Aluminum Collapsible Tube with Screw Cap
Quick Details:
Aluminum Slugs | Aluminum>99.7% pure. |
Internal Lacquer | Type-Epoxy Phenolic Resin. |
External Base Coat | Type-Enamel; Color-White (can customize). |
Latex at the end | Optional |
Color Ink | up to 6 colors, Supplier-Shanghai DIC. |
CAP | Color-white/red/blue/yellow; material-HPPE. |
Manufacturing Environment | 100000-ton cleaning production packing workshop. |
Equipment | Germany PSG fully automatic production line. |
The standard of Inspection | in accordance with British Standard BS2006-86. |
Company Brief Introduction:
1. Located in China's central city of Wuhan city circle, Ezhou City, Hubei Province.
2. Established in 1981 with nearly 40 years' experience in aluminum tube manufacturing.
3. Our company brought in several high speed automatic production lines from Germany and Italy. We gather a professional management team, combine the tube manufacturing technology accumulated in nearly 40 years with scientific management, regard "make every tube trustworthy" as our quality concept to cover the whole process including products designing, developing, producing, transporting, and service.
4. The workshop were built in accordance with construction requirements of GMP in pharmaceutical production. And ensure our production and packing environment reach 100 thousand grade standard.
British Standard (BS2006-86):
British Standard of Aluminum Collapsible Tube BS2006-1984 | |||||||||
Sheet3 Size Standard | |||||||||
Diameter |
Tolerance of Diameter | Length |
Tolerance of Length | Nozzle |
Tube Wall Thickness | Shoulder Thickness | |||
Max | Min | Max | Min | Shoulder Angle Standard | |||||
mm | mm | mm | mm | mm | mm | mm | mm | ||
10 | ±0.1 |
60 | ±0.5 |
60 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ |
13.5 | 75 | 60 or 70 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ | ||
16 | 100 | 80 | 0.12 | 0.08 | 0.65 | 0.35 | 120℃ or 126℃ | ||
19 | 110 | 95 | 0.13 | 0.1 | 0.65 | 0.35 | 120℃ or 126℃ | ||
22 | 130 | 95 or 115 | 0.14 | 0.1 | 0.65 | 0.35 | |||
25 | 150 | 95 or 115 | 0.14 | 0.1 | 0.7 | 0.4 | No Standard | ||
28 | 165 | ±1.0 |
115 | 0.15 | 0.11 | 0.75 | 0.45 | ||
30 | 165 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
32 | 170 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
35 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
38 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
40 | 200 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
45 | ±0.25 | 200 | 115 or 135 | 0.18 | 0.12 | 0.9 | 0.5 |
Standard Nozzle:
A. Plastic on-sert nozzle No.2 tube
B. Metric (V thread) open nozzle
C. Metric (V thread) sealed nozzle (membrane)
D. Extended Plastic Nozzle
E. Extended Nozzle
F. Plastic on-sert nozzle
Advantage of Aluminum Pharmaceutical Tube Packaging:
* TAMPER-PROOF: Makes adulteration impossible. Cannot be re-filled or re-used.
* PROTECTIVE: Contents remain well protected and free from contamination.
* ELEGANT: Attractive Possess a bright surface and lend themselves to trouble-free printing, this enhances shelf and customer appeal.
* NON-TOXIC & HYGIENIC: Non -Toxic, hygienic, non-absorbent, Impart no * LIGHTWEIGHT: Easy to handle. Reduces transport and handling cost.
* COMPLETE COLLAPSIBILITY: Highly ductile, ensures complete collapsibility.
* EASY AVAILABILITY: Aluminum Collapsible tubes are easily available.
* ECONOMICAL: Costs less than Tin or lead tubes. Needs no varnish.
* USER CONVENIENCE: Easy to use, unbreakable, easy to carry, light in weight, hygienic.
