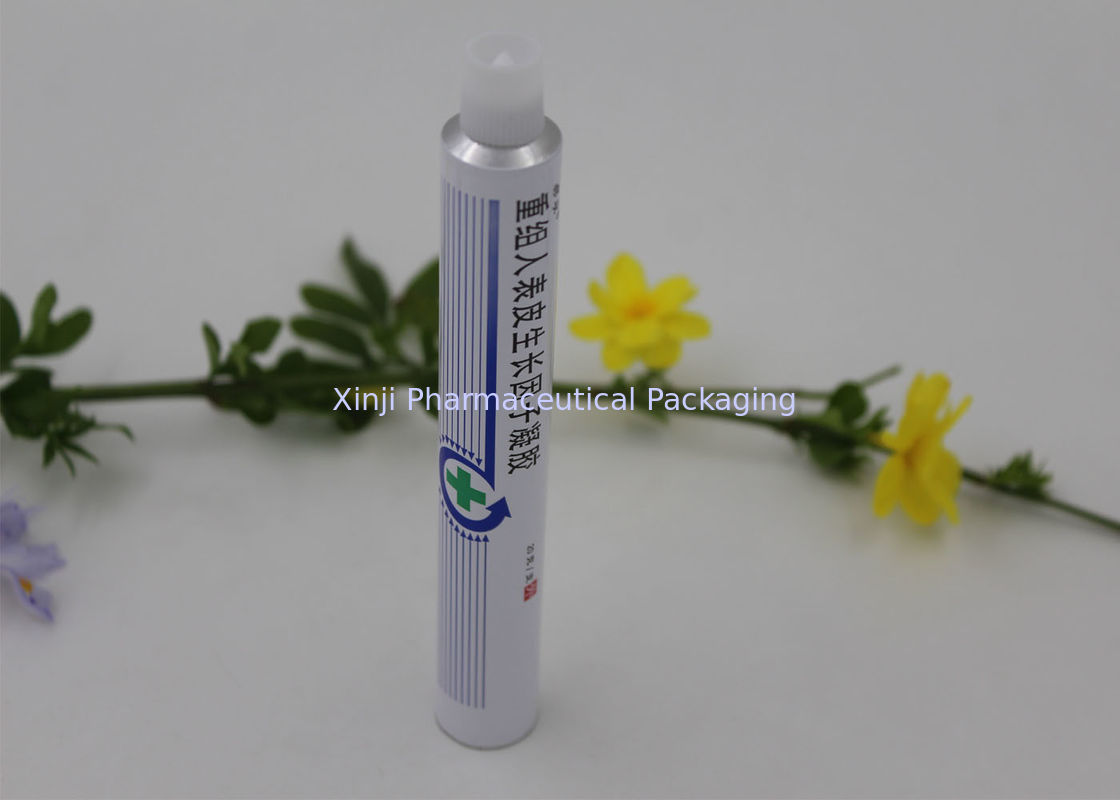

Name: BS Standard 5g - 200g Empty Ointment Tubes , 3 - 200ml Collapsible Aluminum Tube
Brand: Xinji
SKU: Dia 13.5mm - 40mm

Home Products Pharma/ Medicine Tube

BS Standard 5g - 200g Empty Ointment Tubes , 3 - 200ml Collapsible Aluminum Tube

Product Details:

Place of Origin:	China
Brand Name:	Xinji
Certification:	ISO, CFDA
Model Number:	Dia 13.5mm - 40mm

Payment & Shipping Terms:

Minimum Order Quantity:	50000 pcs
Packaging Details:	Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time:	30 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	300 millions pcs per year

Contact Now

Detailed Product Description

Aluminum:	> 99.7% Purity	Color:	Up To 6 Colors
Name:	Ointment/ Cream Aluminum Packaging Tube	Diameter:	13.5mm - 40mm
Capacity:	3 - 200ml	Certificate:	ISO, CFDA
High Light:	collapsible aluminum tube , mini squeeze tubes

BS Standard 5g - 200g Medicine Tube , Ointment / Cream Aluminum Packaging Tube

Quick Details:

Aluminum Slugs	Aluminum＞99.7% pure.
Internal Lacquer	Type-Epoxy Phenolic Resin.
External Base Coat	Type-Enamel; Color-White (can customize).
Latex at the end	Optional
Color Ink	up to 6 colors, Supplier-Shanghai DIC.
CAP	Color-white/red/blue/yellow; material-HPPE.
Manufacturing Environment	100000-ton cleaning production packing workshop.
Equipment	Germany PSG fully automatic production line.
The standard of Inspection	in accordance with British Standard BS2006-86.

Company Brief Introduction:

1. Located in China's central city of Wuhan city circle, Ezhou City, Hubei Province.

2. Established in 1981 with nearly 40 years' experience in aluminum tube manufacturing.

3. Our company brought in several high speed automatic production lines from Germany and Italy. We gather a professional management team, combine the tube manufacturing technology accumulated in nearly 40 years with scientific management, regard "make every tube trustworthy" as our quality concept to cover the whole process including products designing, developing, producing, transporting, and service.

4. The workshop were built in accordance with construction requirements of GMP in pharmaceutical production. And ensure our production and packing environment reach 100 thousand grade standard.

British Standard (BS2006-86):

British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard
Diameter	Tolerance of Diameter	Length	Tolerance of Length	Nozzle	Tube Wall Thickness		Shoulder Thickness
Diameter	Tolerance of Diameter	Length	Tolerance of Length	Nozzle	Max	Min	Max	Min	Shoulder Angle Standard
mm	mm	mm	mm		mm	mm	mm	mm
10	±0.1	60	±0.5	60	0.11	0.07	0.5	0.3	90℃ or 120℃ or 126℃
13.5		75		60 or 70	0.11	0.07	0.5	0.3	90℃ or 120℃ or 126℃
16		100		80	0.12	0.08	0.65	0.35	120℃ or 126℃
19		110		95	0.13	0.1	0.65	0.35	120℃ or 126℃
22		130		95 or 115	0.14	0.1	0.65	0.35
25		150		95 or 115	0.14	0.1	0.7	0.4	No Standard
28		165	±1.0	115	0.15	0.11	0.75	0.45
30		165		115	0.16	0.11	0.75	0.45
32		170		115	0.16	0.11	0.75	0.45
35		185		115	0.16	0.11	0.75	0.45
38		185		115	0.16	0.11	0.75	0.45
40		200		115	0.16	0.11	0.75	0.45
45	±0.25	200		115 or 135	0.18	0.12	0.9	0.5

Advantages:

Quality	All select superior raw material, with mature producing technology and high standard quality control and inspection system, we can greatly guarantee the quality.
Price	Factory direct sells, offering you the most competitive price!
Service	Quick response on quotation, sample and after-service.
Experience	Nearly 40 years' accumulated producing experience in this field.
Production Lines	Full automatic production lines from Germany and Italy.

FAQ:

1. Are you trading company or manufacturer?
We are the 3rd largest manufacturer in this industry in China.
2. How to get samples?
Samples without customized printing are free.
Also we can customize samples with your design for your testing at local, but it will take some charges.
3. How long is your delivery time?
Generally it is within 30 days after we sign the contract and confirm the artwork.
4. What's your payment term?
T/T, L/C, Western Union, etc.

Advantages:

1. Scale. Top 3 manfuacturer of collapsible aluminum tubes in whole China, with annual capacity of 300 million pcs.
2. Experience. Nearly 40 years' accumulated specialized producing experience in this field.
3. Production Lines. Full automatic production lines from Germany and Italy.
4. Quality. All select superior raw material, with mature producing technology and high standard quality control and inspection system, we can greatly guarantee the quality.
5. Price. Factory direct sells, offering you the most competitive price!
6. Service. Quick response on quotation, sample and after-service.

Standard Nozzle:

A. Plastic on-sert nozzle No.2 tube

B. Metric (V thread) open nozzle

C. Metric (V thread) sealed nozzle (membrane)

D. Extended Plastic Nozzle

E. Extended Nozzle

F. Plastic on-sert nozzle

Tag:

Contact Person: Ms. Echo

Tel: 0086-15871390717
