Name: Aluminum Packaging Pharma Tube For Ointment Cream Optional End Latex
Brand: Xinji
SKU: Dia 13.5mm - 40mm

Home Products Pharma/ Medicine Tube

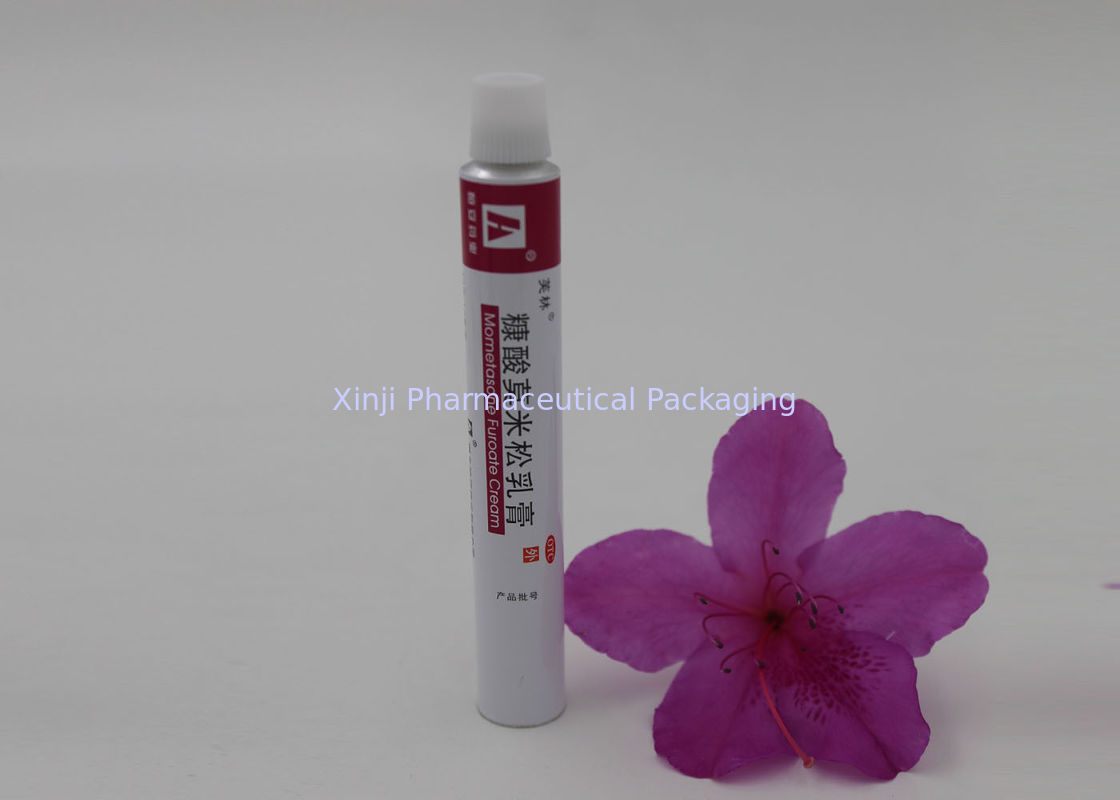

Aluminum Packaging Pharma Tube For Ointment Cream Optional End Latex

Product Details:

Place of Origin:	China
Brand Name:	Xinji
Certification:	ISO, CFDA
Model Number:	Dia 13.5mm - 40mm

Payment & Shipping Terms:

Minimum Order Quantity:	50000 pcs
Packaging Details:	Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time:	30 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	300 millions pcs per year

Contact Now

Detailed Product Description

Aluminum:	> 99.7% Purity	Color:	Up To 6 Colors
Name:	Aluminum Packaging Pharma Tube	Diameter:	13.5mm - 40mm
Capacity:	3ml - 200ml	Application:	Packaging Tube For Ointment Cream
High Light:	aluminum tubes packaging , travel squeeze tube

Aluminum Packaging Pharma Tube , Medicine Packaging Tube for Ointment Cream

CERTIFICATE OF ANALYSIS
Test item	Standard		Testing result	conclusion
Dimensions And appearance	Diameter(mm)	F19± 0.1	19	qualified
	Length (mm)	L120± 0.5	120	qualified
	Closing	Under an air pressure of 0.2Mpa,no leakage	No leakage	qualified
	Appearance	Integrity and clean	Integrity and clean	qualified
The coat printing	Coating	The color matches the standard,no exposure and no tiny oil droplets	The color matches the standard,no exposure and no tiny oil droplets	qualified
	Color printing	Clear and entirety,the overprint is in position	Clear and entirety,the overprint is in position	qualified
	Color difference	Conform to the standard	Conform to the standard	qualified
Internal coating	Continuity(mA)	≤40	10	qualified
	Flexibility and adhesion	The lacquer did not split off and no crazing	No splitting off and no crazing	qualified
	Chemicals	Wipe 30 times with acetone,the lacquer did not split off	No splitting off	qualified
Annealing	≤8 mm(No bottom plate)		5	qualified
Sterilization	By Ozone in 30 minutes			qualified
Microgerm limitation inspection	Bacteria	<5 item/ml	0 item/ml	qualified
	Tungi	<5 item/ml	0 item/ml	qualified
	Inaurate staphy	None	None	qualified
	Aerugo pseudomonad	None	None	qualified
Package	Wholeness and clean		Wholeness and clean	qualified

Advantages:

* All select superior raw material, with mature producing technology and high standard quality control and inspection system, we can greatly guarantee the quality.

* Factory direct sells, offering you the most competitive price!

* Quick response on quotation, sample and after-service.

* Top 3 manfuacturer of collapsible aluminum tubes in whole China, with annual capacity of 300 million pcs.

* Nearly 40 years' accumulated specialized producing experience in this field.

* Full automatic production lines from Germany and Italy.

British Standard (BS2006-86):

British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard
Diameter	Tolerance of Diameter	Length	Tolerance of Length	Nozzle	Tube Wall Thickness		Shoulder Thickness
Diameter	Tolerance of Diameter	Length	Tolerance of Length	Nozzle	Max	Min	Max	Min	Shoulder Angle Standard
mm	mm	mm	mm		mm	mm	mm	mm
10	±0.1	60	±0.5	60	0.11	0.07	0.5	0.3	90℃ or 120℃ or 126℃
13.5		75		60 or 70	0.11	0.07	0.5	0.3	90℃ or 120℃ or 126℃
16		100		80	0.12	0.08	0.65	0.35	120℃ or 126℃
19		110		95	0.13	0.1	0.65	0.35	120℃ or 126℃
22		130		95 or 115	0.14	0.1	0.65	0.35
25		150		95 or 115	0.14	0.1	0.7	0.4	No Standard
28		165	±1.0	115	0.15	0.11	0.75	0.45
30		165		115	0.16	0.11	0.75	0.45
32		170		115	0.16	0.11	0.75	0.45
35		185		115	0.16	0.11	0.75	0.45
38		185		115	0.16	0.11	0.75	0.45
40		200		115	0.16	0.11	0.75	0.45
45	±0.25	200		115 or 135	0.18	0.12	0.9	0.5
