Meticulously manufacture, different for you.
Place of Origin: | China |
Brand Name: | Xinji |
Certification: | ISO, CFDA |
Model Number: | Dia 13.5mm - 40mm |
Minimum Order Quantity: | 50000 pcs |
---|---|
Packaging Details: | Packed in strong carton,suitable for long distance ocean transportation. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 300 millions pcs per year |
Aluminum Slugs: | > 99.7% Purity Aluminum | Color: | Up To 6 Colors |
---|---|---|---|
Name: | Medicine Aluminum Tube | Capacity: | 3ml - 200ml |
Standard: | BS2006-86 | Sample: | Available, Free |
High Light: | travel squeeze tube,empty lotion tubes |

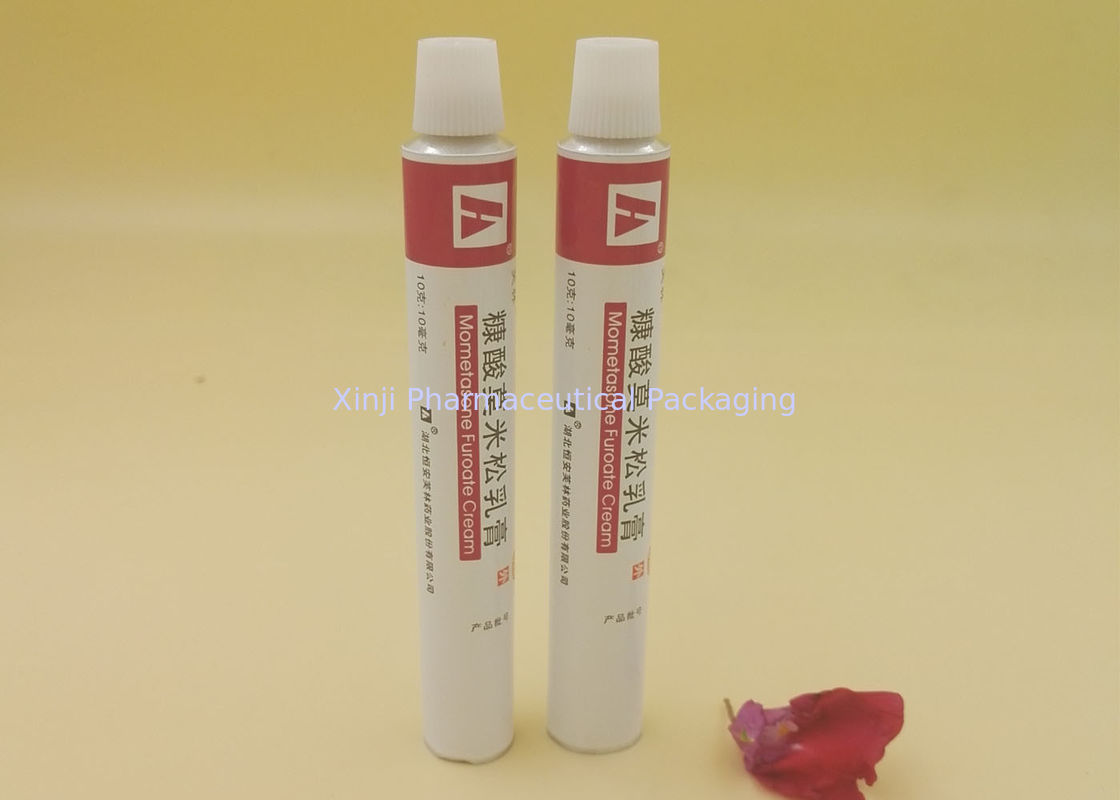

Dia 16mm Ointment Pharma Tube , 10g Medicine Aluminum Tube with Screw Cap
Details:
Aluminum Slugs | Aluminum>99.7% pure. |
Internal Lacquer | Type-Epoxy Phenolic Resin. |
External Base Coat | Type-Enamel; Color-White (can customize). |
Latex at the end | Optional |
Color Ink | up to 6 colors, Supplier-Shanghai DIC. |
CAP | Color-white/red/blue/yellow; material-HPPE. |
Manufacturing Environment | 100000-ton cleaning production packing workshop. |
Equipment | Germany PSG fully automatic production line. |
The standard of Inspection | in accordance with British Standard BS2006-86. |
Company Brief Introduction:
Hubei Xinji Pharmaceutical Packaging Co.,Ltd located in China’s central city of Wuhan city circle, established in 1981 with nearly 40 years experience in aluminum tube manufacturing.
We are the 3rd largest manufacturer of collapsible aluminum tube industry. Our Aluminum tube is made of good quality aluminum material with advanced printing machine in a GMP workshop. These tubes are widely used for pharmaceutical ointment/cream packing, and also cosmetic packing, such as hair dying cream, hair bleaching cream, etc.
Our company brought in several high speed automatic production lines from Germany and Italy. We gather a professional management team, combine the tube manufacturing technology accumulated in nearly 40 years with scientific management, regard "make every tube trustworthy" as our quality concept to cover the whole process including products designing, developing, producing, transporting, and service.
The workshop were built in accordance with construction requirements of GMP in pharmaceutical production. And ensure our production and packing environment reach 100 thousand grade standard.
British Standard of Aluminum Collapsible Tube BS2006-1984 | |||||||||
Sheet3 Size Standard | |||||||||
Diameter |
Tolerance of Diameter | Length |
Tolerance of Length | Nozzle |
Tube Wall Thickness | Shoulder Thickness | |||
Max | Min | Max | Min | Shoulder Angle Standard | |||||
mm | mm | mm | mm | mm | mm | mm | mm | ||
10 | ±0.1 |
60 | ±0.5 |
60 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ |
13.5 | 75 | 60 or 70 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ | ||
16 | 100 | 80 | 0.12 | 0.08 | 0.65 | 0.35 | 120℃ or 126℃ | ||
19 | 110 | 95 | 0.13 | 0.1 | 0.65 | 0.35 | 120℃ or 126℃ | ||
22 | 130 | 95 or 115 | 0.14 | 0.1 | 0.65 | 0.35 | |||
25 | 150 | 95 or 115 | 0.14 | 0.1 | 0.7 | 0.4 | No Standard | ||
28 | 165 | ±1.0 |
115 | 0.15 | 0.11 | 0.75 | 0.45 | ||
30 | 165 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
32 | 170 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
35 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
38 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
40 | 200 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
45 | ±0.25 | 200 | 115 or 135 | 0.18 | 0.12 | 0.9 | 0.5 |
Standard Nozzle:
A. Plastic on-sert nozzle No.2 tube
B. Metric (V thread) open nozzle
C. Metric (V thread) sealed nozzle (membrane)
D. Extended Plastic Nozzle
E. Extended Nozzle
F. Plastic on-sert nozzle
