Meticulously manufacture, different for you.
Place of Origin: | China |
Brand Name: | Xinji |
Certification: | ISO, CFDA |
Model Number: | Dia 13.5mm - 40mm |
Minimum Order Quantity: | 50000 pcs |
---|---|
Packaging Details: | Packed in strong carton,suitable for long distance ocean transportation. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 300 millions pcs per year |
Material: | 99.7% Aluminum | Color: | Up To 6 Colors |
---|---|---|---|
Name: | Aluminum Soft Packaging Tubes | Nozzles: | Open, Elongated, Sealed |
Usage: | Pet Hairball Remover Packaging Tubes | Artwork: | Customized |

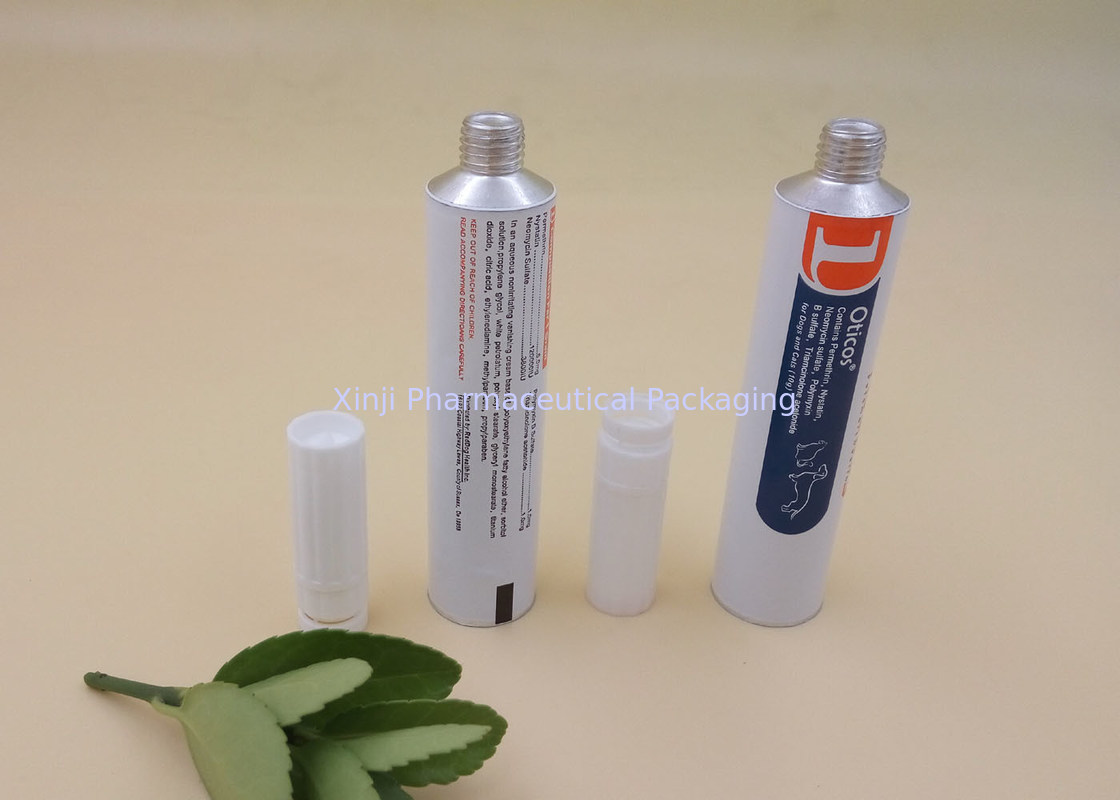

Nutritional Gel Packaging Tubes , Hairball Remover Tube , Collapsible Aluminum Tubes Package
Description:
Hubei Xinji Pharmaceutical Packaging Co.,Ltd located in China’s central city of Wuhan city circle, established in 1981 with nearly 40 years experience in aluminum tube manufacturing.
We are the 3rd largest manufacturer of collapsible aluminum tube industry. Our Aluminum tube is made of good quality aluminum material with advanced printing machine in a GMP workshop. These tubes are widely used for pharmaceutical ointment/cream packing, and also cosmetic packing, such as hair dying cream, hair bleaching cream, etc.
1. CAP: Colour - white / red / blue, Type - Conual Piercer, Material: HPPE.
2. Aluminum Blamks: Aluminum>99.7% pure.
3. Internal Lacquer: Type-Expoxy-Phenolic Resin.
4. External Base Coat: Type-Enamel;Colour-White.
5. Colour Ink: Suplier-Shanghai DIC.
6. Crimp sealant brand: PPG.
7. Manufacturing Environment: The construction of 100000-ton cleaning production packing workshop.
8. Equipment: Germany PSG fully automatic production line.
9. The standard of Inspection: BS2006-86 Aluminum tube for medicine ointment.
10. Closing: Under an air pressure of 0.2Mpa, no leakage.
11. Appearance: Integrity and clean.
12. Coating: The color matches the standard,no exposure and no tiny oil droplets.
13. Color printing: Clear and entirety, the overprint is in position.
14. Flexibility and adhesion: The lacquer did not split off and no crazing.
15. Package: Wholeness and clean.
Size & Volume | |||||
Diameter (mm) |
13.5 | 16 | 19 | 22 | 25 |
Length (mm) |
55 ↓ 100 |
55 ↓ 105 |
80 ↓ 130 |
85 ↓ 140 |
95 ↓ 160 |
Content (ml) |
4.5 ↓ 7 |
7 ↓ 12 |
14 ↓ 24 |
20 ↓ 35 |
30 ↓ 55 |
British Standard of Aluminum Collapsible Tube BS2006-1984 | |||||||||
Sheet3 Size Standard | |||||||||
Diameter |
Tolerance of Diameter | Length |
Tolerance of Length | Nozzle |
Tube Wall Thickness | Shoulder Thickness | |||
Max | Min | Max | Min | Shoulder Angle Standard | |||||
mm | mm | mm | mm | mm | mm | mm | mm | ||
10 | ±0.1 |
60 | ±0.5 |
60 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ |
13.5 | 75 | 60 or 70 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ | ||
16 | 100 | 80 | 0.12 | 0.08 | 0.65 | 0.35 | 120℃ or 126℃ | ||
19 | 110 | 95 | 0.13 | 0.1 | 0.65 | 0.35 | 120℃ or 126℃ | ||
22 | 130 | 95 or 115 | 0.14 | 0.1 | 0.65 | 0.35 | |||
25 | 150 | 95 or 115 | 0.14 | 0.1 | 0.7 | 0.4 | No Standard | ||
28 | 165 | ±1.0 |
115 | 0.15 | 0.11 | 0.75 | 0.45 | ||
30 | 165 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
32 | 170 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
35 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
38 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
40 | 200 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
45 | ±0.25 | 200 | 115 or 135 | 0.18 | 0.12 | 0.9 | 0.5 | ||
The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle |
Customer Service:
Adhere to the business philosophy “Meticulously manufacture, different for you”, we clearly understand the needs of customers, establish supply chain system and appropriate procedures based on customer needs to maximize customer satisfaction .
For any quality problems, analysis the cause with high standards in order to establish a long-term mechanism; Each employee should understand how their daily work affects the quality level and customer satisfaction, continue to improve their own work for better service to our customers.
Our Service:
We can deliver free samples if you need. Please feel free to contact us or email us.
It would be our great honor to send you some free samples for your quality test.
We promise "0" risk for you doing business with us, we will take 100% responsibility for our goods to avoid any lost for you. You can chose swap goods or expect a refund.
1. Once you get the package, please let us know your idea on our goods, packaging and service.
2. Any problems will be answered within 24hours
3. If you need us to improve the service, please feel free to contact us.
Contact Person: Ms. Echo
Tel: 0086-15871390717
