| Place of Origin: | China |
| Brand Name: | Xinji |
| Certification: | ISO, CFDA |
| Model Number: | Dia 13.5mm - 40mm |
| Minimum Order Quantity: | 50000 pcs |
|---|---|
| Packaging Details: | Packed in strong carton,suitable for long distance ocean transportation. |
| Delivery Time: | 30 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 300 millions pcs per year |
| Aluminum: | > 99.7% Purity | Color: | Up To 6 Colors |
|---|---|---|---|
| Name: | Empty Collapsible Medicine Tube | Diameter: | 13.5mm - 40mm |
| Standard: | BS2006-86 | Sample: | Free |
| High Light: | aluminum tubes packaging,travel squeeze tube |
||

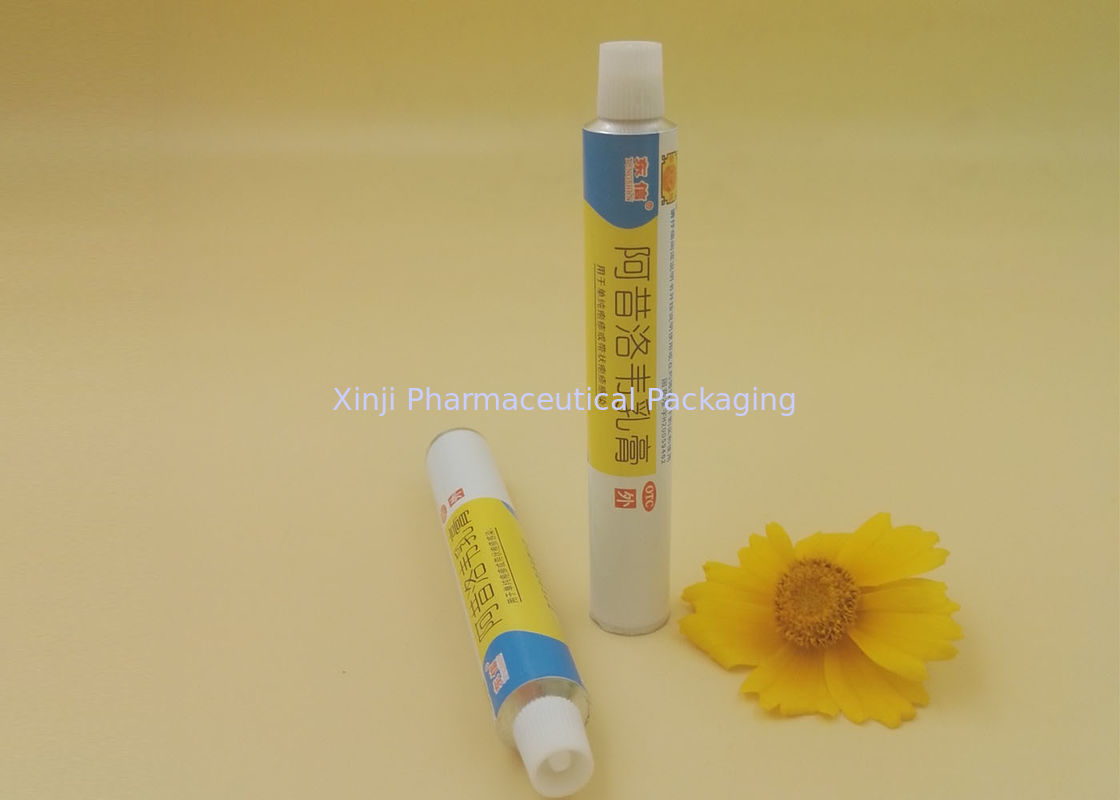

Colorful Printed Aluminum 30g Pharma Tube Empty Collapsible Medicine Tube
Main Features:
| Tube Diameter | Dia 13.5mm - 40mm (length can customize) |
| Tube Capacity | 3-200ml |
| Aluminum Slug | Aluminum＞99.7% pure. |
| Color Ink | up to 6 colors printing (with your logo and design) |
| Internal Lacquer | Epoxy Phenolic Resin |
| External Base Coat | Type-Enamel; Color-White (can customize). |
| Latex at the End | Optional. |
| Cap | Color-white/red/blue/yellow; material-HPPE |
| Useage | Pharmaceutical, cosmetic, food, adhesive packaging, etc. |
| CAP | Colour-white/red/blue; Type-Conual Piercer; material-HPPE. |
| Aluminum Blamks | Aluminum＞99.7% pure. |
| Internal Lacquer | Type-Expoxy-Phenolic Resin. |
| External Base Coat | Type-Enamel;Colour-White. |
| Colour Ink | Suplier-Shanghai DIC. |
| Crimp sealant brand | PPG. |
| Manufacturing Environment | The construction of 100000-ton cleaning production packing workshop. |
| The standard of Inspection | BS2006-86 Aluminum collapsible tube for medicine ointment. |
| Closing | Under an air pressure of 0.2Mpa,no leakage |
| Appearance | Integrity and clean |
| Coating | The color matches the standard,no exposure and no tiny oil droplets |
| Color printing | Clear and entirety,the overprint is in position |
| Flexibility and adhesion | The lacquer did not split off and no crazing |
| Chemicals | Wipe 30 times with acetone,the lacquer did not split off |
| Package | Wholeness and clean |
Company Brief Introduction:
1. Located in China's central city of Wuhan city circle, Ezhou City, Hubei Province.
2. Established in 1981 with nearly 40 years' experience in aluminum soft tube manufacturing.
3. Our company brought in several high speed automatic production lines from Germany and Italy. We gather a professional management team, combine the tube manufacturing technology accumulated in nearly 40 years with scientific management, regard "make every tube trustworthy" as our quality concept to cover the whole process including products designing, developing, producing, transporting, and service.
4. The workshop were built in accordance with construction requirements of GMP in pharmaceutical production. And ensure our production and packing environment reach 100 thousand grade standard.
| British Standard of Aluminum Collapsible Tube BS2006-1984 | |||||||||
| Sheet3 Size Standard | |||||||||
Diameter |
Tolerance of Diameter | Length |
Tolerance of Length | Nozzle |
Tube Wall Thickness | Shoulder Thickness | |||
| Max | Min | Max | Min | Shoulder Angle Standard | |||||
| mm | mm | mm | mm | mm | mm | mm | mm | ||
| 10 | ±0.1 |
60 | ±0.5 |
60 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ |
| 13.5 | 75 | 60 or 70 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ | ||
| 16 | 100 | 80 | 0.12 | 0.08 | 0.65 | 0.35 | 120℃ or 126℃ | ||
| 19 | 110 | 95 | 0.13 | 0.1 | 0.65 | 0.35 | 120℃ or 126℃ | ||
| 22 | 130 | 95 or 115 | 0.14 | 0.1 | 0.65 | 0.35 | |||
| 25 | 150 | 95 or 115 | 0.14 | 0.1 | 0.7 | 0.4 | No Standard | ||
| 28 | 165 | ±1.0 |
115 | 0.15 | 0.11 | 0.75 | 0.45 | ||
| 30 | 165 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 32 | 170 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 35 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 38 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 40 | 200 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
| 45 | ±0.25 | 200 | 115 or 135 | 0.18 | 0.12 | 0.9 | 0.5 | ||
FAQ:
1. Are you trading company or manufacturer?
We are the 3rd largest manufacturer in this industry in China, located in central China with nearly 40 years.
2. How to get samples?
Samples without customized printing are free.
Also we can customize samples with your design for your testing at local, but it will take some charges.
3. How long is your delivery time?
Generally it is within 30 days after we sign the contract and confirm the artwork.
4. What's your payment term?
T/T, L/C, Western Union, etc.
