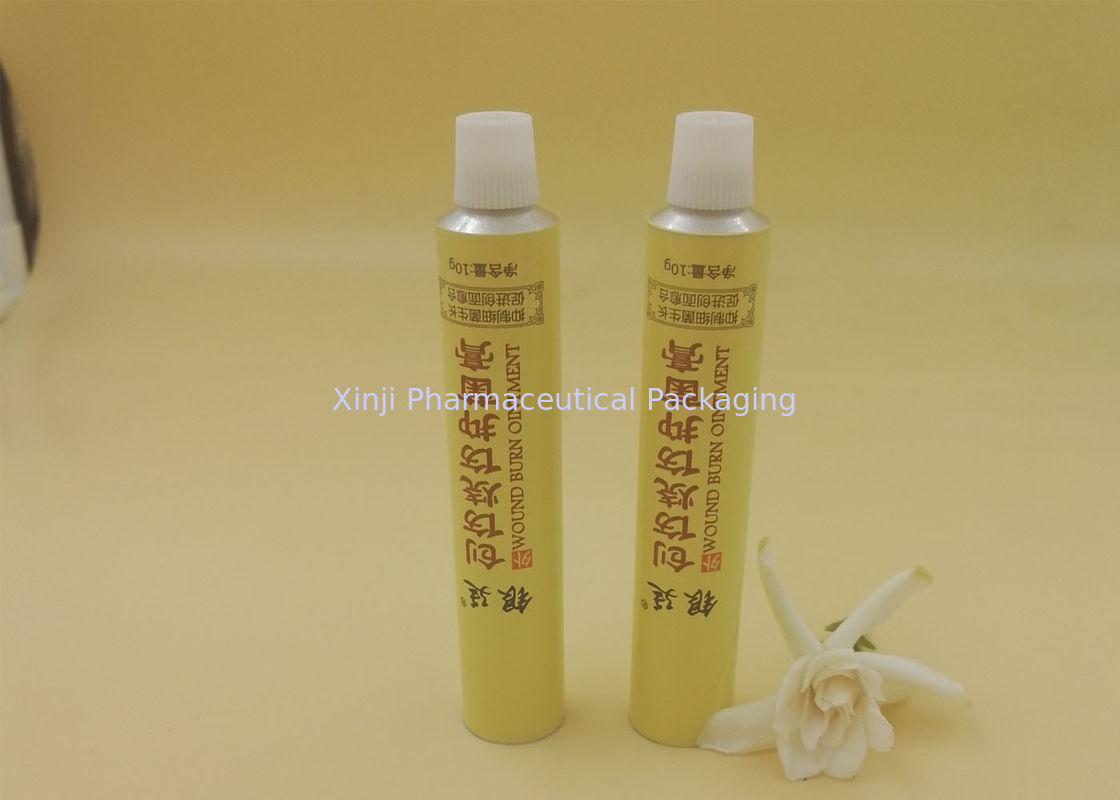

Metal Soft Pharma Tube 13.5 Mm - 40 Mm Diameter Free Sample Eco - Friendly

Metal Soft Pharma Tube 13.5 Mm - 40 Mm Diameter Free Sample Eco - Friendly

Metal Soft Pharma Tube 13.5 Mm - 40 Mm Diameter Free  Sample Eco - Friendly

Product Details:

Place of Origin: China
Brand Name: Xinji
Certification: ISO, CFDA
Model Number: Dia 13.5mm - 40mm

Payment & Shipping Terms:

Minimum Order Quantity: 50000 pcs
Packaging Details: Packed in strong carton,suitable for long distance ocean transportation.
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 millions pcs per year
Contact Now
Detailed Product Description
Raw Material: > 99.7% Purity Aluminum Color: Up To 6 Colors
Name: Soft Pharma Tube Capacity: 3ml - 200ml
Diameter: 13.5mm - 40mm Sample: Free
High Light:

travel squeeze tube

,

empty lotion tubes

Metal Squeeze Soft Pharma Tube , Empty Pharma Tube with Dia 13.5mm - 40mm



Quick Details:


1. CAP: Color-white/red/blue/yellow; material-HPPE.
2. Aluminum Slugs: Aluminum>99.7% pure.
3. Internal Lacquer: Type-Epoxy Phenolic Resin.
4. External Base Coat: Type-Enamel; Color-White (can customize).
5. Color Ink: up to 6 colors, Supplier-Shanghai DIC.
6. Latex at the end: PPG.
7. Manufacturing Environment: 100000-ton cleaning production packing workshop.
8. Equipment: Germany PSG fully automatic production line.
9. The standard of Inspection: in accordance with British Standard BS2006-86.



Aluminum collapsible Tube Specification sheet
Fill Volume Suggested Tube Size(diameter&height)
2-5ml Dia11mm*H55mm, Dia13.5mm*H70mm,
5-12ml Dia13.5mm*H70mm, Dia16mm*H100mm,
19-25ml Dia19mm, 25mm, 30mm, 32mm, 38mm, the height could be designed as customer's request
35-50ml dia25mm
60-80ml dia30ml,32ml
125-150ml dia32ml,35ml
150-200ml dia35mm,40mm



British Standard of Aluminum Collapsible Tube BS2006-1984
Sheet3 Size Standard

Diameter
Tolerance of Diameter
Length
Tolerance of Length
Nozzle
Tube Wall Thickness Shoulder Thickness
Max Min Max Min Shoulder Angle Standard
mm mm mm mm   mm mm mm mm
10




±0.1
60


±0.5
60 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
13.5 75 60 or 70 0.11 0.07 0.5 0.3 90℃ or 120℃ or 126℃
16 100 80 0.12 0.08 0.65 0.35 120℃ or 126℃
19 110 95 0.13 0.1 0.65 0.35 120℃ or 126℃
22 130 95 or 115 0.14 0.1 0.65 0.35
25 150 95 or 115 0.14 0.1 0.7 0.4 No Standard
28 165


±1.0
115 0.15 0.11 0.75 0.45
30 165 115 0.16 0.11 0.75 0.45
32 170 115 0.16 0.11 0.75 0.45
35 185 115 0.16 0.11 0.75 0.45
38 185 115 0.16 0.11 0.75 0.45
40   200 115 0.16 0.11 0.75 0.45
45 ±0.25 200 115 or 135 0.18 0.12 0.9 0.5



Advantages:



1. We are Top 3 manfuacturer of aluminum collapsible tubes in whole China, with annual capacity of 300 million pcs.



2. In our factory, we have professional quality control personnel in every production department. Their job is to check the products quality in every step of the processes.


3. Skillful workers take care of every detail during producing and packaging process.


4. Our salers will always be responsible for the quality and details, they need to pay great attention for his/her production instead of clients.



5. Experience. Nearly 40 years' accumulated specialized producing experience in this field.



6. Production Lines. Full automatic production lines from Germany and Italy.



7. Quality. All select superior raw material, with mature producing technology and high standard quality control and inspection system, we can greatly guarantee the quality.



8. Price. Factory direct sells, offering you the most competitive price!



9. Service. Quick response on quotation, sample and after-service.



INSPECTION RECORD
Items Standard Testing Result Conclusion
Component material Aluminum > 99.7% Aluminum > 99.7% Conform
Dimensions and appearance Diameter(mm) 19±0.1 18.95-19.05 Conform
  Length(mm) 110±0.3 109.82-110.26 Conform
  Wall thickness(mm) 0.11-0.14 0.11-0.14 Conform
  Appearance Without deformation, damage Without deformation, damage Conform
  Weight of tube 3g 3g Conform
  Weight of cap 0.6g 0.6g Conform
  Weight of tube with cap 3.6g 3.6g Conform
  Cap Dimension 13.2mm(base diameter) 13.2mm(base diameter) Conform
    11.5mm(top diameter) 11.5mm(top diameter) Conform
    12.3mm(height) 12.3mm(height) Conform
Coating and printing Internal Lacquer Epoxy phenolic Epoxy phenolic Conform
  External Lacquer White color matches standard, no exposure, no bubble White color matches standard, no exposure, no bubble Conform
  Printing Clear, entirety and in position Clear, entirety and in position Conform
  Color Differece According to sample's color variation range According to sample's color variation range Conform
  Flexibillity and adhesion The lacquer doesn't split off abd bi crackle The lacquer doesn't split off abd bi crackle Conform
  Chemical Stability Wipe 30 times with acetone slightly the lacquer doesn't split off No splitting off Conform
Internal coating Electrical-continuity ≤90 mA ≤32 mA Conform
  Chemical Stability Wipe 30 times with acetone slightly the lacquer doesn't split off No splitting off Conform
Annealing malleability test <10mm 7-9 Conform
Closing and sealing test under an air pressure of 0.2Mpa, no leakage No leakage Conform
Latex Uniformity Applied uniformly without thickening and sagging Applied uniformly without thickening and sagging Conform
Micro germ limitation inspection Bacteria <5 item/ml 0 item/ml Conform
  Fungi <5 item/ml 0 item/ml Conform
  Staphylococcus aureus None None Conform
  Pseudomonas aeruginosa None None Conform
Package Wholeness and clean Wholeness and clean Conform
Conclusion Qulified
