Meticulously manufacture, different for you.
Place of Origin: | China |
Brand Name: | Xinji |
Certification: | ISO, CFDA |
Model Number: | Dia 13.5mm - 40mm |
Minimum Order Quantity: | 50000 pcs |
---|---|
Packaging Details: | Packed in strong carton,suitable for long distance ocean transportation. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 300 millions pcs per year |
Raw Material: | > 99.7% Purity Aluminum | Color: | Up To 6 Colors |
---|---|---|---|
Name: | Aluminum Ointment Packaging Tube | Volume: | 5g - 200g |
Standard: | BS2006-86 | Nozzle: | Can Customize |
High Light: | aluminum tubes packaging,empty lotion tubes |

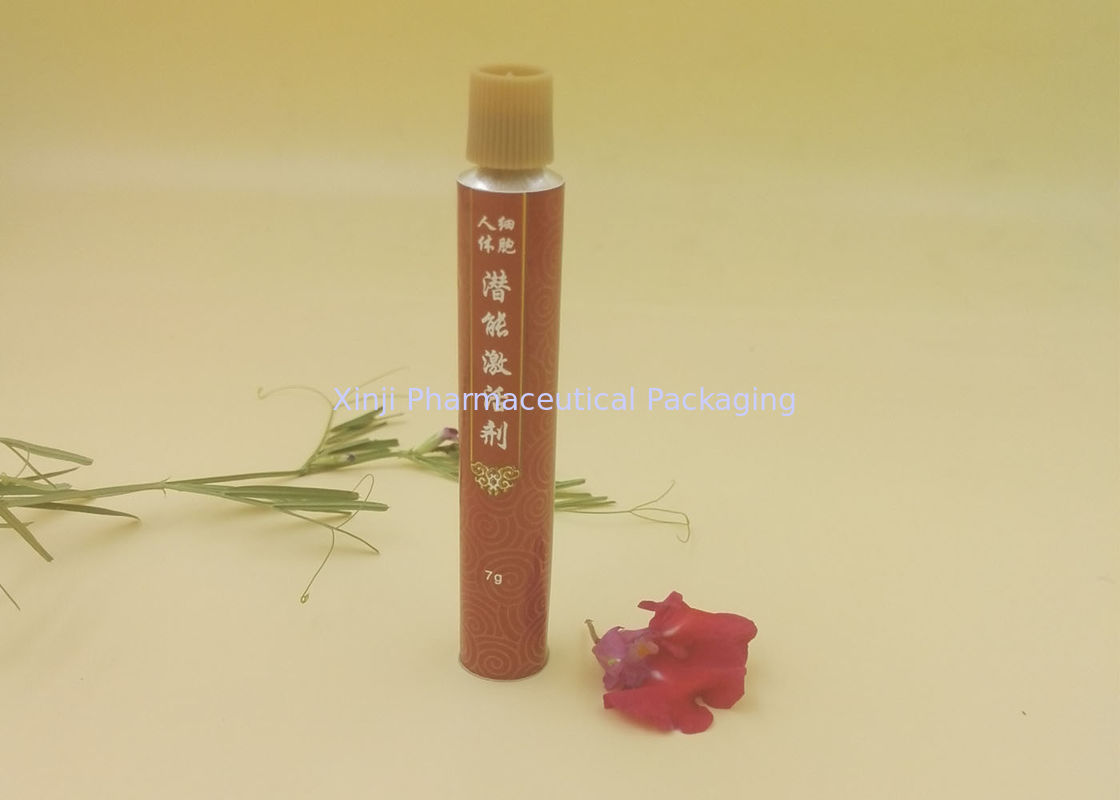

10g Medicine Pharma Tube , Collapsible Aluminum Ointment Packaging Tube
Quick Details:
Tube Size | Dia22mm* Length 130mm (length can customize) |
Tube Capacity | 20-35ml |
Aluminum Slug | Aluminum>99.7% pure. |
Color Ink | up to 6 colors printing (with your logo and design) |
Internal Lacquer | Epoxy Phenolic Resin |
External Base Coat | Type-Enamel; Color-White (can customize). |
Latex at the End | Optional. |
Nozzle | extended nozzle, extended plastic nozzle, etc. |
Cap | Color-white/red/blue/yellow; material-HPPE |
Sterile (Irradiation Service) | available, as per your requirement. |
1. CAP: Colour - white / red / blue, Type - Conual Piercer, Material: HPPE.
2. Aluminum Blamks: Aluminum>99.7% pure.
3. Internal Lacquer: Type-Expoxy-Phenolic Resin.
4. External Base Coat: Type-Enamel;Colour-White.
5. Colour Ink: Suplier-Shanghai DIC.
6. Crimp sealant brand: PPG.
7. Manufacturing Environment: The construction of 100000-ton cleaning production packing workshop.
8. Equipment: Germany PSG fully automatic production line.
9. The standard of Inspection: BS2006-86 Aluminum tube for medicine ointment.
10. Closing: Under an air pressure of 0.2Mpa, no leakage.
11. Appearance: Integrity and clean.
12. Coating: The color matches the standard,no exposure and no tiny oil droplets.
13. Color printing: Clear and entirety, the overprint is in position.
14. Flexibility and adhesion: The lacquer did not split off and no crazing.
15. Package: Wholeness and clean.
Standard Nozzle:
A. Plastic on-sert nozzle No.2 tube
B. Metric (V thread) open nozzle
C. Metric (V thread) sealed nozzle (membrane)
D. Extended Plastic Nozzle
E. Extended Nozzle
F. Plastic on-sert nozzle
Advantages:
1. Quality. All select superior raw material, with mature producing technology and high standard quality control and inspection system, we can greatly guarantee the quality.
2. Price. Factory direct sells, offering you the most competitive price!
3. Service. Quick response on quotation, sample and after-service.
4. Scale. Top 3 manfuacturer of aluminum collapsible tubes in whole China, with annual capacity of 300 million pcs.
5. Experience. Nearly 40 years' accumulated specialized producing experience in this field.
6. Production Lines. Full automatic production lines from Germany and Italy.
British Standard (BS2006-86):
British Standard of Aluminum Collapsible Tube BS2006-1984 | |||||||||
Sheet3 Size Standard | |||||||||
Diameter |
Tolerance of Diameter | Length |
Tolerance of Length | Nozzle |
Tube Wall Thickness | Shoulder Thickness | |||
Max | Min | Max | Min | Shoulder Angle Standard | |||||
mm | mm | mm | mm | mm | mm | mm | mm | ||
10 | ±0.1 |
60 | ±0.5 |
60 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ |
13.5 | 75 | 60 or 70 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ | ||
16 | 100 | 80 | 0.12 | 0.08 | 0.65 | 0.35 | 120℃ or 126℃ | ||
19 | 110 | 95 | 0.13 | 0.1 | 0.65 | 0.35 | 120℃ or 126℃ | ||
22 | 130 | 95 or 115 | 0.14 | 0.1 | 0.65 | 0.35 | |||
25 | 150 | 95 or 115 | 0.14 | 0.1 | 0.7 | 0.4 | No Standard | ||
28 | 165 | ±1.0 |
115 | 0.15 | 0.11 | 0.75 | 0.45 | ||
30 | 165 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
32 | 170 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
35 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
38 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
40 | 200 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
45 | ±0.25 | 200 | 115 or 135 | 0.18 | 0.12 | 0.9 | 0.5 |
