Meticulously manufacture, different for you.
Place of Origin: | China |
Brand Name: | Xinji |
Certification: | ISO, CFDA |
Model Number: | Dia 13.5mm - 40mm |
Minimum Order Quantity: | 50000 pcs |
---|---|
Packaging Details: | Packed in strong carton,suitable for long distance ocean transportation. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 300 millions pcs per year |
Material: | 99.7% Aluminum | Color: | Up To 6 Colors |
---|---|---|---|
Name: | Pet Hairball Solution Aluminum Tubes | Nozzles: | Open, Elongated, Sealed |
Thread: | M7 M9 M11 M15 | Factory Direct: | YES |

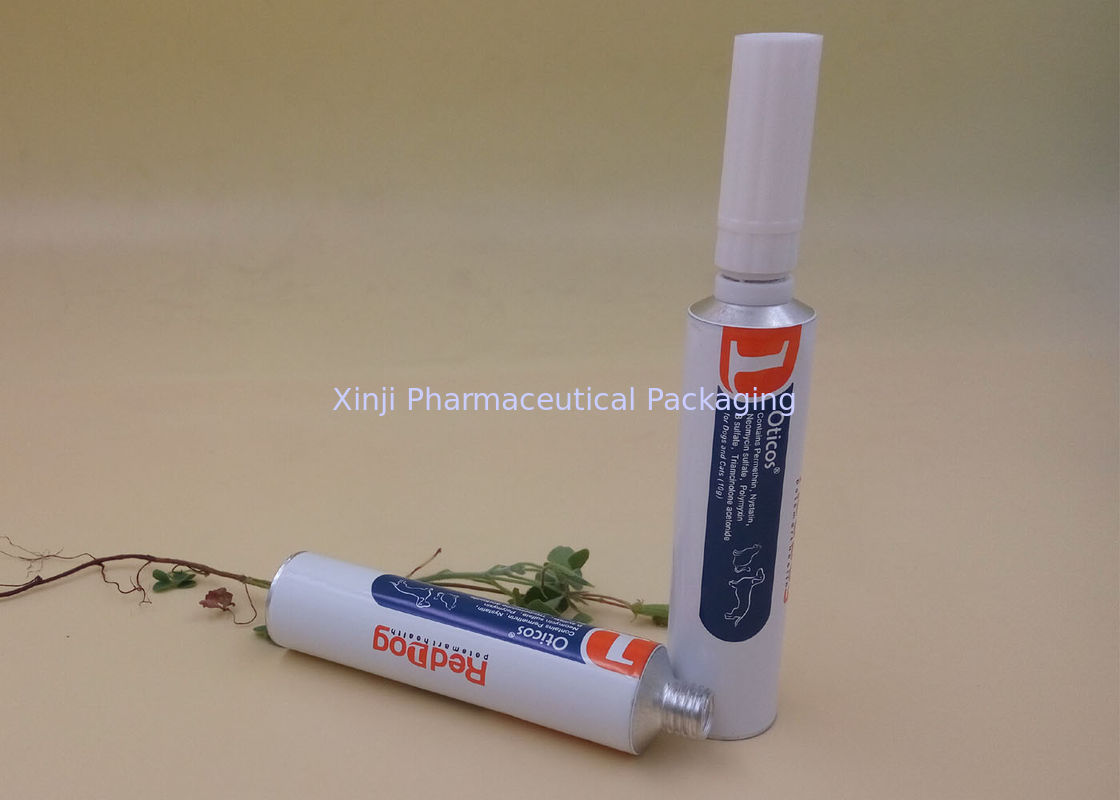

3 ml - 200 ml Empty Collapsible Aluminum Hair Remover Tube For Dog Hair Care Cream Packaging
Description:
1. Our Aluminum tubes are made of high quality aluminum for tube and high quality PP for cap. All materials are new and professional for pharmaceutical package use. We never use re-used materials. Inside the tube, it is coated with a layer of Epoxy phenol-formaldehyde resin. This resin is a stable layer to separate cream/ointment contacting aluminum directly.
2. The volume can be from 3ml to 200ml. The volume can be adjusted by choosing different diameter and differnt length of the tube. We can meet all sizes according to customer's requirement.
3. The diameter of the tube can be from 13.5mm to 40mm. This is subject to customer's choosing. Or we will suggest the size for customers.
4. Printing is offseting printing with max. 6 colors.
5. The normal screw cap,and special shape caps are available to select. The cap can also be with different colors.
6. The top is unbreaken dsealing.
7. The end of the tube is opened.
8. We can print and design according to your idea and artwork.
British Standard of Aluminum Collapsible Tube BS2006-1984 | |||||||||
Sheet3 Size Standard | |||||||||
Diameter |
Tolerance of Diameter | Length |
Tolerance of Length | Nozzle |
Tube Wall Thickness | Shoulder Thickness | |||
Max | Min | Max | Min | Shoulder Angle Standard | |||||
mm | mm | mm | mm | mm | mm | mm | mm | ||
10 | ±0.1 |
60 | ±0.5 |
60 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ |
13.5 | 75 | 60 or 70 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ | ||
16 | 100 | 80 | 0.12 | 0.08 | 0.65 | 0.35 | 120℃ or 126℃ | ||
19 | 110 | 95 | 0.13 | 0.1 | 0.65 | 0.35 | 120℃ or 126℃ | ||
22 | 130 | 95 or 115 | 0.14 | 0.1 | 0.65 | 0.35 | |||
25 | 150 | 95 or 115 | 0.14 | 0.1 | 0.7 | 0.4 | No Standard | ||
28 | 165 | ±1.0 |
115 | 0.15 | 0.11 | 0.75 | 0.45 | ||
30 | 165 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
32 | 170 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
35 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
38 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
40 | 200 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
45 | ±0.25 | 200 | 115 or 135 | 0.18 | 0.12 | 0.9 | 0.5 | ||
The Shoulder Angle need confirmed by manufacturer and purchaser, 90℃ shoulder angle normally used in extended nozzle |
Diameter | 13.5,16,19,22,25,28,30,32,35,38,40 mm |
Volume | 3ML-200ML |
Length | Customized |
Body | Custom printed |
Cap | Customized or provided by us |
Printing | offset printing |
Brand | OEM ODM Customized |
Payment&Shipping terms | |
MOQ | 50000 |
Payment | T/T, L/C at sight; |
Trade Term | FOB CIF CNF |
Shipping Port | Wuhan or Other |
Leading Time | 15-30days upon production |
Sample | Free (customer pay the courier fee) |
Enquiry: | Please provide Spe. Print ,Qty for an accurate quote |
Company Information | |
1. Nearly 40 years manufacturing experience | |
2. Professional Production line , QC staff to grantee the quality of products | |
3. Supplying tens of countries for over 120 distributors and Pharmaceutical factories | |
4. Production ability = 300million /Year | |
5. Trained sales staff: 24 hours quick response |
