Meticulously manufacture, different for you.
Place of Origin: | China |
Brand Name: | Xinji |
Certification: | ISO, CFDA |
Model Number: | Dia 13.5mm-Dia 40mm |
Minimum Order Quantity: | 50000 pcs |
---|---|
Packaging Details: | Packed in strong carton,suitable for long distance ocean transportation. |
Delivery Time: | 30 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 300 millions pcs per year |
Material: | Aluminum | Artwork: | Customized |
---|---|---|---|
Product Name: | Medicine Aluminum Gel Tube | Sealing Type: | Screw Cap |
Caps: | M7 | Feature: | 100% Recyclable |
Length: | Customized | ||
High Light: | tube cosmetic packaging,blank toothpaste tube |

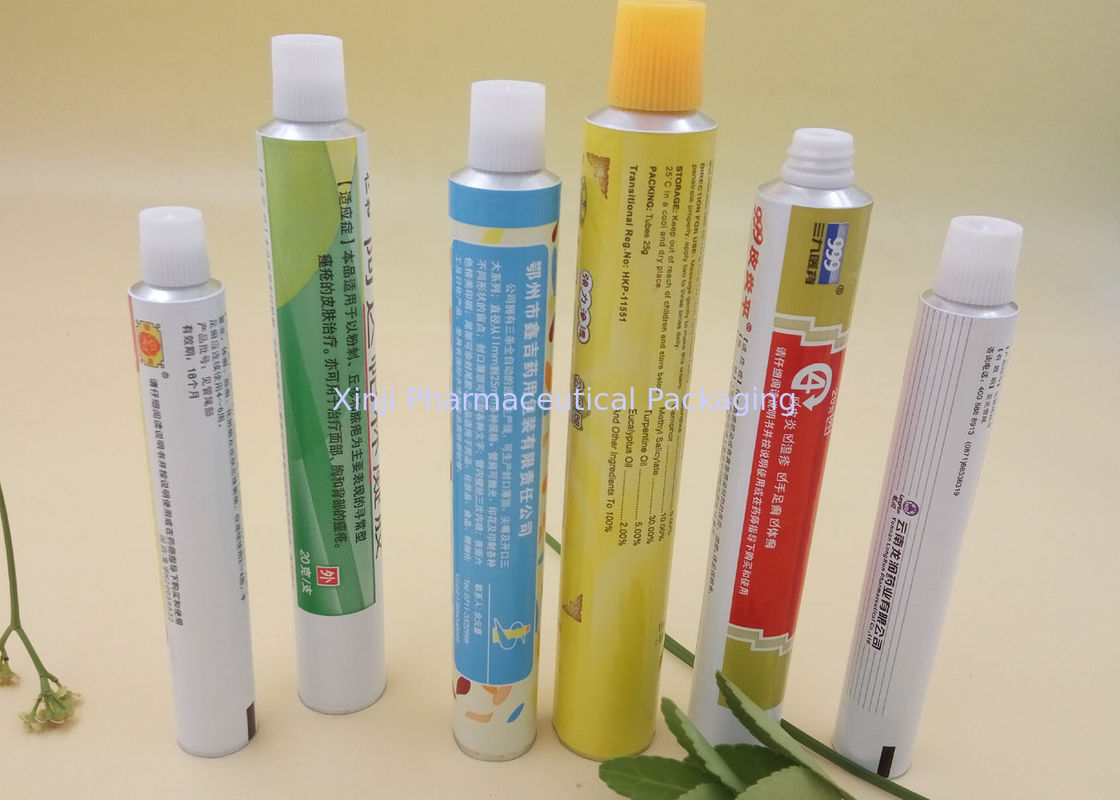

Medicine Aluminum Gel Tube , Metal Squeeze Tubes
Standard Nozzle:
A. Plastic on-sert nozzle No.2 tube
B. Metric (V thread) open nozzle
C. Metric (V thread) sealed nozzle (membrane)
D. Extended Plastic Nozzle
E. Extended Nozzle
F. Plastic on-sert nozzle
Tube Size | Dia16mm* Length 90mm (length can customize) |
Tube Capacity | 10g |
Aluminum Slug | Aluminum>99.7% pure. |
Color Ink | up to 6 colors printing (with your logo and design) |
Internal Lacquer | Epoxy Phenolic Resin |
External Base Coat | Type-Enamel; Color-White (can customize). |
Latex at the End | Optional. |
Nozzle | extended nozzle, extended plastic nozzle, etc. |
Cap | Color-white/red/blue/yellow; material-HPPE |
Standard | BS2006 |
British Standard of Aluminum Collapsible Tube BS2006-1984 | |||||||||
Sheet3 Size Standard | |||||||||
Diameter | Tolerance of Diameter | Length | Tolerance of Length | Nozzle | Tube Wall Thickness | Shoulder Thickness | |||
Max | Min | Max | Min | Shoulder Angle Standard | |||||
mm | mm | mm | mm | mm | mm | mm | mm | ||
10 | ±0.1 | 60 | ±0.5 | 60 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ |
13.5 | 75 | 60 or 70 | 0.11 | 0.07 | 0.5 | 0.3 | 90℃ or 120℃ or 126℃ | ||
16 | 100 | 80 | 0.12 | 0.08 | 0.65 | 0.35 | 120℃ or 126℃ | ||
19 | 110 | 95 | 0.13 | 0.1 | 0.65 | 0.35 | 120℃ or 126℃ | ||
22 | 130 | 95 or 115 | 0.14 | 0.1 | 0.65 | 0.35 | |||
25 | 150 | 95 or 115 | 0.14 | 0.1 | 0.7 | 0.4 | No Standard | ||
28 | 165 | ±1.0 | 115 | 0.15 | 0.11 | 0.75 | 0.45 | ||
30 | 165 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
32 | 170 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
35 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
38 | 185 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
40 | 200 | 115 | 0.16 | 0.11 | 0.75 | 0.45 | |||
45 | ±0.25 | 200 | 115 or 135 | 0.18 | 0.12 | 0.9 | 0.5 |
FAQ:
1. Are you trading company or manufacturer?
We are the 3rd largest manufacturer in this industry in China.
2. How to get samples?
Samples without customized printing are free.
Also we can customize samples with your design for your testing at local, but it will take some charges.
3. How long is your delivery time?
Generally it is within 30 days after we sign the contract and confirm the artwork.
4. What's your payment term?
T/T, L/C, Western Union, etc.
In the production of the collapsible, It's almost 500 degrees high temperature sterilizing.
Our workshops were built in according to the construction requirements of GMP in pharmaceutical
production. Our factory use clean central-station air handing units from internal coating to
packaging workshop to ensure our production environment reach 100n thousand grade standard.
The compressed air after strict purification treatment fully meet the production conditions
of direct contact with pharmaceutical packaging materials.
Quality control department is the special independent unit to ensure that meet customer needs in terms of quality, adopt international testing standards and methods, continue to upgrade testing equipment to maintain the accuracy of test results, establish a zero-defect quality management philosophy: identification of customer needs correctly, to ensure adequate staff training, new product development, cjamhe control and product testing and quality.
Products details:
We introduced several sets of production lines from PSG of German and Technopack of Italy, and
equipped with technique of the mark one take on top sealed and tube shoulder, three take on internal coating, six colors printing and the latex at the end, etc which can meet requirements of kinds tube appearance for customers.
Company culture:
Business philosophy: Meticulously manufacture, different for you.
Quality policy: Make every aluminum tube trustworthy
Xinji core values: love, responsibility, change, happy
Packaging Way:
Contact Person: Ms. Echo
Tel: 0086-15871390717
